AOMO 3041 GE 10.6UM 7MM Modulator
The AOMO 3041 GE 10.6µm 7MM is a Germanium acousto-optic modulator designed for CO₂ and long-wave infrared laser systems where compact beam handling, low-reflection optics and water-cooled thermal stability are important.
Full Product Description- Stock Code:
- 97-03494-01
- Minimum Wavelength (nm):
- 10600
- Maximum Wavelength (nm):
- 10600
- Center Frequency (MHz):
- 40.68
Product description
The AOMO 3041 GE 10.6µm 7MM provides controlled modulation for long-wave infrared laser systems where reliable beam gating, optical switching and intensity control are required. Its Germanium interaction material supports efficient infrared beam interaction, making it well suited to CO₂ laser platforms and specialist infrared photonics applications.
This modulator is designed for systems that need compact beam handling without compromising optical throughput. G&H-manufactured anti-reflection coated optics help reduce surface losses, while compressional acoustic operation and water-cooled construction support stable performance in demanding industrial, scientific and OEM laser environments.
Key features
- Germanium acousto-optic modulator for long-wave infrared laser control
- Suitable for CO₂ laser and specialist infrared photonics applications
- Compact aperture supports controlled beam handling in space-conscious optical layouts
- G&H-manufactured anti-reflection coated optics help reduce unwanted optical losses
- High optical transmission helps preserve available laser power
- Compressional acoustic mode supports robust modulation performance
- Linear horizontal polarisation supports predictable optical system integration
- Water-cooled construction supports thermal stability and beam quality
- Designed for demanding optical power handling requirements
- Supports beam gating, optical switching and intensity modulation
- Supports clean diffracted beam control and practical beam separation
- BNC RF connection supports integration into laser control electronics
- Thermal switch provision supports system-level protection and monitoring
- Suitable for industrial laser processing, materials processing and infrared test systems
- Supports scientific laser platforms and OEM laser equipment
- Ideal for applications requiring compact, stable long-wave infrared beam control
Specifications
| Name | Value |
|---|---|
| Stock Code | 97-03494-01 |
| Model | AOMO 3041 GE 10.6UM 7MM |
| Spectral Region | LWIR |
| Minimum Wavelength (nm) | 10600 |
| Maximum Wavelength (nm) | 10600 |
| Separation Angle at Center Wavelength (mrad) | 78.4 |
| Center Frequency (MHz) | 40.68 |
| Rise Time (ns/mm) | 120 |
| Active Aperture Height (mm) | 7 |
| Active Aperture Length (mm) | 7 |
| Optical Material | Germanium |
| Acoustic Velocity (mm/µs) | 5.5 |
| Recommended RF Driver | HP041-125ADG-A10 |
(Values for Guidance Only - refer to datasheet where available)

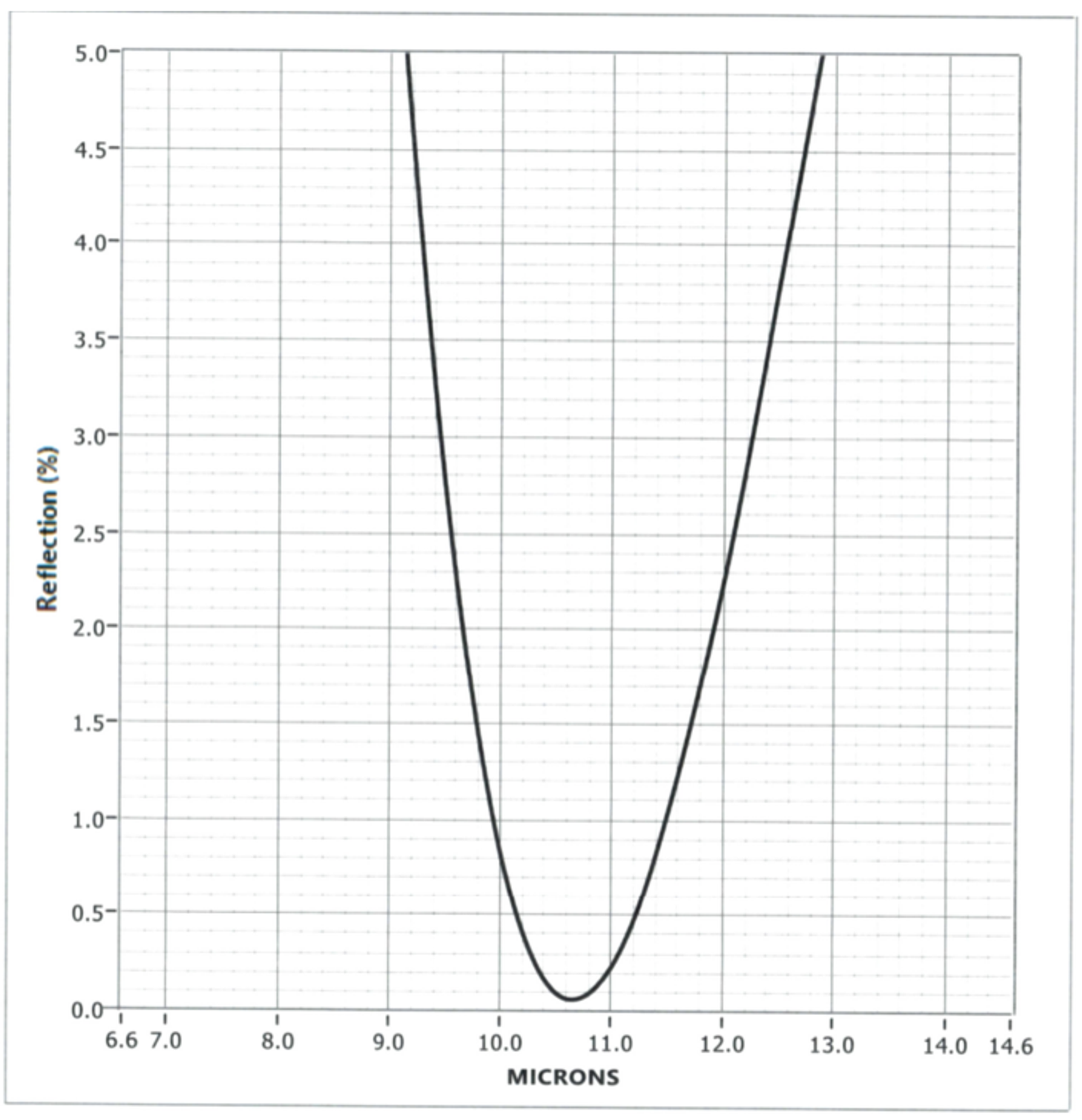

Example AR Coating Curve (Guidance only)
