AOMO 3041 GE 5.5UM 11.6MM Modulator
The AOMO 3041 GE 5.5µm 11.6MM is a Germanium acousto-optic modulator designed for LWIR laser systems where large beam handling, efficient optical transmission and stable water-cooled performance are key requirements.
Full Product Description- Stock Code:
- 97-03486-01
- Minimum Wavelength (nm):
- 5500
- Maximum Wavelength (nm):
- 5500
- Center Frequency (MHz):
- 40.68
Product description
The AOMO 3041 GE 5.5µm 11.6MM provides controlled modulation for LWIR laser systems where reliable beam gating, optical switching and intensity control are required. Its Germanium interaction material supports efficient infrared beam interaction, making it well suited to specialist laser platforms operating outside standard near-infrared or visible wavelengths.
This modulator is designed for applications that require stable optical throughput, low-reflection beam transmission and robust thermal management. Its compressional acoustic mode, large active aperture and water-cooled construction support use in Mid-IR spectroscopy, infrared sensing, scientific laser systems, optical test platforms and OEM instrumentation.
Key features
- Germanium acousto-optic modulator for LWIR laser control
- Designed for specialist infrared laser systems beyond visible and near-infrared operation
- Supports beam gating, optical switching and intensity modulation
- Germanium interaction material supports efficient LWIR beam interaction
- Large aperture supports broader infrared beam handling
- High optical transmission helps preserve available laser power
- Low-reflection AR coating helps reduce unwanted optical losses
- Compressional acoustic mode supports robust modulation performance
- Linear horizontal polarisation supports predictable optical integration
- Water-cooled construction supports thermal stability and beam quality
- Lower nominal RF power requirement than higher-power long-wave IR variants
- Supports clean diffracted beam control and practical beam separation
- Suitable for Mid-IR spectroscopy, infrared sensing and optical test platforms
- Supports scientific laser systems and specialist OEM instrumentation
- Ideal for applications requiring stable, repeatable Mid-IR beam control
Specifications
| Name | Value |
|---|---|
| Stock Code | 97-03486-01 |
| Model | AOMO 3041 GE 5.5UM 11.6MM |
| Spectral Region | LWIR |
| Minimum Wavelength (nm) | 5500 |
| Maximum Wavelength (nm) | 5500 |
| Separation Angle at Center Wavelength (mrad) | 40.7 |
| Center Frequency (MHz) | 40.68 |
| Rise Time (ns/mm) | 120 |
| Active Aperture Height (mm) | 11.6 |
| Active Aperture Length (mm) | 11.6 |
| Optical Material | Germanium |
| Acoustic Velocity (mm/µs) | 5.5 |

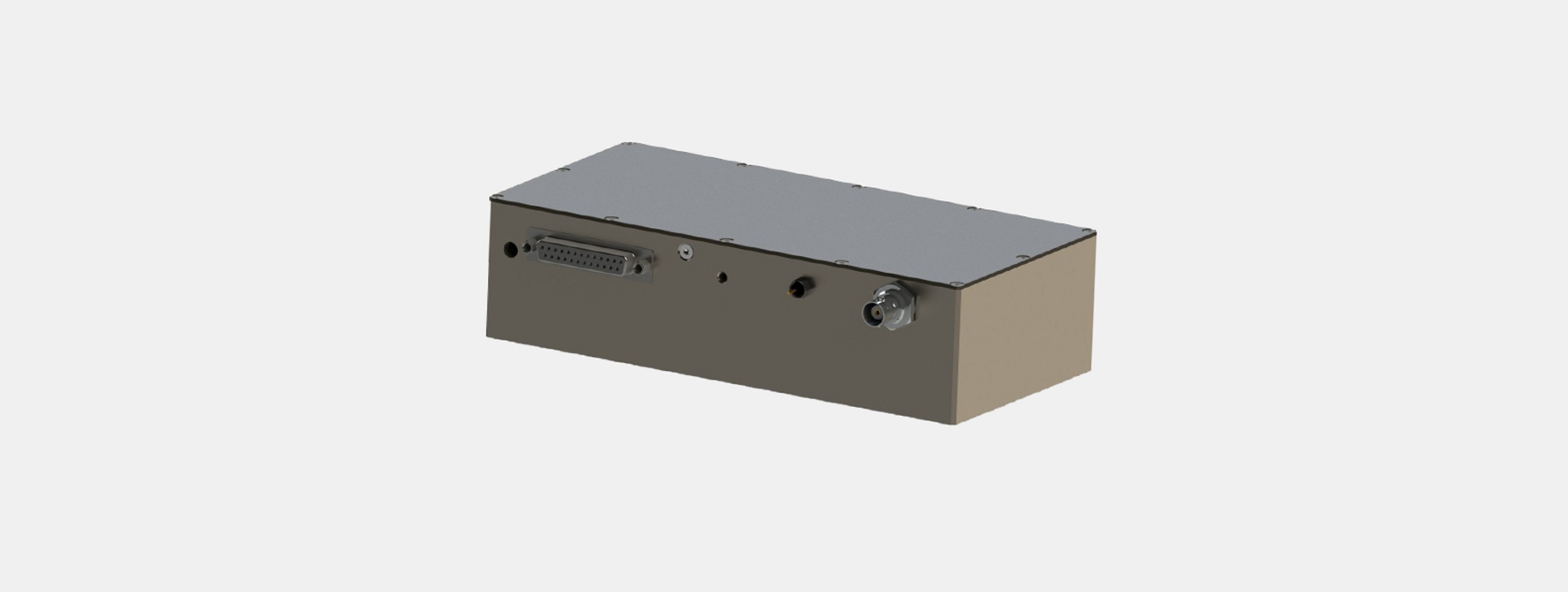

| Recommended RF Driver | HP041-125ADG-A10 |
(Values for Guidance Only - refer to datasheet where available)

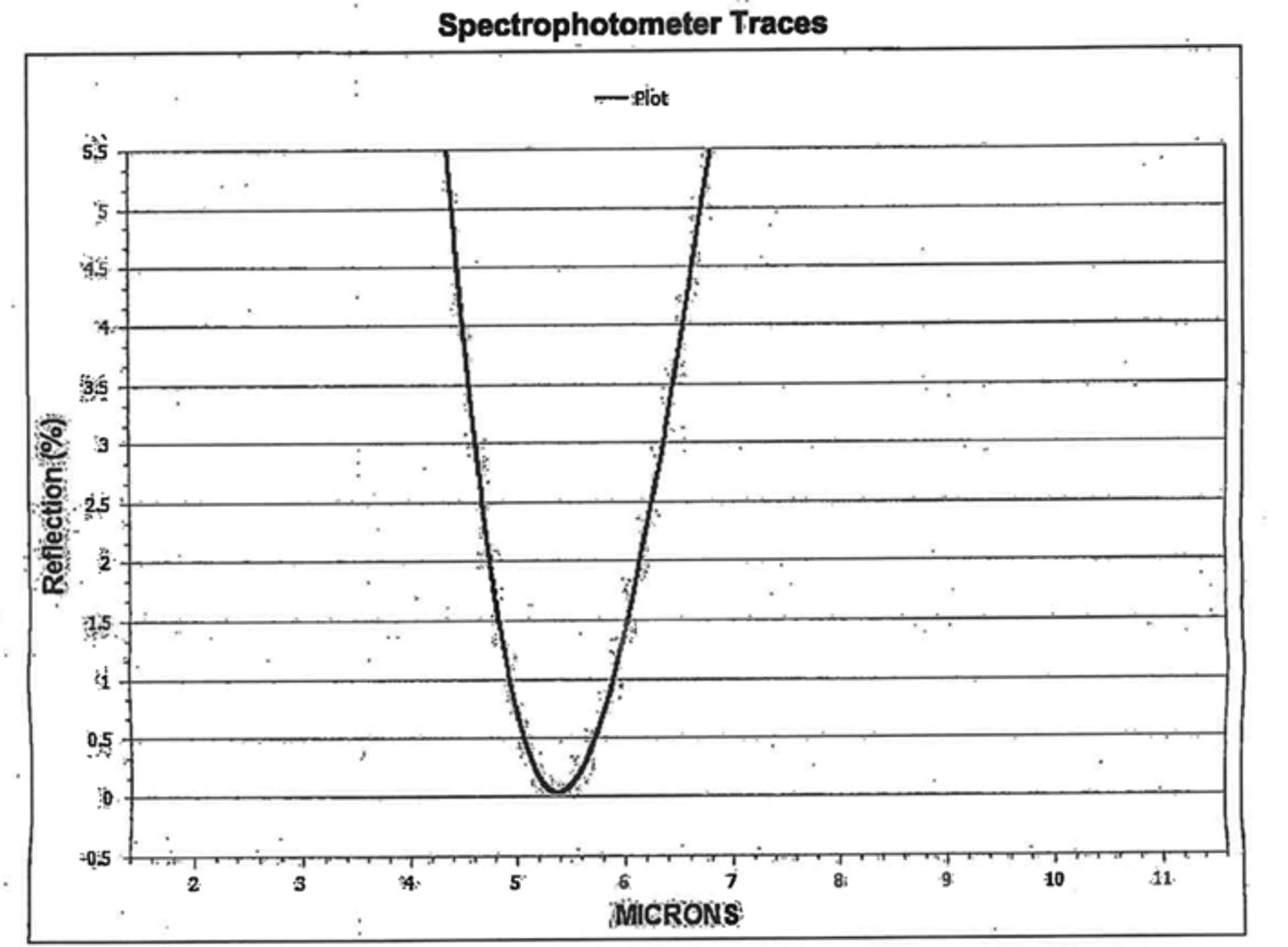

Example AR Coating Curve (Guidance only)
