AOMC 300-32 266NM Z AXIS
High-speed 32-channel acousto-optic modulator for precise parallel control of multiple 266 nm UV laser beams in advanced optical systems.
Full Product Description- Stock Code:
- 97-03482-01
- Minimum Wavelength (nm):
- 245
- Maximum Wavelength (nm):
- 280
- No. of Channels:
- 32
- Center Frequency (MHz):
- 300
- RF Bandwidth (MHz):
- 60
Product description
The G&H 32-Channel UV Acousto-Optic Modulator provides high-speed parallel modulation of multiple optical channels at 266 nm, enabling sophisticated control of UV laser beams within a single integrated device.
Designed using crystalline quartz acousto-optic technology, the modulator combines high diffraction efficiency, rapid response and low channel crosstalk with a high-density multi-channel architecture. It is particularly suited to high-throughput laser processing, precision micromachining and advanced industrial or scientific laser systems requiring simultaneous control of multiple beams.
Applications
- High-throughput multi-beam laser processing
- UV laser micromachining
- Parallel laser beam control
- Semiconductor and microelectronics processing
- Laser direct writing
- Precision materials processing
- Parallel microfabrication
- High-speed laser switching
- Laser power and intensity control
- Multi-beam optical systems
- Scientific laser instrumentation
- Parallel optical measurement systems
Key features
- 32-channel architecture for high-density parallel laser beam control
- Optimised for 266 nm UV laser operation
- High-speed optical modulation for rapid switching and intensity control
- Parallel multi-beam control for high-throughput optical and laser architectures
- Low channel-to-channel crosstalk to maintain effective separation between adjacent channels
- High diffraction efficiency for effective utilisation of available laser power
- Low optical insertion loss for efficient integration into UV laser systems
- Crystalline quartz acousto-optic technology suited to ultraviolet operation
- High optical damage resistance for demanding laser environments
- Fast optical response for applications requiring precise timing and synchronisation
- Integrated water cooling for effective thermal management during multi-channel operation
- Designed for advanced industrial and OEM laser systems requiring scalable parallel optical control
Specifications
| Name | Value |
|---|---|
| Stock Code | 97-03482-01 |
| Model | AOMC 300-32 266NM Z AXIS |
| Spectral Region | UV |
| Minimum Wavelength (nm) | 245 |
| Maximum Wavelength (nm) | 280 |
| No. of Channels | 32 |
| Center Frequency (MHz) | 300 |
| RF Bandwidth (MHz) | 60 |
| Rise Time (ns/mm) | 109 |
| Active Aperture Height (mm) | 0.24 |
| Active Aperture Length (mm) | 0.24 |
| Optical Material | Crystal Quartz |
| Acoustic Velocity (mm/µs) | 6.32 |
| RF Power Per Channel (W) | 2 |
| Recommended RF Driver | MC Series |
(Values for Guidance Only - refer to datasheet where available)

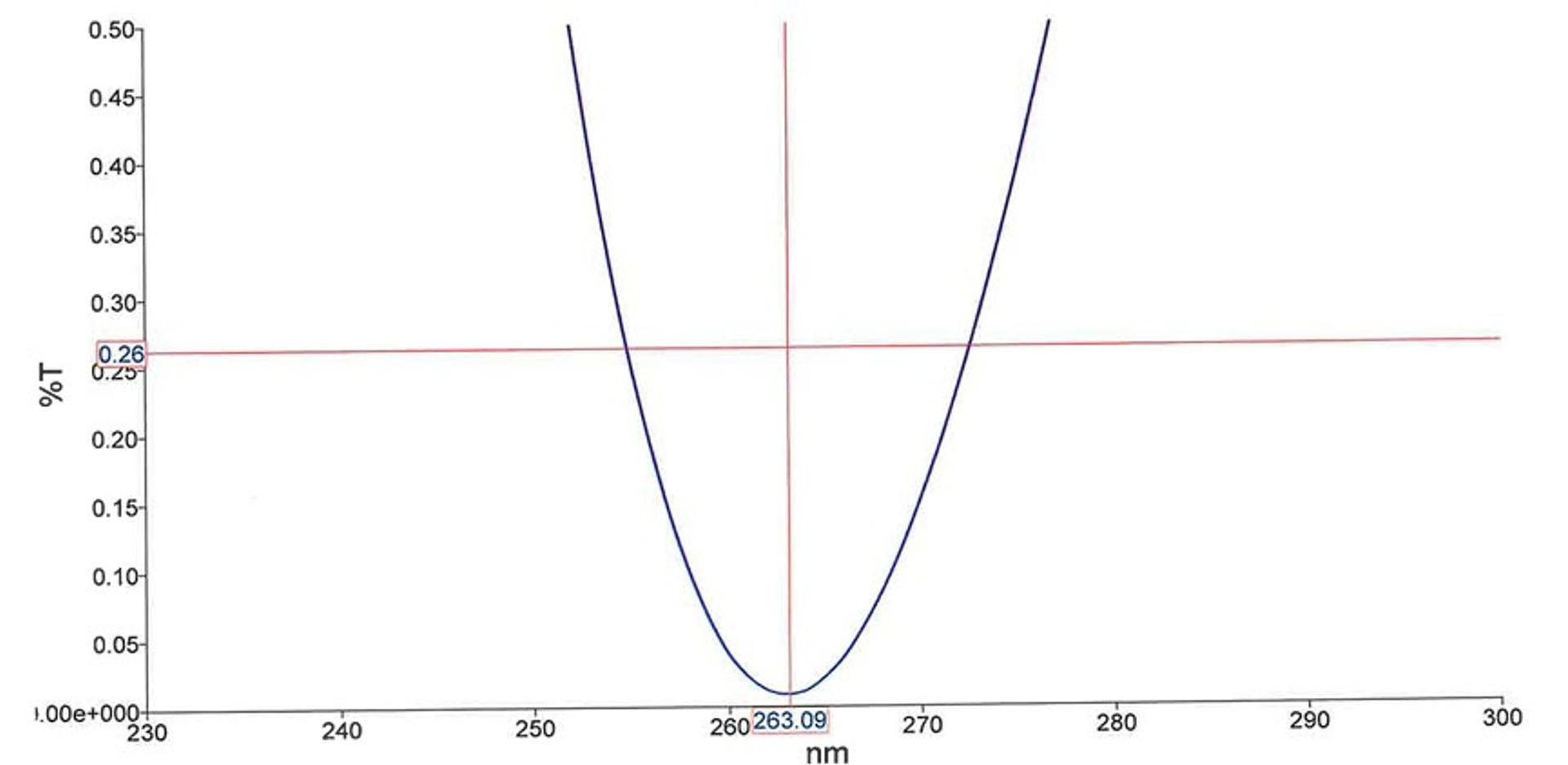

Example AR Coating Curve (Guidance only)
