AOMC MC220-11, SMC ROHS
High-speed 11-channel acousto-optic modulator for precise parallel control of multiple 413 nm laser beams.
Full Product Description- Stock Code:
- 97-02898-52
- Minimum Wavelength (nm):
- 380
- Maximum Wavelength (nm):
- 460
- No. of Channels:
- 11
- Center Frequency (MHz):
- 220
- RF Bandwidth (MHz):
- 60
Product description
The G&H MC220-11 is an 11-channel acousto-optic modulator designed for fast, precise parallel control of multiple laser beams at 413 nm.
Using crystalline quartz acousto-optic technology, the device combines rapid optical response, efficient diffraction and low channel crosstalk within an integrated multi-channel architecture. Water-cooled thermal management supports reliable simultaneous operation, making it well suited to advanced laser processing, parallel optical systems and scientific or OEM instrumentation.
Applications
- Multi-beam laser processing
- Parallel laser beam control
- Laser direct writing and patterning
- Precision materials processing
- High-speed laser switching
- Laser power and intensity control
- Parallel optical illumination
- Scientific laser instrumentation
- Optical measurement and analysis
- Imaging and inspection systems
- Fluorescence and bioimaging instrumentation
Key features
- 11-channel architecture for parallel laser beam control
- Optimised for 413 nm laser operation
- High-speed optical modulation for rapid switching and intensity control
- Parallel multi-beam capability for scalable optical and laser architectures
- Low channel-to-channel crosstalk to maintain independent control of neighbouring beams
- Efficient diffraction performance for effective utilisation of available laser power
- Low optical insertion loss for efficient system integration
- Crystalline quartz acousto-optic technology for precise optical modulation
- High optical damage resistance for demanding laser environments
- Fast optical response for precise timing and synchronisation
- Integrated water cooling for reliable simultaneous multi-channel operation
- Compact multi-channel architecture to simplify complex optical systems
- Designed for industrial, OEM and scientific laser systems requiring parallel 413 nm beam control
Specifications
| Name | Value |
|---|---|
| Stock Code | 97-02898-52 |
| Model | AOMC MC220-11, SMC ROHS |
| Spectral Region | Visible |
| Minimum Wavelength (nm) | 380 |
| Maximum Wavelength (nm) | 460 |
| No. of Channels | 11 |
| Center Frequency (MHz) | 220 |
| RF Bandwidth (MHz) | 60 |
| Rise Time (ns/mm) | 114 |
| Active Aperture Height (mm) | 0.24 |
| Active Aperture Length (mm) | 0.5 |
| Optical Material | Crystal Quartz |
| Acoustic Velocity (mm/µs) | 5.74 |
| RF Power Per Channel (W) | 2.5 |
| Recommended RF Driver | MC Series |
(Values for Guidance Only - refer to datasheet where available)

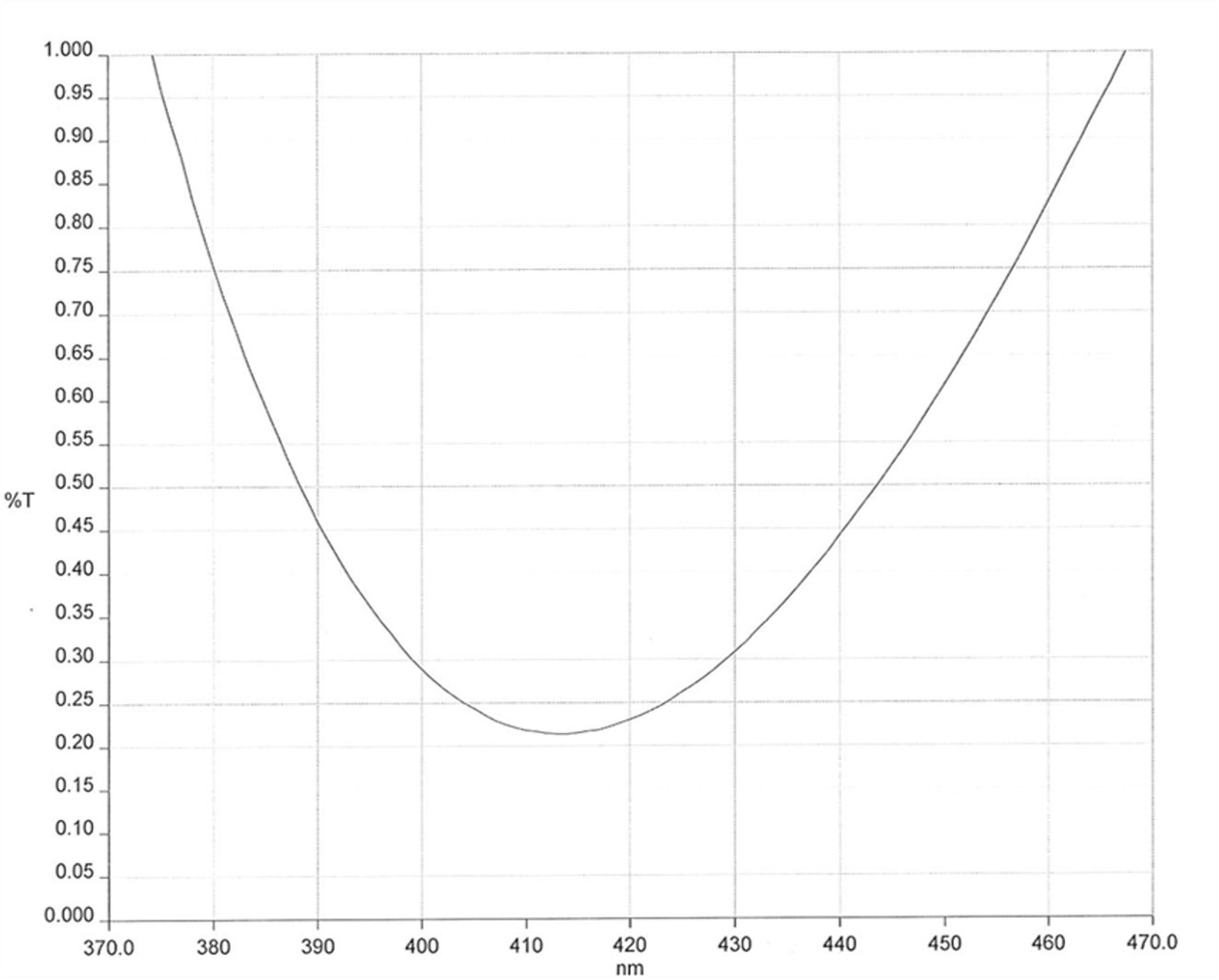

Example AR Coating Curve (Guidance only)
