AOMC MC250-16 355NM ROHS
High-speed 16-channel UV acousto-optic modulator for precise parallel control of multiple 355 nm laser beams in advanced optical systems.
Full Product Description- Stock Code:
- 97-03472-01
- Minimum Wavelength (nm):
- 310
- Maximum Wavelength (nm):
- 410
- No. of Channels:
- 16
- Center Frequency (MHz):
- 250
- RF Bandwidth (MHz):
- 60
Product description
The G&H AOMC 250/16 is a 16-channel UV acousto-optic modulator designed for fast, precise parallel control of multiple laser beams at 355 nm.
Using crystalline quartz acousto-optic technology, the device combines rapid optical response, efficient diffraction and excellent channel isolation within a high-density multi-channel architecture. Integrated water cooling supports reliable simultaneous operation, making it particularly suited to high-throughput laser processing, precision micromachining and advanced industrial laser systems.
Applications
- High-throughput multi-beam laser processing
- UV laser micromachining
- Semiconductor and microelectronics processing
- Parallel laser beam control
- Laser direct writing and patterning
- Precision materials processing Parallel microfabrication
- High-speed laser switching
- Laser power and intensity control
- Multi-beam optical systems
- Scientific laser instrumentation
- Optical measurement and inspection
Key features
- 16-channel architecture for high-density parallel laser beam control
- Optimised for 355 nm UV laser operation
- High-speed optical modulation for rapid beam switching and intensity control
- Excellent channel isolation to minimise interaction between neighbouring optical channels
- Parallel multi-beam capability for high-throughput laser and optical architectures
- Efficient diffraction performance for effective utilisation of available laser power
- Low optical insertion loss for efficient integration into UV laser systems
- Crystalline quartz acousto-optic technology suited to ultraviolet operation
- Fast optical response for precise timing and synchronisation
- Integrated water cooling for effective thermal management during simultaneous channel operation
- High-density multi-channel design to simplify complex parallel optical architectures
- Designed for industrial, OEM and scientific laser systems requiring scalable UV beam control
Specifications
| Name | Value |
|---|---|
| Stock Code | 97-03472-01 |
| Model | AOMC MC250-16 355NM ROHS |
| Spectral Region | UV |
| Minimum Wavelength (nm) | 310 |
| Maximum Wavelength (nm) | 410 |
| No. of Channels | 16 |
| Center Frequency (MHz) | 250 |
| RF Bandwidth (MHz) | 60 |
| Rise Time (ns/mm) | 100 |
| Active Aperture Height (mm) | 0.24 |
| Active Aperture Length (mm) | 0.5 |
| Optical Material | Crystal Quartz |
| Acoustic Velocity (mm/µs) | 5.74 |
| RF Power Per Channel (W) | 2 |
| Recommended RF Driver | MC Series |
(Values for Guidance Only - refer to datasheet where available)

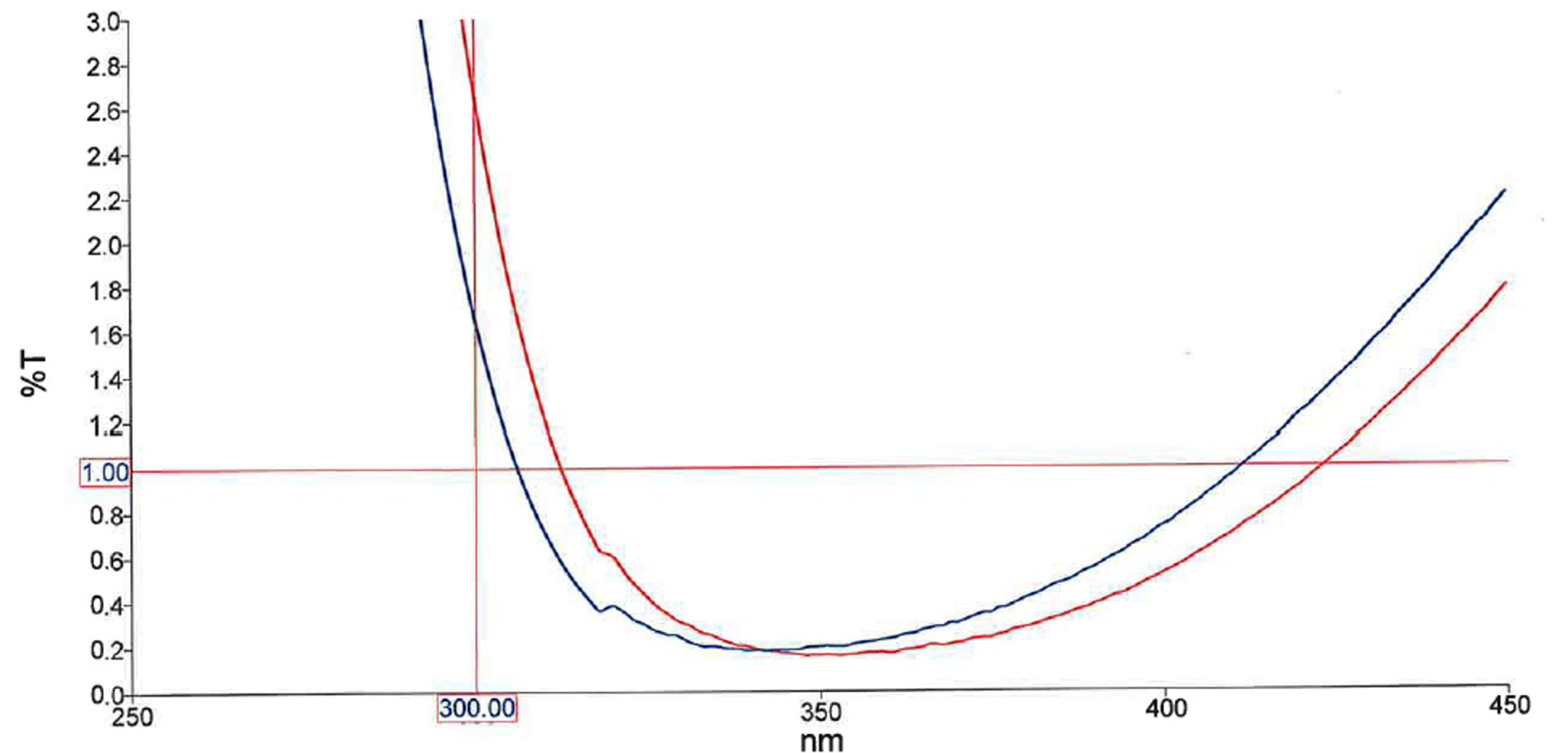

Example AR Coating Curve (Guidance only)
