AOMC MC250-8 355NM ROHS
8-channel UV acousto-optic modulator providing fast, precise parallel control of multiple 355 nm laser beams for demanding optical systems.
Full Product Description- Stock Code:
- 97-03470-01
- Minimum Wavelength (nm):
- 310
- Maximum Wavelength (nm):
- 410
- No. of Channels:
- 8
- Center Frequency (MHz):
- 250
- RF Bandwidth (MHz):
- 60
Product description
The G&H AOMC 250/8 is an eight-channel UV acousto-optic modulator designed for fast and precise parallel control of multiple laser beams at 355 nm.
Using crystalline quartz acousto-optic technology, the device combines rapid optical response, efficient diffraction and low channel crosstalk within an integrated multi-channel architecture. Water-cooled thermal management supports reliable simultaneous operation, making the modulator particularly suited to high-throughput laser processing, precision micromachining and advanced industrial or scientific laser systems.
Applications
- Multi-beam UV laser processing
- UV laser micromachining
- High-throughput laser processing
- Semiconductor and microelectronics processing
- Laser direct writing and patterning
- Precision materials processing
- Parallel laser beam control
- High-speed laser switching
- Laser power and intensity control
- Multi-beam optical systems
- Scientific laser instrumentation
- Optical measurement and inspection
Key features
- Eight-channel architecture for parallel laser beam control
- Optimised for 355 nm UV laser operation
- High-speed optical modulation for rapid beam switching and intensity control
- Parallel multi-beam capability for higher-throughput optical and laser systems
- Low channel-to-channel crosstalk to maintain effective separation between neighbouring channels
- Efficient diffraction performance for effective utilisation of available laser power
- Low optical insertion loss for efficient integration into UV laser systems
- Crystalline quartz acousto-optic technology suited to ultraviolet operation
- Fast optical response for precise timing and synchronisation
- Integrated water cooling for effective thermal management during simultaneous channel operation
- Compact multi-channel architecture to simplify complex parallel optical systems
- Designed for industrial, OEM and scientific laser applications requiring reliable multi-channel UV control
Specifications
| Name | Value |
|---|---|
| Stock Code | 97-03470-01 |
| Model | AOMC MC250-8 355NM ROHS |
| Spectral Region | UV |
| Minimum Wavelength (nm) | 310 |
| Maximum Wavelength (nm) | 410 |
| No. of Channels | 8 |
| Center Frequency (MHz) | 250 |
| RF Bandwidth (MHz) | 60 |
| Rise Time (ns/mm) | 100 |
| Active Aperture Height (mm) | 0.24 |
| Active Aperture Length (mm) | 0.5 |
| Optical Material | Crystal Quartz |
| Acoustic Velocity (mm/µs) | 5.74 |
| RF Power Per Channel (W) | 2 |
| Recommended RF Driver | MC Series |
(Values for Guidance Only - refer to datasheet where available)

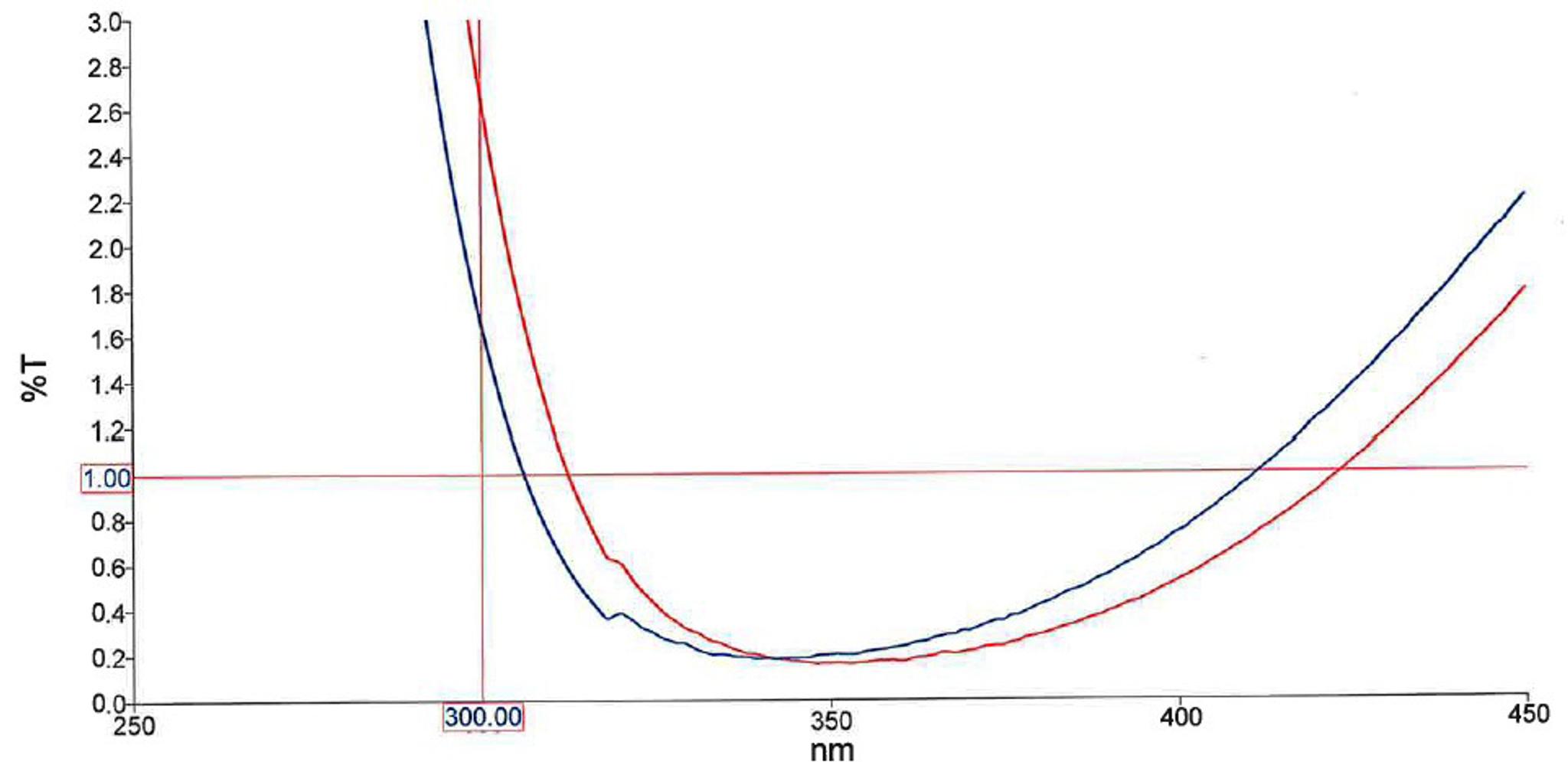

Example AR Coating Curve (Guidance only)
