AOMC MC300-15 266NM ROHS
High-speed 15-Channel UV Modulator providing fast, independent control of multiple 266 nm UV laser beams for advanced laser and optical systems.
Full Product Description- Stock Code:
- 97-03408-01
- Minimum Wavelength (nm):
- 245
- Maximum Wavelength (nm):
- 280
- No. of Channels:
- 15
- Center Frequency (MHz):
- 300
- RF Bandwidth (MHz):
- 60
Product description
The G&H 15-Channel UV Acousto-Optic Modulator provides fast, independent optical control across multiple parallel channels at 266 nm.
Designed around crystalline quartz acousto-optic technology, the device combines high diffraction efficiency, rapid response and low channel crosstalk to support precise modulation of multiple UV laser beams within a single integrated component. Its multi-channel architecture is particularly suited to high-throughput laser processing, parallel beam control and advanced scientific and industrial laser systems.
Applications
- Multi-beam laser processing
- UV laser micromachining
- Semiconductor and microelectronics processing
- Parallel laser beam control
- Laser direct writing
- Precision materials processing
- Multi-beam optical systems
- Scientific laser instrumentation
- High-speed laser switching
- Laser power and intensity control
- Parallel optical measurement systems
Key features
- 15 independently addressable optical channels for parallel laser beam control
- Optimised for 266 nm UV laser operationHigh-speed optical modulation for rapid beam switching and intensity control
- Low channel-to-channel crosstalk to maintain independent control of adjacent optical channels
- High diffraction efficiency for effective utilisation of available laser power
- Low optical insertion loss to support efficient laser system performance
- Crystalline quartz acousto-optic technology suited to ultraviolet operation
- Parallel multi-beam architecture for integration into sophisticated laser systems
- First-order acousto-optic operation for predictable beam control
- Integrated water cooling for effective thermal management during multi-channel operation
- High optical damage resistance for demanding UV laser environments
- Designed for high-performance OEM and industrial laser systems
Specifications
| Name | Value |
|---|---|
| Stock Code | 97-03408-01 |
| Model | AOMC MC300-15 266NM ROHS |
| Spectral Region | UV |
| Minimum Wavelength (nm) | 245 |
| Maximum Wavelength (nm) | 280 |
| No. of Channels | 15 |
| Center Frequency (MHz) | 300 |
| RF Bandwidth (MHz) | 60 |
| Rise Time (ns/mm) | 109 |
| Active Aperture Height (mm) | 0.24 |
| Active Aperture Length (mm) | 0.24 |
| Optical Material | Crystal Quartz |
| Acoustic Velocity (mm/µs) | 6.32 |
| RF Power Per Channel (W) | 2 |
| Recommended RF Driver | MC Series |
(Values for Guidance Only - refer to datasheet where available)

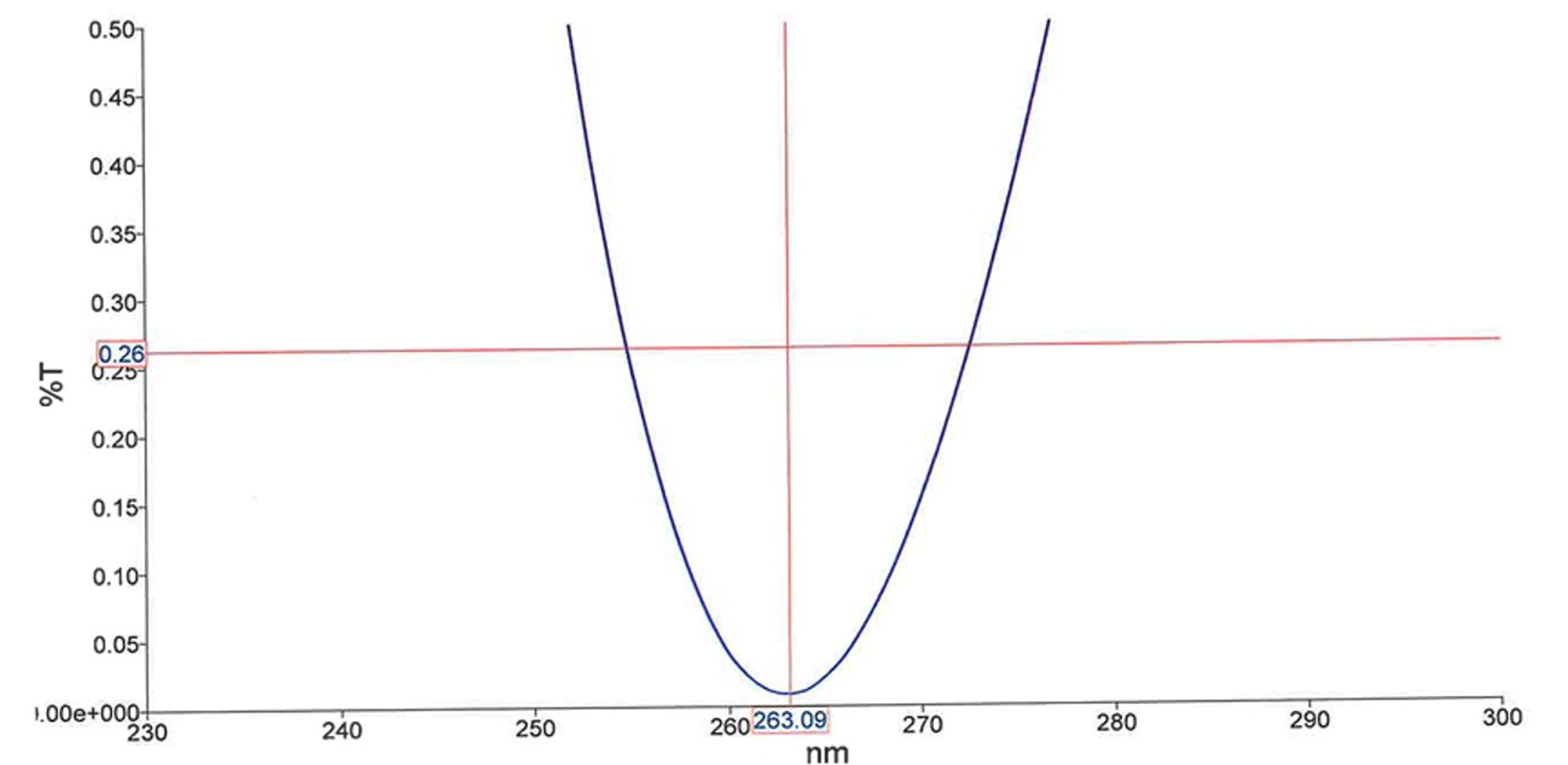

Example AR Coating Curve (Guidance only)
