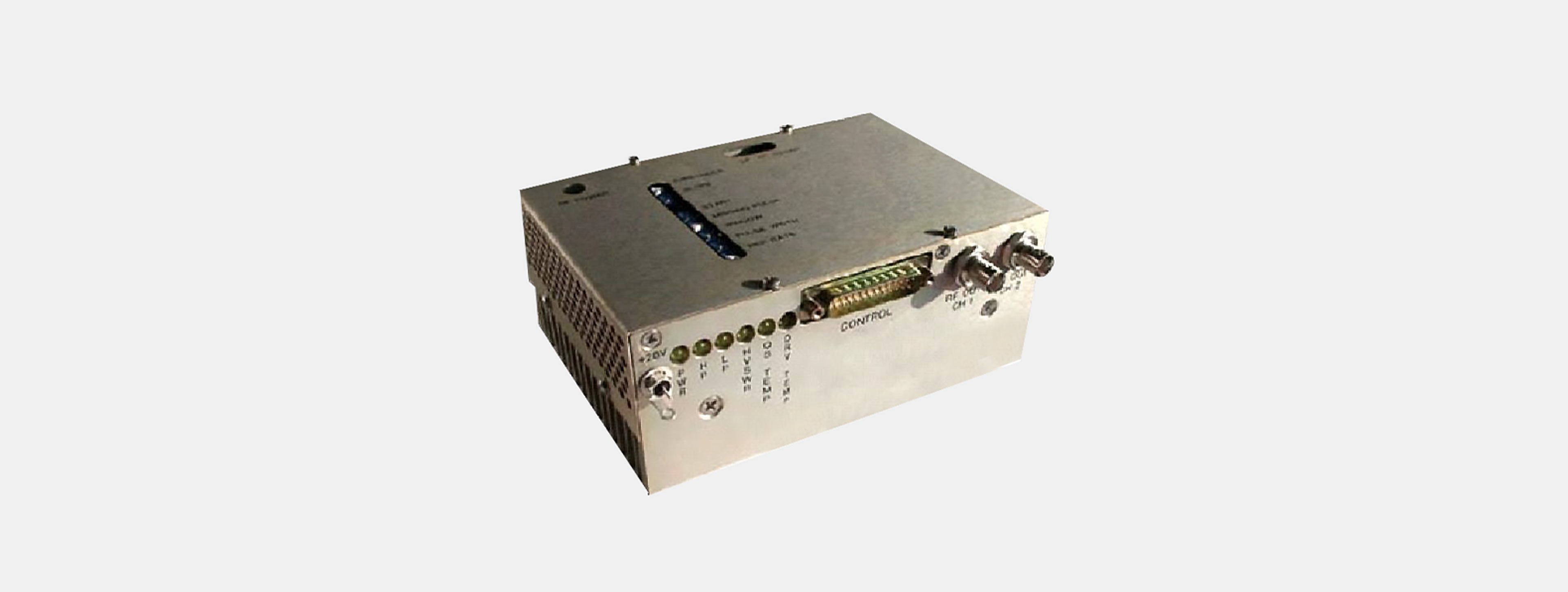

MQH RF Driver MQH024-50DM-FPS-2S
MQH Series RF driver for compatible acousto-optic Q-switches, supporting controlled pulsed laser operation with configuration-dependent modulation and power control options.
Full Product Description- Stock Code:
- 400206-0017
- RF Frequency Min (MHz):
- 24
- RF Frequency Max (MHz):
- 24
- RF Power Per Channel (W):
- 50
- No. of RF Output Channels:
- 2
- AO Compatibility:
- AOQS
Product description
The G&H MQH Series provides robust RF drive for compatible acousto-optic Q-switches used in pulsed laser systems. Typical applications include materials processing, scientific instrumentation and OEM laser platforms requiring repeatable optical switching and pulse management. The family offers a choice of product configurations to support different AO devices and system architectures. Refer to the datasheet and product specifications on this page for the current operating parameters and configuration of this model.
Key features
- RF drive for compatible acousto-optic Q-switches
- Fixed or variable pulse width digital modulation
- Adjustable RF output power
- Configuration-dependent analog control and pulse suppression modes
- Quartz-stabilised RF frequency
- Forced air cooling required
- Acousto-optic Q-switching
- Pulsed laser generation
- Laser pulse control
- First pulse suppression with appropriately configured variants
Specifications
| Name | Value |
|---|---|
| Stock Code | 400206-0017 |
| Model | MQH024-50DM-FPS-2S |
| Frequency Control | Fixed |
| RF Frequency Min (MHz) | 24 |
| RF Frequency Max (MHz) | 24 |
| RF Power Per Channel (W) | 50 |
| No. of RF Output Channels | 2 |
| Pulse Control Mode | FPS |
| Supply Voltage (V) | 28 |
| Cooling | Forced Air |
| AO Compatibility | AOQS |
(Values for Guidance Only - refer to datasheet where available)
