AOTF 2986-03 PCAOM V- POL NIR 35-70MH
For use in the 800–1400 nm wavelength range with an active aperture of 2.5 mm and an RF bandwidth of 32 MHz.
Full Product Description- Stock Code:
- 97-02986-03
- Minimum Wavelength (nm):
- 800
- Maximum Wavelength (nm):
- 1400
- Center Frequency (MHz):
- 54
- RF Bandwidth (MHz):
- 32
Product description
An acousto-optic tunable filter for use in the 800-1400 nm wavelength range. This tunable filter is made from Tellurium Dioxide (TeO2), has an active aperture of 2.5 mm and an RF bandwidth of 32 MHz.
Patented side lobe suppression technology provides excellent out-of-band suppression. Combining optimum grade Tellurium Dioxide, high-quality optical finishing, high-grade anti-reflection coatings, with novel acoustic management and optomechanical design techniques, our tunable filters achieve exceptional thermal management while maintaining superior beam quality and high optical throughput.
Key features
- Excellent out-of-band suppression
- High Damage Threshold
- Improved thermal management
- Superior beam quality
- Near-infrared wavelength selection from 800-1400 nm
- Simultaneous diffraction and multi-frequency capability
- Fast random wavelength access time
- TeO₂ acousto-optic medium
- 2.5 mm active aperture
- High diffraction efficiency
- Designed for vertically polarised input and horizontally polarised output
- Suitable for NIR optical systems requiring agile wavelength control
Specifications
| Name | Value |
|---|---|
| Stock Code | 97-02986-03 |
| Model | AOTF 2986-03 |
| Spectral Region | Near IR |
| Minimum Wavelength (nm) | 800 |
| Maximum Wavelength (nm) | 1400 |
| Approx Res at Min Wavelength FWHM (nm) | 2.8 |
| Approx Res at Max Wavelength FWHM (nm) | 9.7 |
| Center Frequency (MHz) | 54 |
| RF Bandwidth (MHz) | 32 |
| Active Aperture Height (mm) | 2.5 |
| Active Aperture Length (mm) | 2.5 |
| Polarization | Vertical In / Horizontal Out |
| Optical Material | TeO₂ |
| Acoustic Velocity (mm/µs) | 0.68 |
| Recommended RF Driver | 97-03926-14 |
(Values for Guidance Only - refer to datasheet where available)

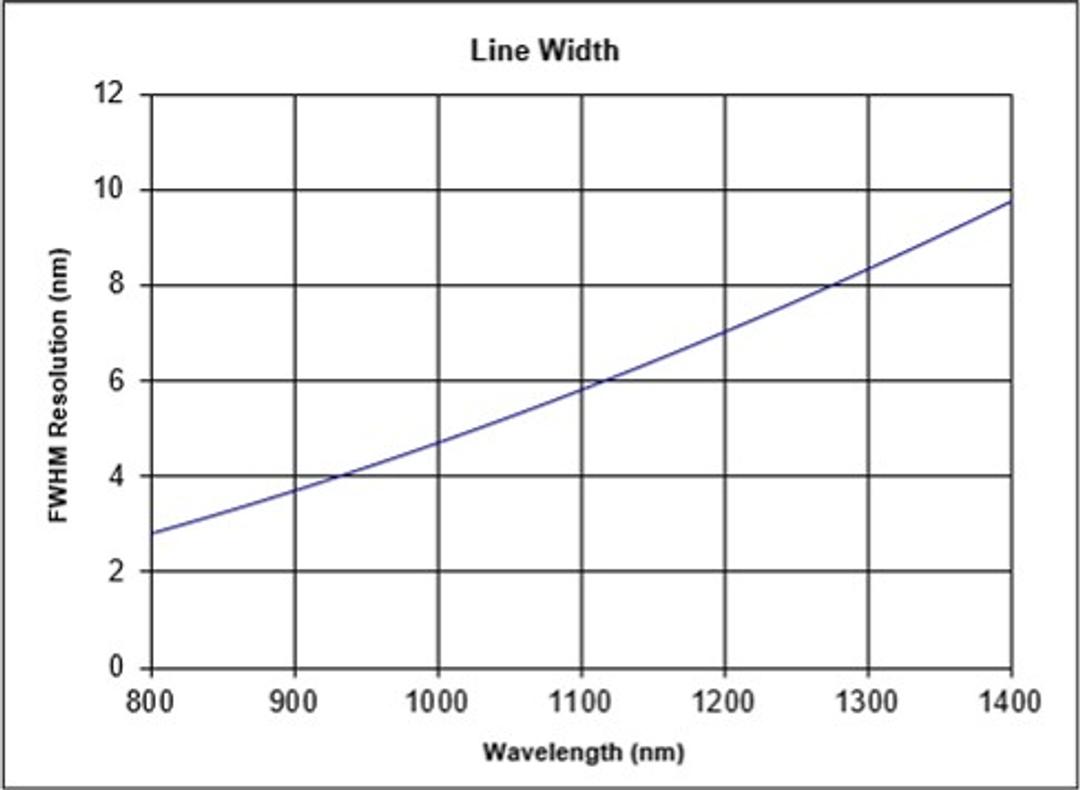

Example Resolution Curve (Guidance only)

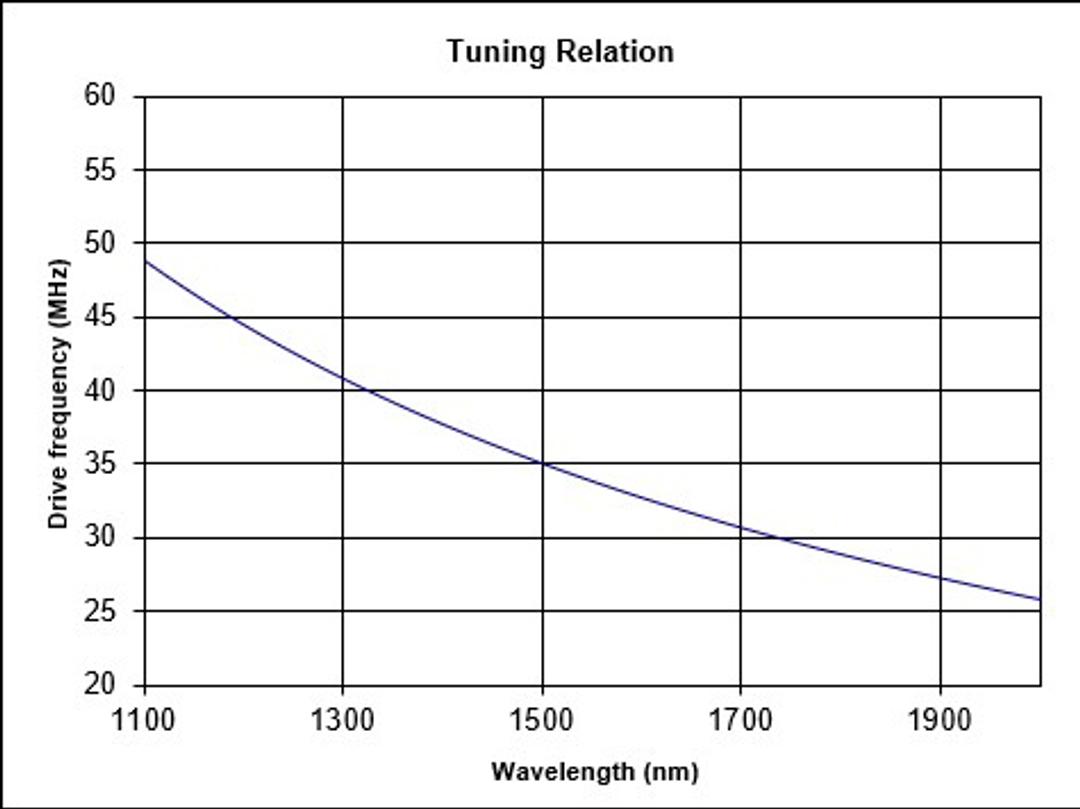

Example Tuning Curve (Guidance only)
