AOTF 3309-01 PCAOM NIR 65-125MHZ
High-efficiency acousto-optic tunable filter providing rapid electronic wavelength selection and flexible multi-wavelength control across 500–850 nm.
Full Product Description- Stock Code:
- 97-03309-01
- Minimum Wavelength (nm):
- 500
- Maximum Wavelength (nm):
- 850
- Center Frequency (MHz):
- 95
- RF Bandwidth (MHz):
- 60
Product description
The G&H AOTF PCAOM 500–850 nm is an acousto-optic tunable filter designed for fast, precise wavelength selection and multi-wavelength optical control across the 500–850 nm spectral range.
Using a TeO₂ acousto-optic medium, it combines high diffraction efficiency and low optical loss with rapid wavelength access and simultaneous multi-frequency operation. Its broad spectral coverage makes it particularly suited to laser systems, fluorescence imaging, spectroscopy, spectral imaging and scientific instrumentation requiring flexible control across visible and near-infrared wavelengths.
Applications
- Multi-line laser wavelength selection
- Multi-wavelength laser control
- Laser wavelength switching
- Broadband laser spectral selection
- Fluorescence microscopy
- Confocal microscopy
- Bioimaging
- Laser spectroscopy
- Optical spectroscopy
- Multispectral imaging
- Hyperspectral imaging
- Scientific instrumentation
- Biomedical and analytical instrumentation
- Optical inspection and machine vision
Key features
- Broad 500–850 nm spectral coverage spanning visible and near-infrared wavelengths
- Rapid electronic wavelength selection without mechanically moving filter components
- Multi-frequency capability for flexible spectral control
- Simultaneous multi-wavelength operation for control of multiple optical channels
- High diffraction efficiency to maximise available optical signal
- Low optical insertion loss for efficient integration into demanding optical systems
- Fast random wavelength access for rapid spectral switching and sequencing
- TeO₂ acousto-optic technology for precise wavelength control
- Stable spectral performance for repeatable wavelength selection
- Controlled diffracted-beam alignment to support precision optical integration
- Defined optical polarisation characteristics for predictable system performance
- Suitable for multi-line and broadband optical sources requiring dynamic wavelength selection
Specifications
| Name | Value |
|---|---|
| Stock Code | 97-03309-01 |
| Model | AOTF 3309-01 |
| Spectral Region | Vis-Near IR |
| Minimum Wavelength (nm) | 500 |
| Maximum Wavelength (nm) | 850 |
| Approx Res at Min Wavelength FWHM (nm) | 3.2 |
| Approx Res at Max Wavelength FWHM (nm) | 13 |
| Center Frequency (MHz) | 95 |
| RF Bandwidth (MHz) | 60 |
| Active Aperture Height (mm) | 2.5 |
| Active Aperture Length (mm) | 2.5 |
| Polarization | Vertical In / Horizontal Out |
| Optical Material | TeO₂ |
| Acoustic Velocity (mm/µs) | 0.68 |
| Recommended RF Driver | 97-03926-14 |
(Values for Guidance Only - refer to datasheet where available)

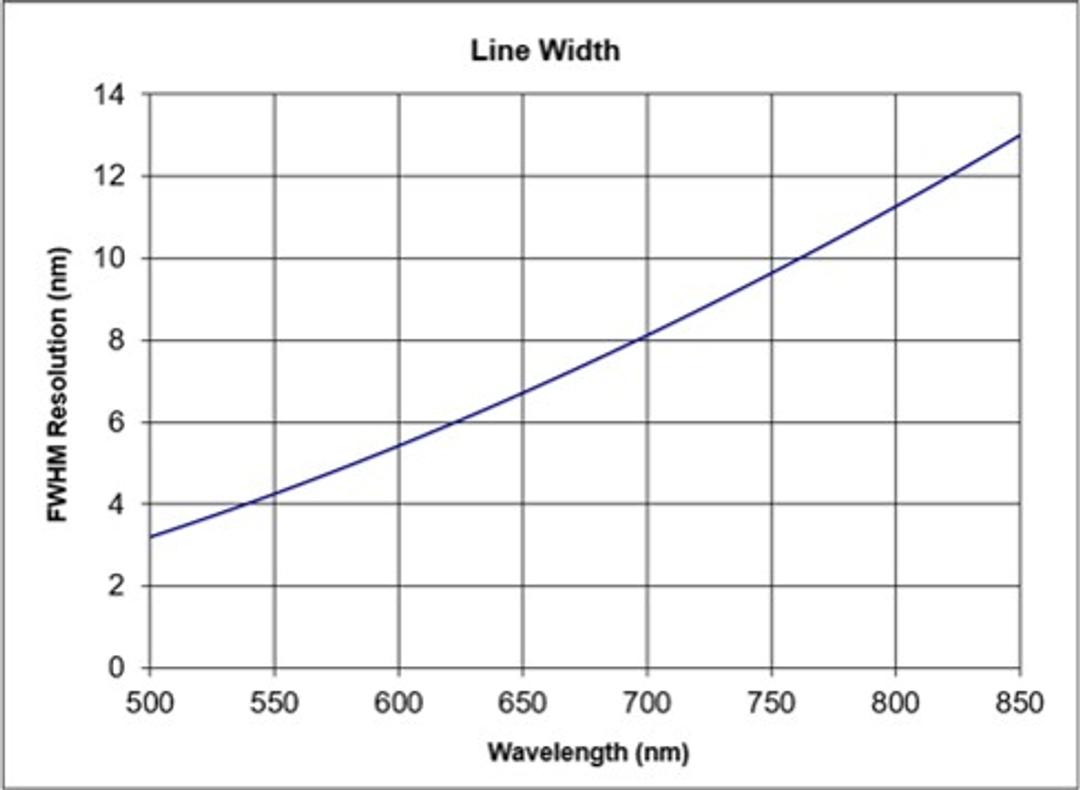

Example Resolution Curve (Guidance only)

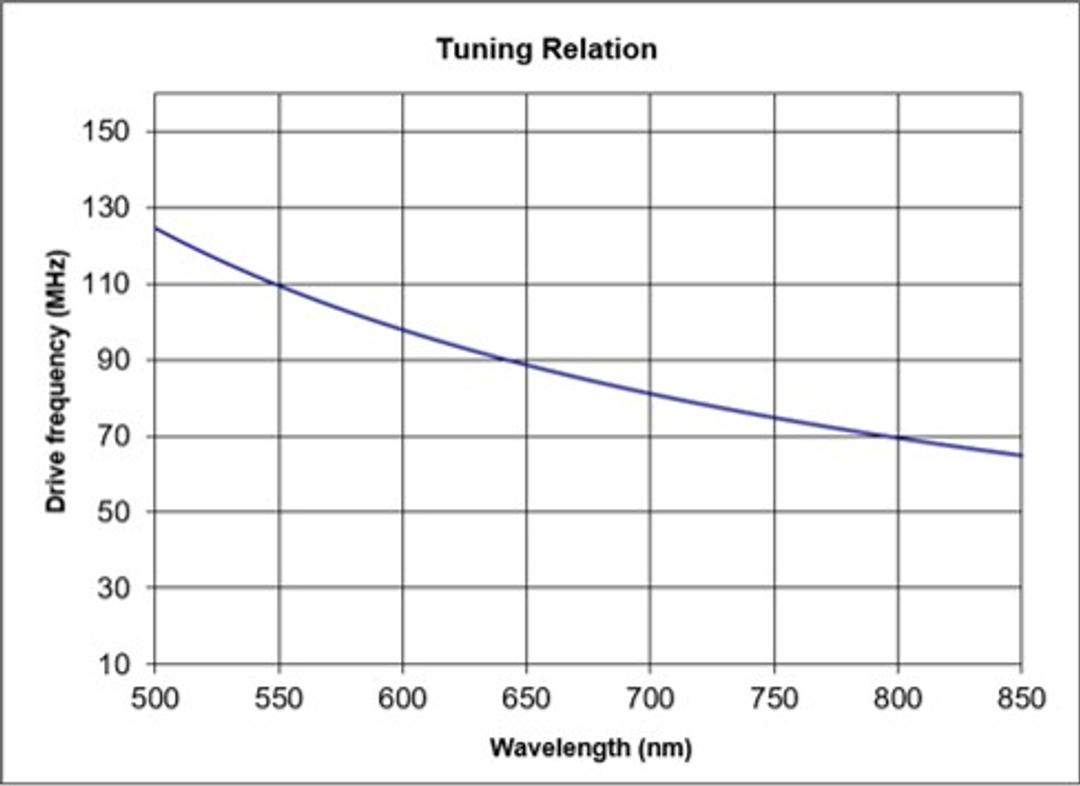

Example Tuning Curve (Guidance only)
