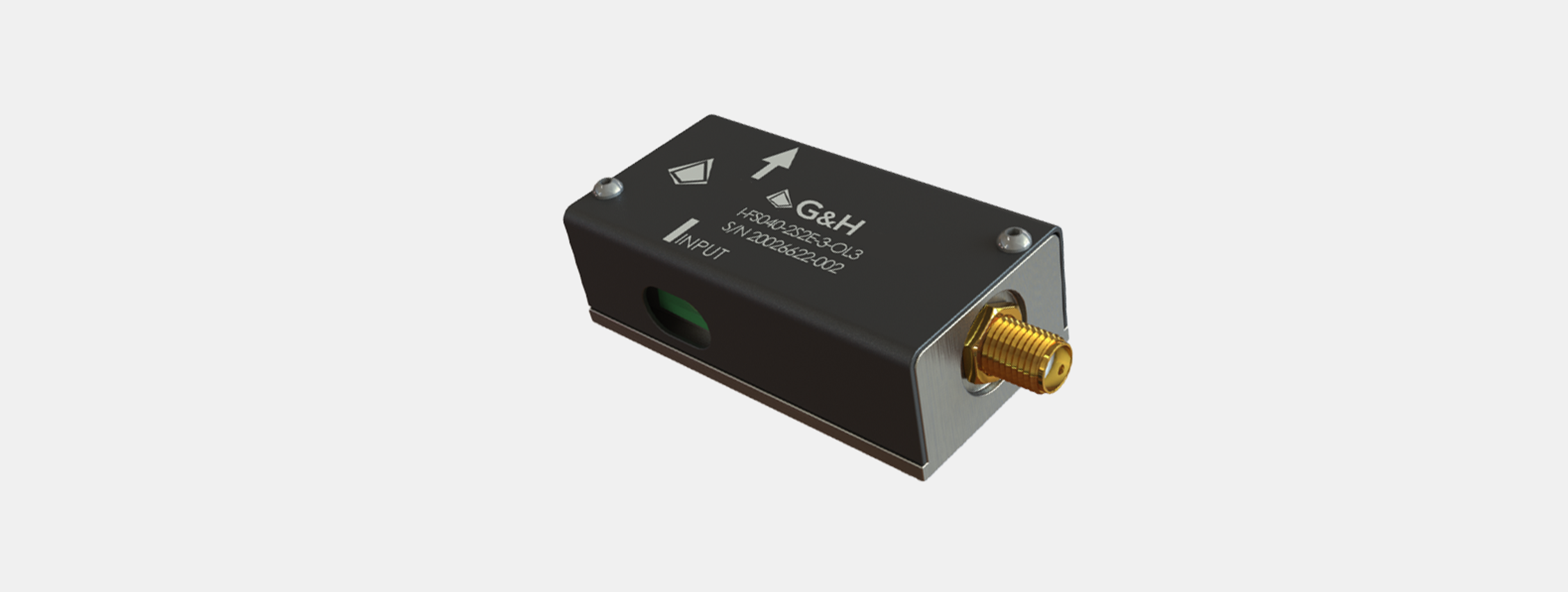

TF525-250-6-3-GH19A
For use in the 400–650 nm wavelength range with an active aperture of 3 mm and a bandwidth of 3 nm.
Full Product Description- Minimum Wavelength (nm):
- 400
- Maximum Wavelength (nm):
- 650
Product description
Patented side lobe suppression technology provides excellent out-of-band suppression. Combining optimum grade tellurium dioxide, high-quality optical finishing, high-grade anti-reflection coatings, with novel acoustic management and optomechanical design techniques, our tunable filters achieve exceptional thermal management while maintaining superior beam quality and high optical throughput.
Key features
- Excellent out-of-band suppression
- High Damage Threshold
- Improved thermal management
- Superior beam quality
Specifications
| Name | Value |
|---|---|
| Model | TF525-250-6-3-GH19A |
| Spectral Region | Visible |
| Minimum Wavelength (nm) | 400 |
| Maximum Wavelength (nm) | 650 |
| Active Aperture Height (mm) | 3 |
| Active Aperture Length (mm) | 3 |
| Optical Material | TeO₂ |
| Recommended RF Driver | 97-03926-14 |
(Values for Guidance Only - refer to datasheet where available)
