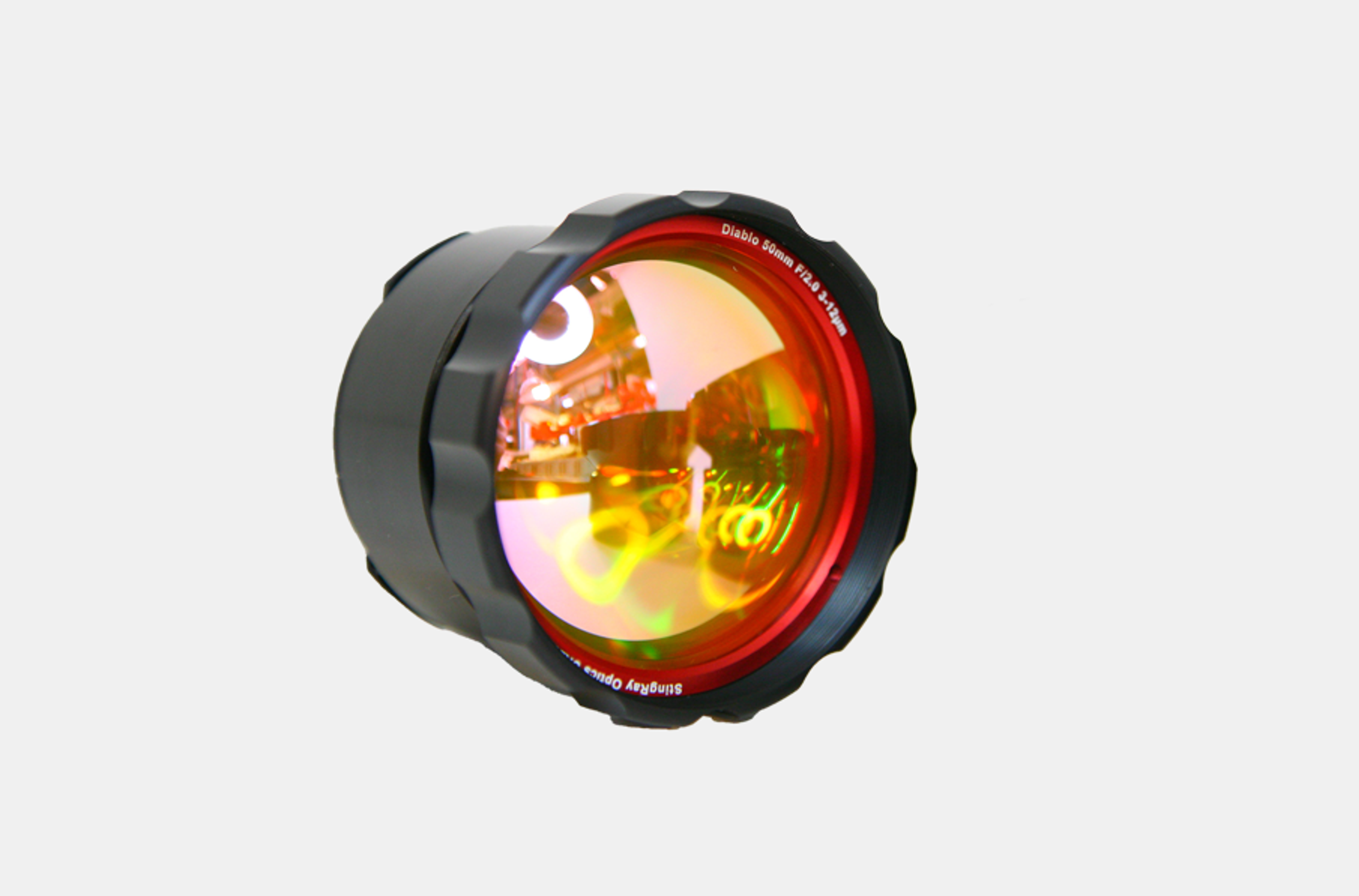

Diablo lens 50mm - A high-performance optical lens unit with a red anodized front ring labeled "Diablo 50mm F2.0 3-5µm" and "StingRay Optics." The lens features a large, reflective, amber-tinted glass surface housed in a matte black, ergonomic body. The glass reflects surrounding lights and lab equipment, emphasizing its precision and clarity.

Diablo Broadband Lens Assemblies

The Diablo Series™ is designed for the state-of-the-art SLS and MCT detectors and is optimized for the wavelength range from 3–12 µm.

Full Product Description
Wavelength:
3–12 µm
f/#:
f/2.0
Focal length:
25 mm, 50 mm, 100 mm, 200 mm, 90° HFOV, 180° HFOV
Image Diameter:
21 mm
Request a quote

Need a product customized?

We can customize our products to fit your requirements.

Find out more

Product description

Supporting wavelengths from 3–12 µm, Diablo lenses offer a 1” cold shield height and include a manual focus with lock and the industry’s standard bayonet mount.

These lenses are specifically optimized for balanced performance over the MWIR/LWIR region simultaneously while achieving compatibility with the widest array of commercially available cameras from both domestic and international manufacturers.

Key features

  • Broadband optimized
  • Active athermalization

Specifications

NameValue
Wavelength3–12 µm
f/#f/2.0
Focal length25 mm, 50 mm, 100 mm, 200 mm, 90° HFOV, 180° HFOV
Image Diameter21 mm
  • 200mm

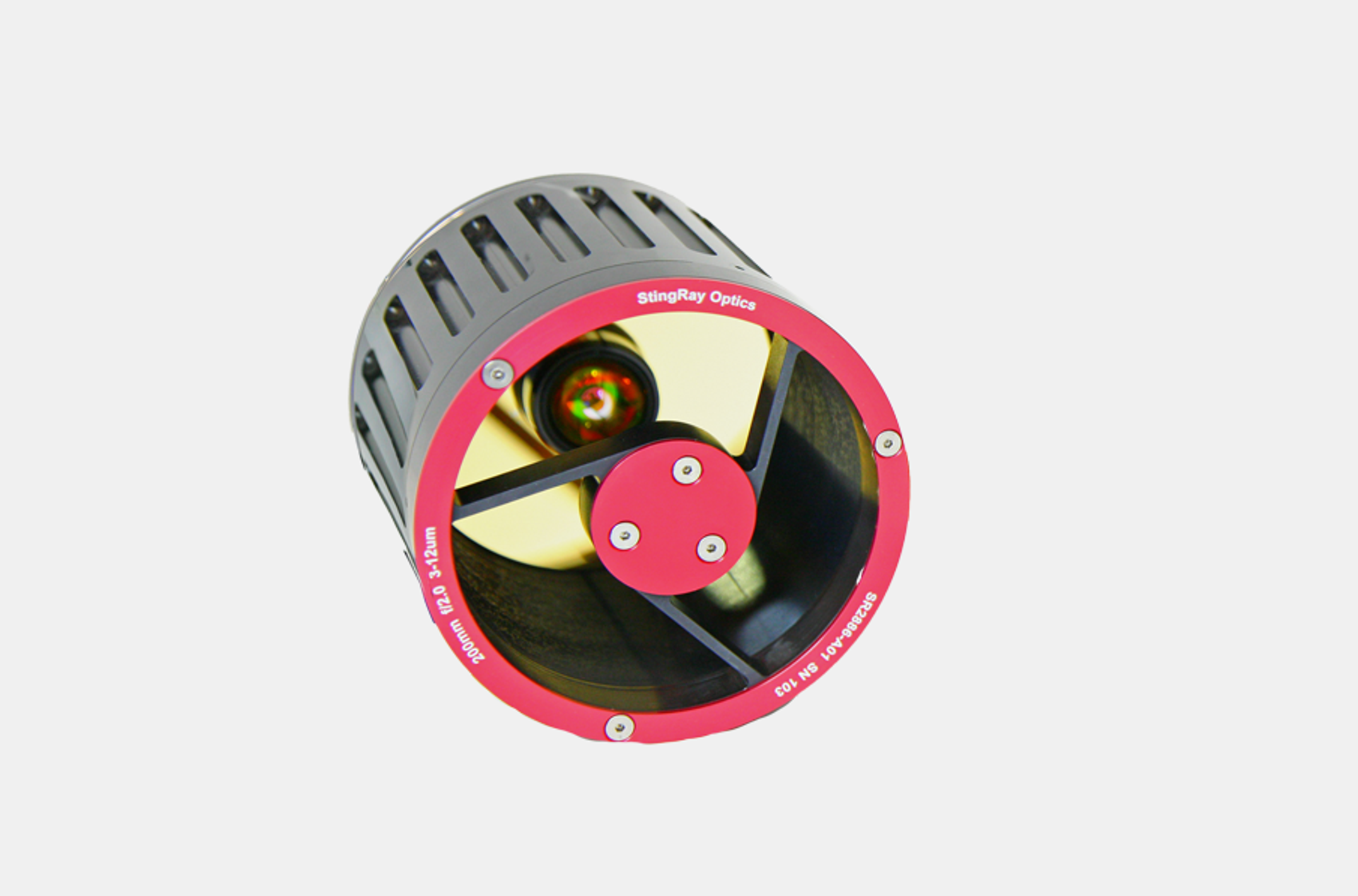

    Diablo lens - A compact, high-precision optical lens unit labeled “StingRay Optics” on a red metal ring at the front. The device features a black, finned cylindrical housing for thermal regulation. Inside, a reflective gold-coated mirror and central secondary mirror suggest a catadioptric (mirror-based) optical design, used for long-range imaging or targeting applications.
