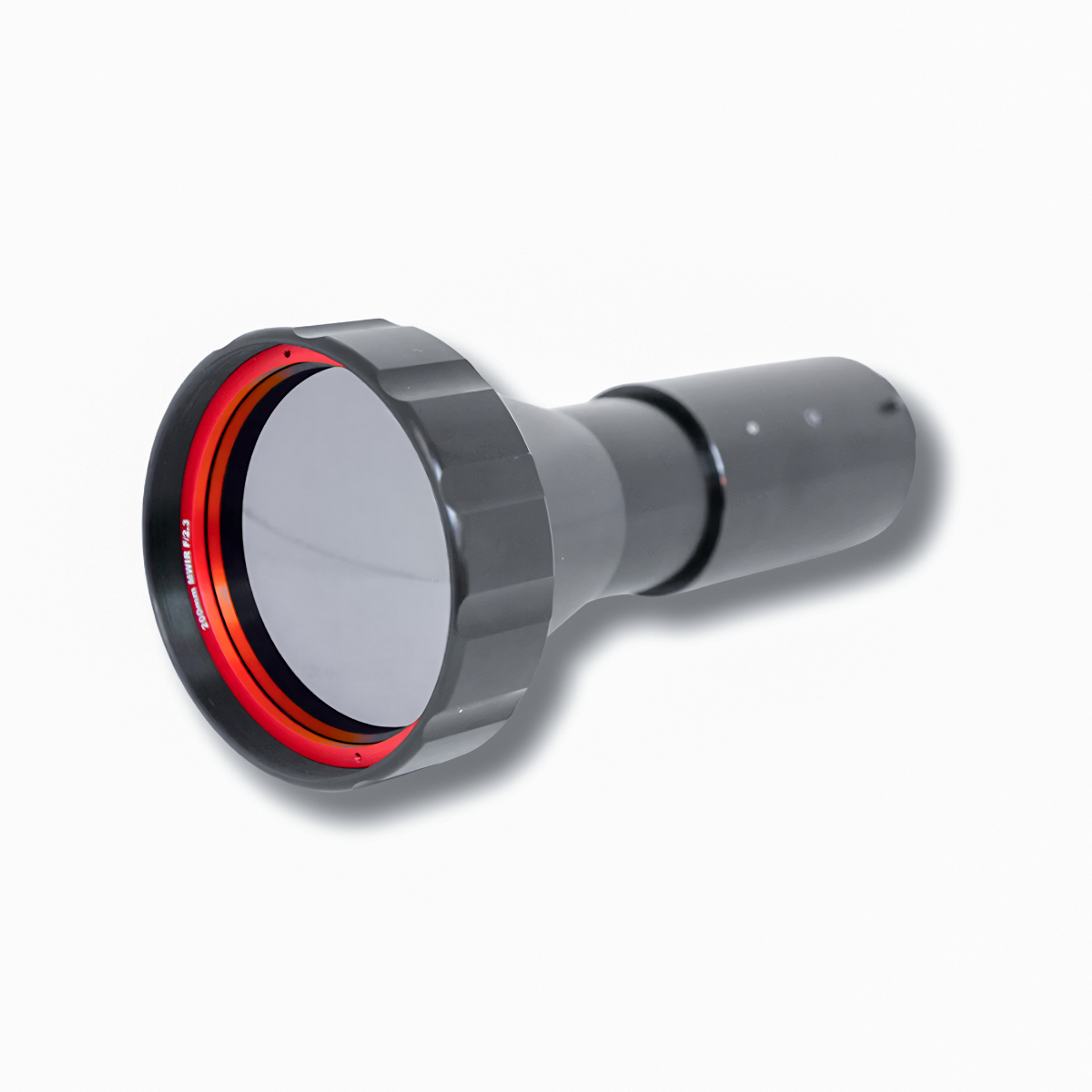

Garnet MWIR Lens Assemblies
The Garnet Series™ is our line of lenses with germanium-free optics for supply-resilient imaging systems, designed to balance performance and price across the achromatic operation 3–5 μm range.
Full Product Description- Wavelength:
- 3–5 μm
- Spectral region:
- MWIR
- f/#:
- f/2.3
- Focal length:
- 13 mm, 25 mm, 50 mm, 100 mm, 200 mm
- Image Diameter:
- 21 mm
Product description
Built on the proven Ruby™ platform, Garnet eliminates the use of Germanium - an increasingly constrained infrared material - while maintaining the high-performance imaging required for defense and surveillance applications. No Chalcogenide materials are used in this lens series, making them supplier-agnostic, further strengthening supply chain resilience.
Designed for operation across the 3–5 µm wavelength range, Garnet enables system designers to preserve optical performance while improving long-term supply chain resilience.
The Garnet series is optimized for mission-critical applications, including intelligence, surveillance, and reconnaissance (ISR), border security, and target detection systems - where both performance and material availability are non-negotiable. If you need supply-resilient MWIR optics, opt for Garnet.
Applications
- Intelligence, Surveillance & Reconnaissance (ISR)
- Border security
- Target detection and tracking
- Defense and security platforms
Key features
- Germanium-free optical design
- Achromatic performance across 3–5 µm
- Compatibility with f/2.3, f/2.5, and f/4.0 systems
- Support for up to 21 mm image formats
- Manual focus with lock and standard IR bayonet mount
Specifications
| Name | Value |
|---|---|
| Wavelength | 3–5 μm |
| Spectral region | MWIR |
| f/# | f/2.3 |
| Focal length | 13 mm, 25 mm, 50 mm, 100 mm, 200 mm |
| Image Diameter | 21 mm |
| Mount Type | Standard IR Bayonet |
| Focus | Manual with lock |
| Cold shield height | 1" |
(Values for Guidance Only - refer to datasheet where available)
