AOMO 3030 Modulator
The AOMO 3030 is a visible and near-infrared acousto-optic modulator using TeO₂ shear-mode material, designed for precise laser beam control in optical systems that require modulation, switching and tunable diffraction angle control.
Full Product Description- Stock Code:
- 97-03358-03
- Minimum Wavelength (nm):
- 680
- Maximum Wavelength (nm):
- 1300
- Center Frequency (MHz):
- 30
- RF Bandwidth (MHz):
- 25
Product description
The AOMO 3030 provides controlled laser modulation and beam management for visible and near-infrared optical systems. Its TeO₂ shear-mode acousto-optic material supports efficient beam interaction, helping deliver stable performance where reliable switching, intensity control and beam positioning are important.
Designed for systems that require more than fixed-position modulation, this device supports frequency tuning for diffraction angle control. It is well suited to optical test platforms, laboratory photonics, instrumentation, imaging, sensing and near-infrared laser systems where controlled beam direction and repeatable modulation performance are required.
Key features
- Visible and near-infrared acousto-optic modulator for precise laser control
- Uses TeO₂ shear-mode acousto-optic material for efficient beam interaction
- Supports beam switching, gating and intensity modulation
- Enables tunable diffraction angle control for beam positioning
- Helps manage optical power, beam delivery and laser timing
- Suitable for systems requiring controlled beam direction as well as modulation
- Designed for reliable integration into laboratory and OEM photonics systems
- Supports optical test platforms, imaging, sensing and instrumentation
- Ideal for applications requiring stable visible and near-infrared beam handling
Specifications
| Name | Value |
|---|---|
| Stock Code | 97-03358-03 |
| Model | AOMO 3030 |
| Spectral Region | Red-Near IR |
| Minimum Wavelength (nm) | 680 |
| Maximum Wavelength (nm) | 1300 |
| Separation Angle at Center Wavelength (mrad) | 45 |
| Center Frequency (MHz) | 30 |
| RF Bandwidth (MHz) | 25 |
| Rise Time (ns/mm) | 1012 |
| Active Aperture Height (mm) | 1.75 |
| Active Aperture Length (mm) | 1.75 |
| Optical Material | TeO₂ |
| Acoustic Velocity (mm/µs) | 0.66 |
| Recommended RF Driver | 3910 Series |
(Values for Guidance Only - refer to datasheet where available)
Performance vs wavelength
| Wavelength | 680 nm | 990 nm | 1300 nm |
|---|---|---|---|
| Operational RF power | <1 W | <1 W | <1.2 W |
| Bragg angle | 34.8 mr | 34.8 mr | 34.8 mr |
| Beam separation | 69.6 mr | 69.6 mr | 69.6 mr |
Performance vs beam diameter
| Beam diameter | 980 μm | 980 μm | 980 μm |
|---|---|---|---|
| Wavelength | 680 nm | 990 nm | 1300 nm |
| Diffraction efficiency | 90% | 90% | 80% |
| Rise time | 991 ns | 991 ns | 991 ns |
NOTE: All Specifications above are "Typical Performance" values for guidance only.

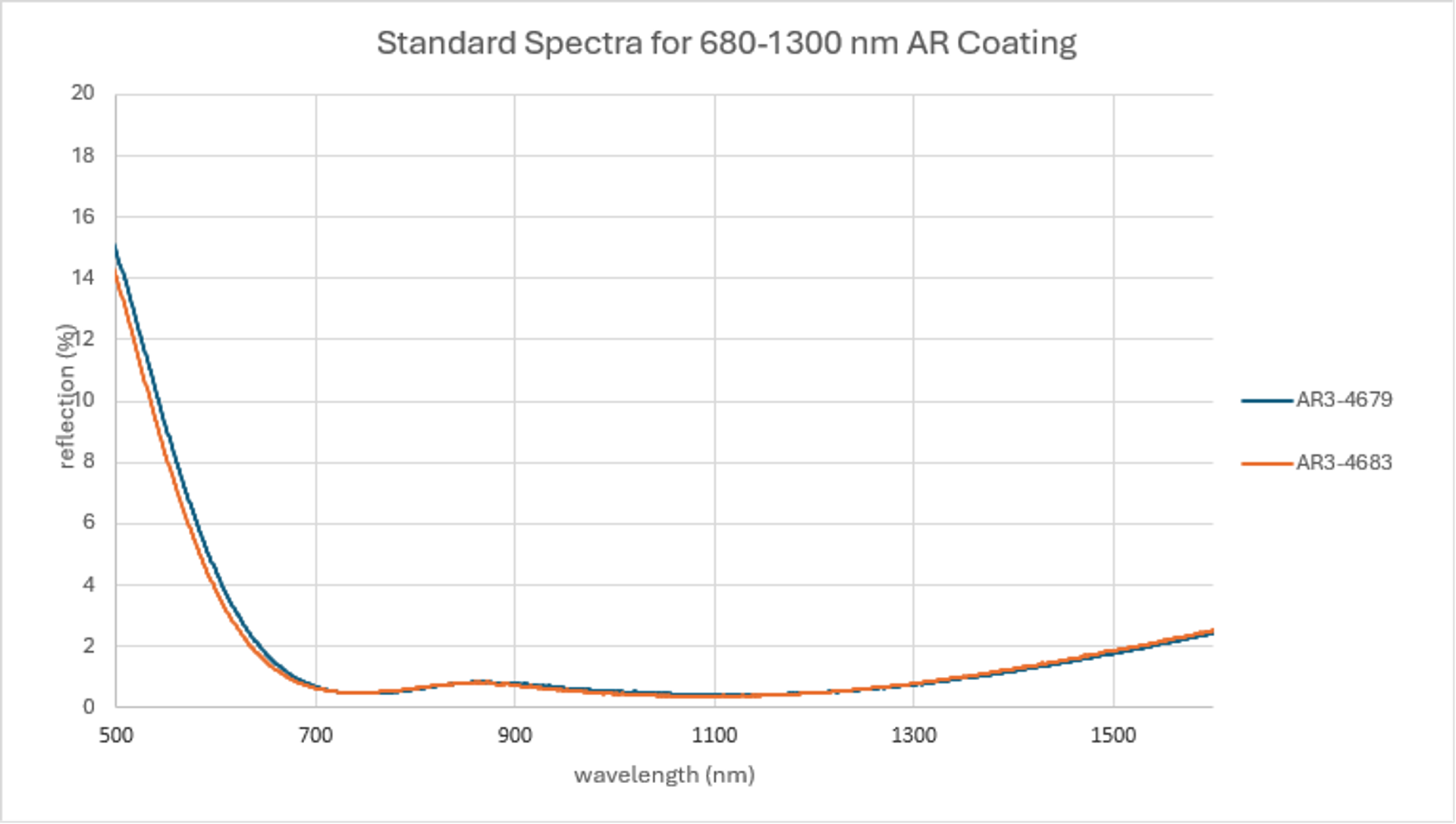

Example AR Coating Curve (Guidance only)
