AOMO 3080-120
For use in the 440–850 nm wavelength range, at an operating frequency of 80 MHz with a rise/fall time of 34 ns, and an active aperture of 1 mm.
Full Product Description- Wavelength:
- 440–850 nm
- Operating Frequency:
- 80 MHz
- Active Aperture:
- 1.0 mm
- Rise/Fall Time:
- 34 ns
Product description
Combining optimum grade TeO₂, high-quality optical finishing, high-grade anti-reflection coatings, with novel acoustic management and optomechanical design techniques, this AOM achieves exceptional thermal management while maintaining superior beam quality and high optical throughput.
Key features
- High Damage Threshold
- Improved thermal management
- Superior beam quality
Specifications
| Name | Value |
|---|---|
| Wavelength | 440–850 nm |
| Operating Frequency | 80 MHz |
| Active Aperture | 1.0 mm |
| Rise/Fall Time | 34 ns |
| AO medium | TeO2 |
| Acoustic velocity | 4.2 mm μs |
| RF bandwidth | 20 MHz @ -10 dB return loss |
| Input impedance | 50 Ω nominal |
| VSWR | Max: 1.3:1 |
| Insertion loss | Max: 4% |
| Reflectivity per surface | Max: 1% |

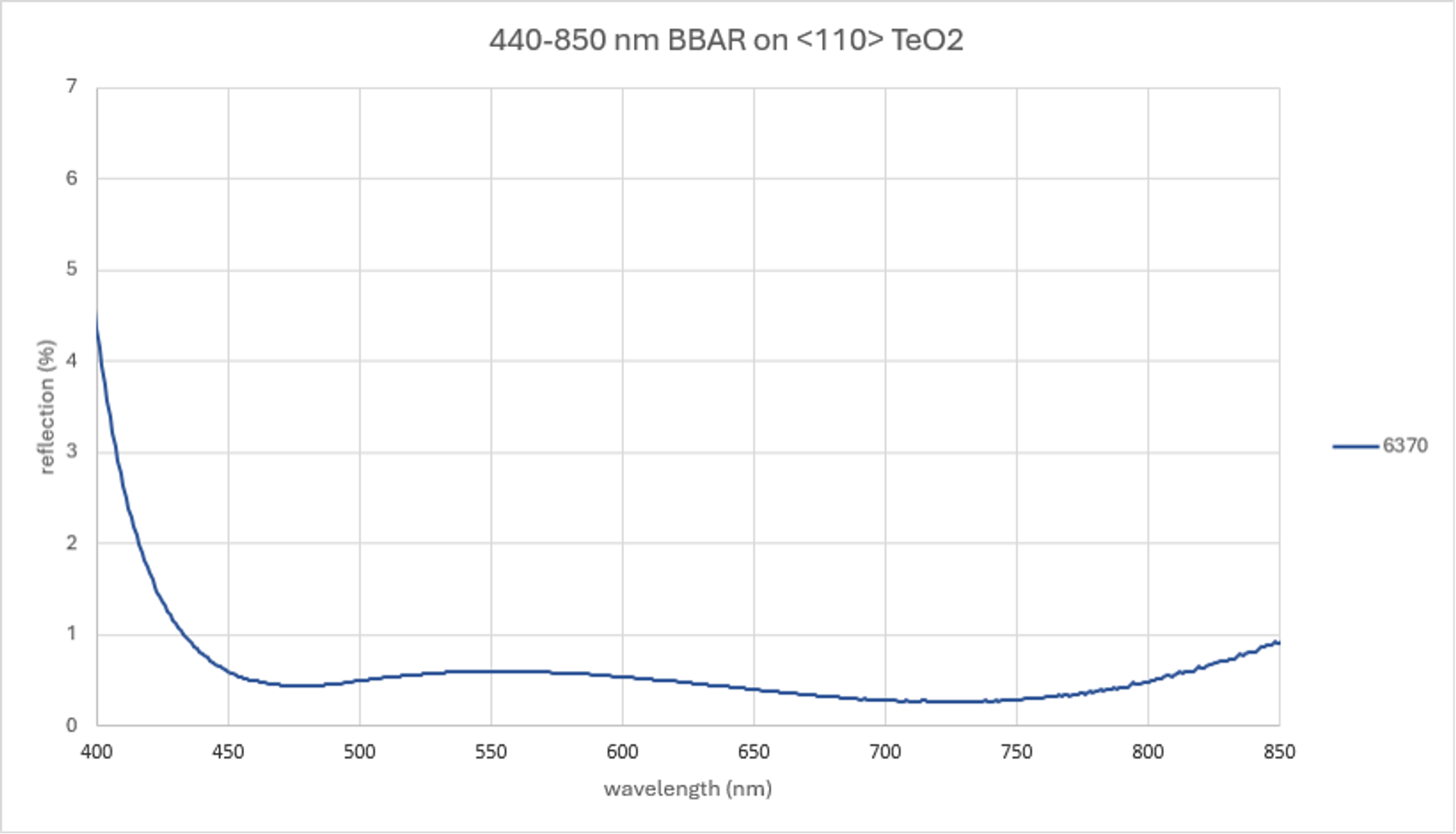

| Anti-reflection coating | MIL-C-48497 |
| Optical power density | 250 W/mm² |
| Contrast ratio | Min: 1000:1 |
| Polarization | 90° to mounting plane |
Performance vs wavelength
| Wavelength | 442 nm | 488 nm | 515 nm | 633 nm |
|---|---|---|---|---|
| Saturation RF power | 0.27 W | 0.33 W | 0.36 W | 0.55 W |
| Bragg angle | 4.2 mr | 4.6 mr | 4.9 mr | 6 mr |
| Beam separation | 8.4 mr | 9.2 mr | 9.8 mr | 12 mr |
Performance vs beam diameter
| Beam diameter | 200 μm | 300 μm | 500 μm |
|---|---|---|---|
| At wavelength | 633 nm | 633 nm | 633 nm |
| Diffraction efficiency | 80% | 83% | 85% |
| Rise time | 34 nsec | 49 nsec | 80 nsec |
