AOMO 3080-1980 Modulator
The AOMO 3080-1980 is a compact Mid-IR acousto-optic modulator using tellurium dioxide, designed for infrared laser systems where small-beam control, low optical feedback and stable switching performance are important.
Full Product Description- Stock Code:
- 97-03250-01
- Minimum Wavelength (nm):
- 1650
- Maximum Wavelength (nm):
- 2300
- Center Frequency (MHz):
- 80
- RF Bandwidth (MHz):
- 15
Product description
The AOMO 3080-1980 provides controlled modulation for compact Mid-IR laser systems where precise beam gating, optical switching and intensity control are required. Its tellurium dioxide acousto-optic material supports efficient infrared beam interaction, helping deliver reliable performance in space-conscious photonics assemblies.
This modulator is well suited to Mid-IR optical layouts where compact beam handling, low reflectivity and clean beam separation are important for integration. Random polarisation support, low insertion loss and high contrast switching help support stable beam control in laboratory photonics, optical test platforms, sensing systems and specialist infrared instrumentation.
Key features
- Compact Mid-IR acousto-optic modulator for infrared laser control
- Uses tellurium dioxide acousto-optic material for efficient infrared beam interaction
- Designed for small-beam optical layouts and compact system integration
- Supports beam gating, optical switching and intensity modulation
- Low reflectivity helps reduce unwanted optical feedback
- Low insertion loss helps preserve available laser power
- High contrast switching supports clean laser on/off control
- Defined beam separation supports practical routing and alignment
- Random polarisation support provides flexibility in optical system design
- Helps manage optical timing, beam delivery and laser power
- RoHS-compliant construction supports integration into regulated product platforms
- Suitable for optical test platforms, sensing systems and laboratory photonics
- Supports OEM instrumentation and specialist Mid-IR laser systems
- Ideal for applications requiring compact, repeatable infrared beam control
Specifications
| Name | Value |
|---|---|
| Stock Code | 97-03250-01 |
| Model | AOMO 3080-1980 |
| Spectral Region | Mid IR |
| Minimum Wavelength (nm) | 1650 |
| Maximum Wavelength (nm) | 2300 |
| Separation Angle at Center Wavelength (mrad) | 37.6 |
| Center Frequency (MHz) | 80 |
| RF Bandwidth (MHz) | 15 |
| Rise Time (ns/mm) | 159 |
| Active Aperture Height (mm) | 0.5 |
| Active Aperture Length (mm) | 2.5 |
| Optical Material | TeO₂ |
| Acoustic Velocity (mm/µs) | 4.2 |
| Recommended RF Driver | 3910 Series |
(Values for Guidance Only - refer to datasheet where available)
Performance Vs Wavelength
| Wavelength | 2000 nm |
|---|---|
| Saturation RF power | 6 Peak |
| Bragg angle | 19 mr |
| Beam separation | 38 mr |
Performance vs beam diameter
| Beam Diameter | 300 μm |
|---|---|
| At wavelength | 2000 nm |
| Diffraction efficiency | 80% |
| Rise time | 73 ns |
NOTE: All Specifications above are "Typical Performance" values for guidance only.

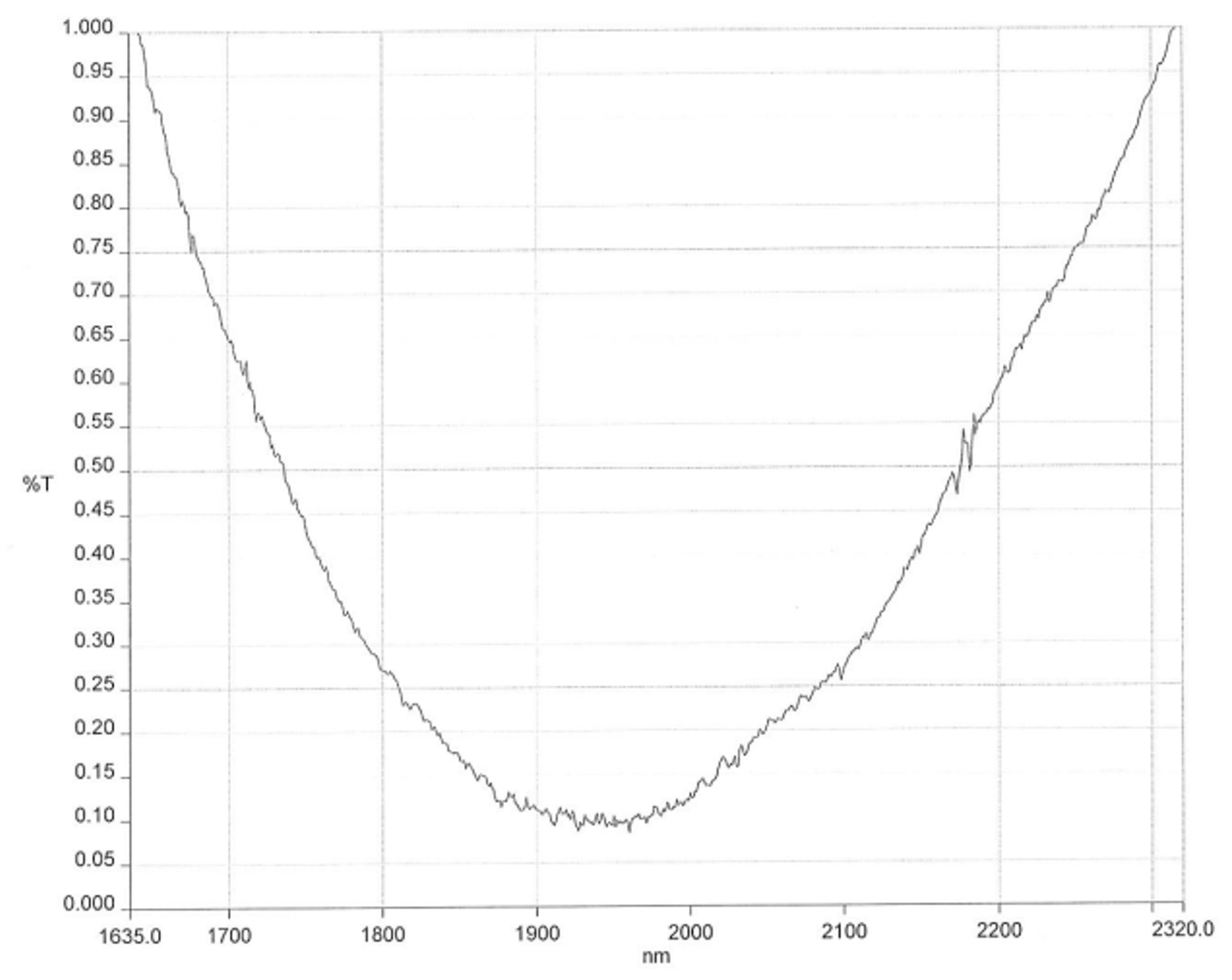

Example AR Coating Curve (Guidance only)
