AOMO 3110 Modulator
The AOMO 3110 is a UV acousto-optic modulator using crystalline quartz, designed for precise 355 nm laser control in systems that require stable beam gating, pulse selection, optical switching and intensity modulation.
Full Product Description- Stock Code:
- 97-03381-01
- Minimum Wavelength (nm):
- 310
- Maximum Wavelength (nm):
- 410
- Center Frequency (MHz):
- 110
- RF Bandwidth (MHz):
- 20
Product description
The AOMO 3110 provides controlled modulation for 355 nm UV laser systems where beam stability, optical efficiency and repeatable switching performance are important. Its crystalline quartz optical material provides a robust platform for UV acousto-optic modulation, while the larger aperture supports systems that require bigger beam handling.
Designed for demanding UV laser platforms, this modulator helps manage beam delivery, optical power and timing in applications such as micromachining, semiconductor processing, precision manufacturing, scientific research and analytical instrumentation. Its water-cooled design, anti-reflection coated optics and high contrast switching support reliable performance where thermal stability and clean beam control are critical.
Key features
- UV acousto-optic modulator for precise 355 nm laser control
- Uses crystalline quartz optical material for robust UV beam interaction
- Large active aperture supports bigger beam handling in UV optical systems
- Water-cooled design helps manage thermal load in demanding laser platforms
- Supports beam gating, pulse selection, optical switching and intensity modulation
- Helps manage optical power, beam delivery and laser timing
- High contrast switching helps reduce unwanted optical leakage
- Anti-reflection coated optics support efficient UV beam transmission
- Low optical loss helps preserve available laser power within the optical system
- Suitable for micromachining, semiconductor processing and precision manufacturing
- Supports scientific research, analytical instrumentation and UV laser platforms
- Ideal for applications requiring stable, repeatable UV beam control
Specifications
| Name | Value |
|---|---|
| Stock Code | 97-03381-01 |
| Model | AOMO 3110 |
| Spectral Region | UV-Violet |
| Minimum Wavelength (nm) | 310 |
| Maximum Wavelength (nm) | 410 |
| Separation Angle at Center Wavelength (mrad) | 6.9 |
| Center Frequency (MHz) | 110 |
| RF Bandwidth (MHz) | 20 |
| Rise Time (ns/mm) | 116 |
| Active Aperture Height (mm) | 6 |
| Active Aperture Length (mm) | 6 |
| Optical Material | Crystal Quartz |
| Acoustic Velocity (mm/µs) | 5.74 |
| Recommended RF Driver | 3910 Series |
(Values for Guidance Only - refer to datasheet where available)
Performance Vs wavelength
| Wavelength | 355 nm | 355 nm |
|---|---|---|
| Operational RF power nominal | 6 W | 10 W |
| Bragg angle | 3.4 mr | 3.4 mr |
| Beam separation | 6.8 mr | 6.8 mr |
Performance Vs beam diameter
| Beam diameter | 3500 μm | 3500 μm |
|---|---|---|
| At wavelength | 355nm | 355 nm |
| Diffraction efficiency | 85 % | 94 % |
| Rise time | 407 ns | 407 ns |
NOTE: All Specifications above are "Typical Performance" values for guidance only.

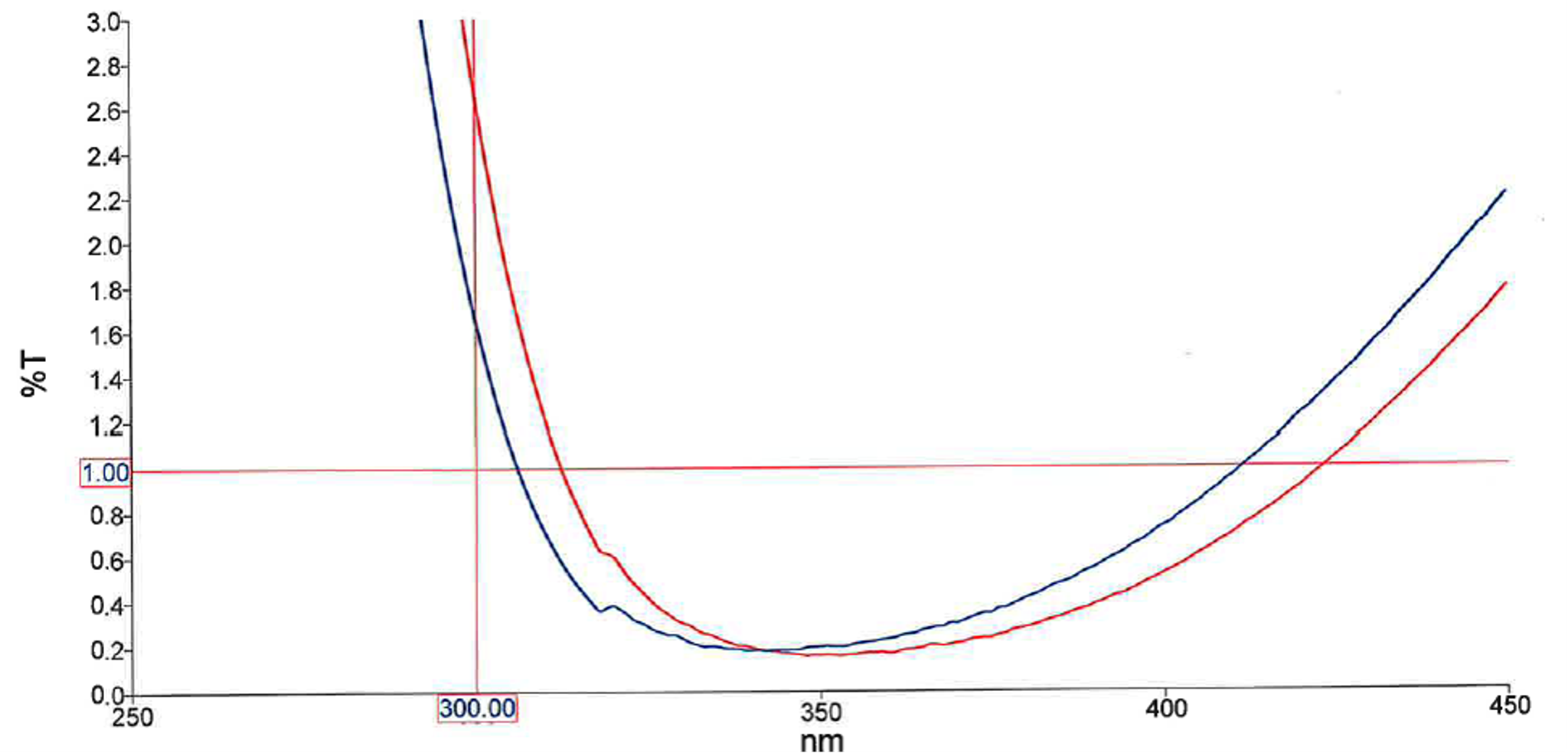

Example AR Coating Curve (for guidance only)
