AOMO 3200-1214 Modulator
The AOMO 3200-1214 is a compact visible acousto-optic frequency shifter using TeO₂, designed for laser systems where precise frequency shifting, clean beam separation and stable visible beam control are important.
Full Product Description- Stock Code:
- 97-03036-02
- Minimum Wavelength (nm):
- 450
- Maximum Wavelength (nm):
- 850
- Center Frequency (MHz):
- 200
- RF Bandwidth (MHz):
- 50
Product description
The AOMO 3200-1214 provides controlled frequency shifting for visible laser systems where predictable beam displacement, reliable diffraction efficiency and stable optical performance are required. Its TeO₂ acousto-optic medium supports efficient visible beam interaction, making it well suited to compact photonics assemblies that require repeatable frequency control.
This frequency shifter is designed for visible laser applications where beam separation, optical alignment and modulation stability are key design considerations. Its compact aperture, anti-reflection coated optics, high contrast switching and defined performance across multiple visible wavelengths support use in optical test platforms, interferometry, laser Doppler systems, laboratory photonics and OEM instrumentation.
Key features
- Compact visible acousto-optic frequency shifter for precision laser control
- Uses TeO₂ acousto-optic medium for efficient visible beam interaction
- Designed for controlled frequency shifting in visible laser systems
- Supports clean diffracted beam separation for practical optical routing
- Compact active aperture supports small-beam optical layouts
- High contrast ratio supports clean optical switching performance
- Anti-reflection coating helps reduce unwanted surface reflections
- Low insertion loss helps preserve available laser power
- Defined performance across multiple visible wavelengths supports flexible system design
- Stable diffraction efficiency supports repeatable visible beam control
- Horizontal polarisation supports predictable optical integration
- Standard input impedance supports integration with compatible RF drive electronics
- Suitable for optical test platforms, interferometry and laser Doppler systems
- Supports laboratory photonics, visible laser instrumentation and OEM optical assemblies
- Ideal for applications requiring precise visible laser frequency shifting and beam separation
Specifications
| Name | Value |
|---|---|
| Stock Code | 97-03036-02 |
| Model | AOMO 3200-1214 |
| Spectral Region | Vis-Near IR |
| Minimum Wavelength (nm) | 450 |
| Maximum Wavelength (nm) | 850 |
| Separation Angle at Center Wavelength (mrad) | 31 |
| Center Frequency (MHz) | 200 |
| RF Bandwidth (MHz) | 50 |
| Rise Time (ns/mm) | 159 |
| Active Aperture Height (mm) | 1.5 |
| Active Aperture Length (mm) | 2.5 |
| Optical Material | TeO₂ |
| Acoustic Velocity (mm/µs) | 4.2 |
| Recommended RF Driver | 3910 Series |
(Values for Guidance Only - refer to datasheet where available)
Performance vs Wavelength
| Wavelength | 470nm | 532nm | 633nm | 690nm |
|---|---|---|---|---|
| Saturation RF power | 0.4 W | 0.6 W | 0.9 W | 1.1 W |
| Bragg angle | 11.2 mr | 12.7 mr | 15.1 mr | 16.4mr |
| Beam separation | 22.4 mr | 25.4 mr | 30.2 mr | 32.8 mr |
Performance vs beam diameter
| Beam diameter | 1000 μm | 1000 μm | 1000 μm | 1000 μm |
|---|---|---|---|---|
| At wavelength | 470 nm | 532 nm | 633 nm | 690 nm |
| Diffraction efficiency | 85% | 85% | 85% | 85% |
| Rise time | 159 ns | 159 ns | 159 ns | 159 ns |
NOTE: All Specifications above are "Typical Performance" values for guidance only.

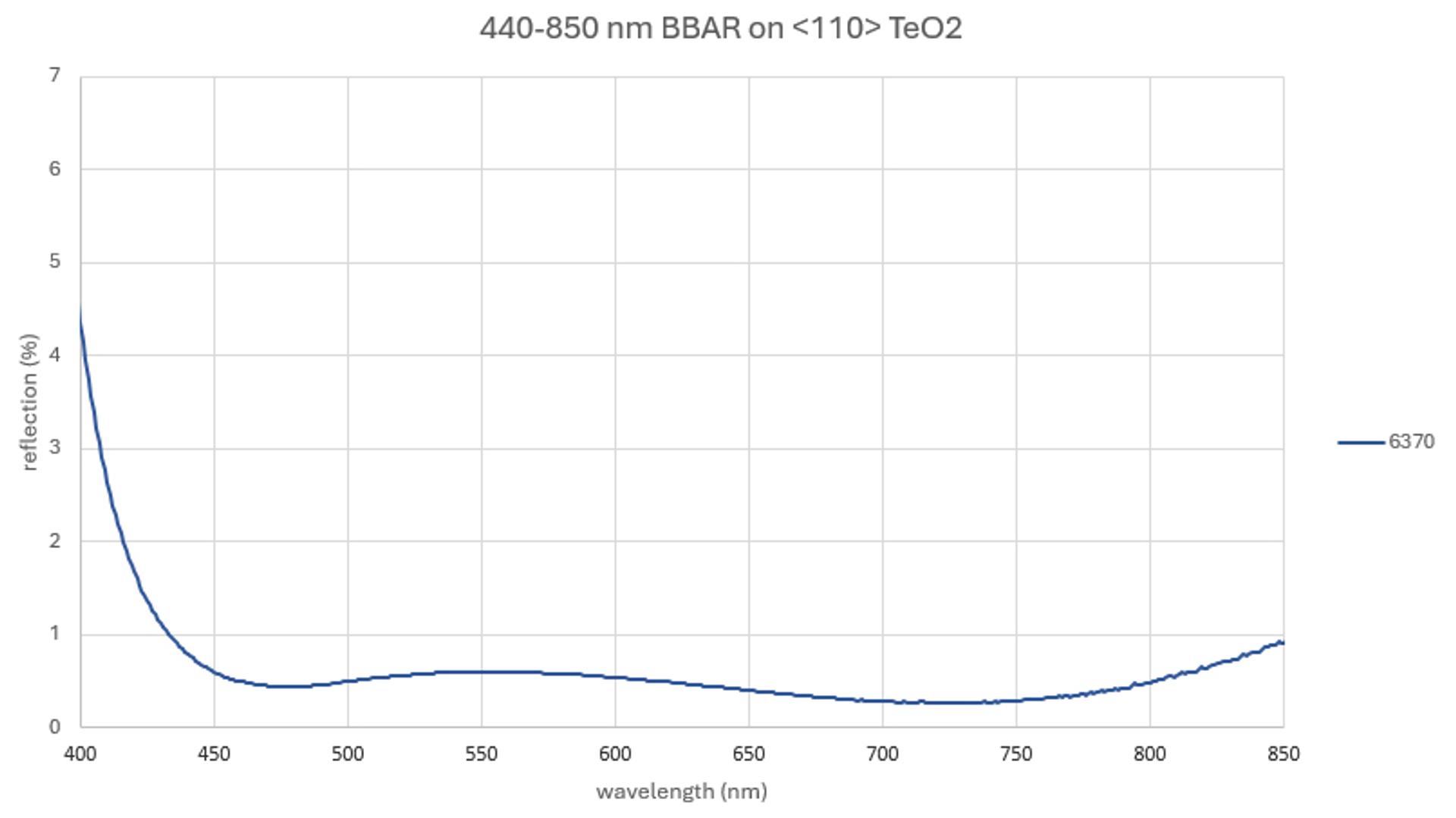

Example AR Coating Curve (Guidance only)
