AOMO 3307-121 Modulator
The AOMO 3307-121 is a high-speed violet acousto-optic modulator using crystalline quartz, designed for precise laser control in compact optical systems that require fast switching, pulse picking and intensity modulation.
Full Product Description- Stock Code:
- 97-02818-01
- Minimum Wavelength (nm):
- 380
- Maximum Wavelength (nm):
- 460
- Center Frequency (MHz):
- 307.5
- RF Bandwidth (MHz):
- 150
Product description
The AOMO 3307-121 provides fast, controlled modulation for violet laser systems where rapid beam switching and clean optical gating are required. Its crystalline quartz acousto-optic material supports stable modulation at short visible wavelengths, making it well suited to specialist photonics systems using tightly controlled violet laser beams.
Designed for compact, high-speed laser applications, this modulator helps manage beam delivery, optical timing and intensity control in scientific research, analytical instrumentation, laboratory photonics and precision optical platforms. Its high contrast switching, anti-reflection coated surfaces and heatsink-assisted construction support reliable performance in demanding violet laser systems.
Key features
- High-speed violet acousto-optic modulator for precision laser control
- Uses crystalline quartz acousto-optic material for stable violet beam interaction
- Designed for compact optical systems using tightly controlled beam sizes
- Supports fast beam switching, gating and pulse picking
- Helps manage laser intensity, optical timing and beam delivery
- High contrast switching helps reduce unwanted optical leakage
- Anti-reflection coated surfaces support efficient violet beam transmission
- Heatsink-assisted construction supports thermal management in compact system designs
- Suitable for scientific research, analytical instrumentation and laboratory photonics
- Ideal for specialist violet laser systems requiring rapid, repeatable beam control
Specifications
| Name | Value |
|---|---|
| Stock Code | 97-02818-01 |
| Model | AOMO 3307-121 |
| Spectral Region | Violet-Blue |
| Minimum Wavelength (nm) | 380 |
| Maximum Wavelength (nm) | 460 |
| Separation Angle at Center Wavelength (mrad) | 22.5 |
| Center Frequency (MHz) | 307.5 |
| RF Bandwidth (MHz) | 150 |
| Rise Time (ns/mm) | 116 |
| Active Aperture Height (mm) | 0.2 |
| Active Aperture Length (mm) | 2.5 |
| Optical Material | Crystal Quartz |
| Acoustic Velocity (mm/µs) | 5.74 |
| Recommended RF Driver | 3910 Series |
(Values for Guidance Only - refer to datasheet where available)
Performance vs wavelength
| Wavelength | 413 nm |
|---|---|
| Saturation RF power | 2.5 W |
| Bragg angle | 11.1 mr |
| Beam separation | 22.2 mr |
Performance vs beam diameter
| Beam diameter | 30 μm |
|---|---|
| Wavelength | 413 nm |
| Diffraction efficiency | 45% |
| Rise Time | 7 ns |
NOTE: All Specifications above are "Typical Performance" values for guidance only.

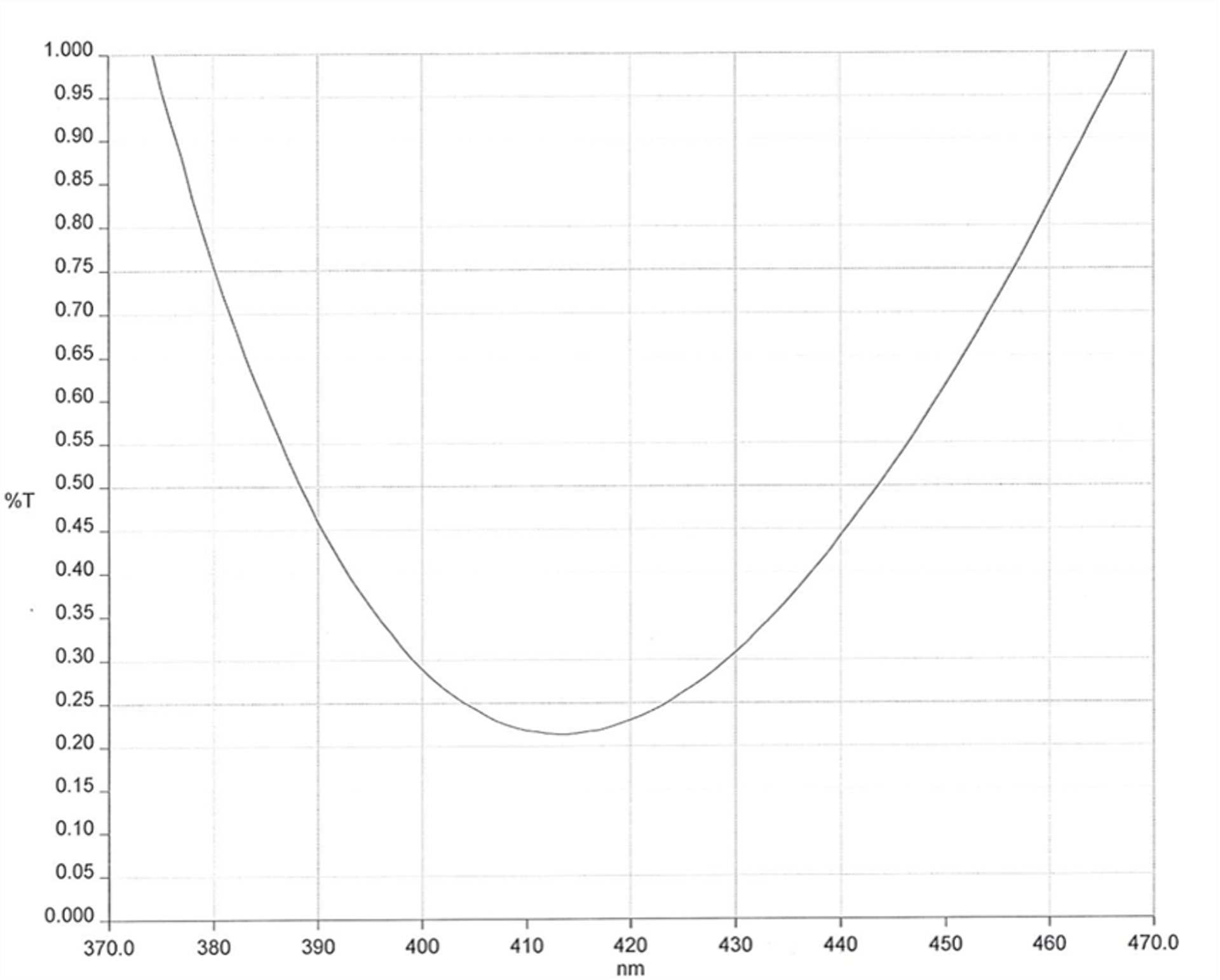

Example AR Coating Curve (Guidance only)
