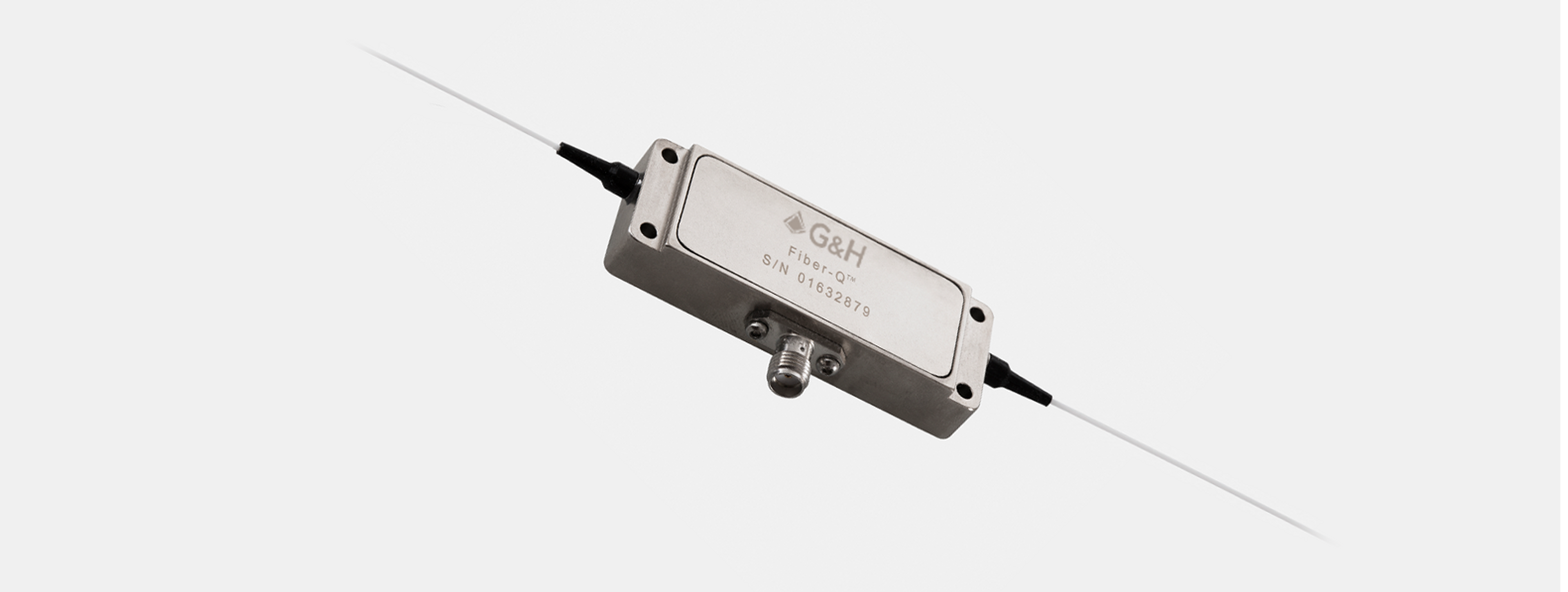

Fiber-Q® xxx nm xxx MHz (non-hermetic) product image

Fiber-Q® 1060 nm 200 MHz Non-Hermetic Fiber-Coupled AOM

For use at the wavelength of 1060 nm, with a rise/fall time of 10 ns and an operating frequency of 200 MHz, with SM pigtails.

Full Product Description
Wavelength:
Min: 1030 nm, Max: 1090 nm, Typical: 1060 nm
Operating frequency:
200 MHz
Rise/Fall Time:
10 ns
SM/PM:
SM
Request a quote

Need a product customized?

We can customize our products to fit your requirements.

Find out more

Product description

A fiber-coupled acousto-optic modulator for use at 1060 nm, with a rise/fall time of 10 ns and an operating frequency of 200 MHz, for use with SM or PM pigtails. This product is sealed to IP54 (dust/splash proof, non-hermetic).

G&H specialises in providing optical components for high-power fiber laser and amplifier systems. In-house control of critical manufacturing processes; from crystalline material selection and orientation, cutting, polishing, and anti-reflection coating through to fiber coupling, ensure our components are of the highest optical quality.

Key features

  • Low insertion loss
  • Compact low profile package
  • Rugged hermetic design
  • Stable performance
  • Low power consumption

Specifications

NameValue
WavelengthMin: 1030 nm, Max: 1090 nm, Typical: 1060 nm
Operating frequency200 MHz
Rise/Fall Time10 ns
Optical power handlingMax: 1 W
Peak optical power handlingMax: 1 kW (Dependent on pulse width)
Insertion lossMax: 4 dB, Typical: 3.5 dB
Polarization extinction ratioMin: 18 dB
Extinction ratio45 dB
Return lossMin: 40 dB (RF ON /RF OFF)
VSWRMax: 1.5:1
Input impedance50 Ω
RF powerMax: 2.5 W (Absolute maximum rating. Higher power will cause damage.)
Frequency shift200 MHz (Upshift)
Fiber typeFujikura PM980 (SM98-PS- U25A) or equivalent
Fiber terminationBare fiber
SM/PMSM
