AODF 4090-7
For use in the 440–530 nm wavelength range, at an operating frequency of 60–115 MHz with a scan angle up to 44 mrad, and an active aperture of up to 8.5 mm.
Full Product Description- Wavelength:
- 440–530 nm
- Scan Angle:
- 44 mrad
- Operating Frequency:
- 60–115 MHz
- Active Aperture:
- 8.5 mm
Product description

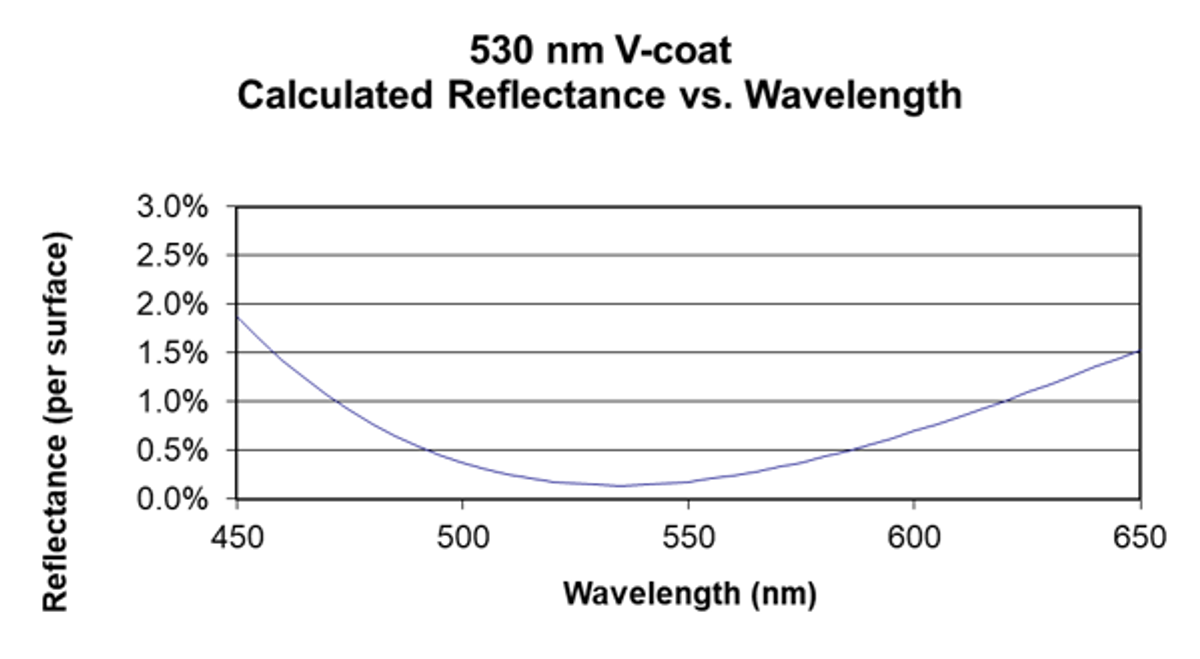

Our range of deflectors utilizes our high-quality crystals and AR coatings, housed in a rugged and reliable package for unsurpassed consistency.
A variety of designs using optimized optical materials are available, with conduction cooling or water-cooling for high-power situations.
Our expert design staff can tailor deflector performance to meet your specific needs.
Key features
- Solid-state design
- Accurate position control
- Fast scan speeds
- Good temperature stability
- Repeatable performance
- Custom designs available
Specifications
| Name | Value |
|---|---|
| Wavelength | 440–530 nm |
| Scan Angle | 44 mrad |
| Operating Frequency | 60–115 MHz |
| Active Aperture | 8.5 mm |
| AO medium | TeO2 |
| Acoustic mode | Shear, off axis |
| Acoustic velocity | 0.66 mm/µs |
| Input polarization | Horizontal |
| Output polarization | Vertical |
| Insertion loss | 3% |
| Center frequency (Fc) | 87 MHz |
| RF bandwidth | 55 MHz |
| RF power | <1.5W |
| Diffraction efficiency | N/A |
| Flatness across bandwidth | N/A |
| Minimum diffraction efficiency | 70% |
| Peak valley at 633 nm | λ/4 |
| RMS at 633 nm | N/A |
| VSWR | 2.2:1 |
| Time bandwidth | N/A |
