AODF 4110 UV Deflector
G&H 4110 Quartz 355nm AODF with 6 mm aperture, 110 MHz centre frequency, 20 MHz RF bandwidth and 85% minimum diffraction efficiency.
Full Product Description- Stock Code:
- 97-03283-01
- Minimum Wavelength (nm):
- 343
- Maximum Wavelength (nm):
- 355
- Scan Angle (mrad):
- 1.2
- Center Frequency (MHz):
- 110
- RF Bandwidth (MHz):
- 20
Product description
The G&H 4110 Quartz 355nm Acousto-Optic Deflector is a crystal quartz AODF designed for UV laser beam control applications. It operates using a longitudinal acoustic mode and is configured for linear input and output polarization perpendicular to the mounting plane.
Designed for precision beam steering, the device provides controlled deflection for UV laser systems where optical performance, alignment stability and integration flexibility are important. The unit is water cooled and suitable for use in OEM platforms requiring stable acousto-optic scanning or beam positioning.
With its defined active aperture, UV wavelength compatibility and RF operating range, the 4110 Quartz 355nm AODF supports applications where accurate, repeatable optical deflection is required.
Why Choose G&H UV AO Deflectors?
- Unrivalled diffraction efficiency for UV photon optimization
- Consistent results across the full scan angle
- Market-leading UV-grade crystals for superior optical performance
- Comprehensive vertical integration ensuring quality and reliability
- Custom design and high-volume production for tailored solutions
Key features
- Supports precision UV laser beam steering for demanding optical systems
- Enables accurate optical scanning in OEM laser platforms
- Crystal quartz construction supports reliable UV laser operation
- Designed for stable and repeatable acousto-optic deflection in beam control applications
- Supports laser beam positioning where alignment accuracy and control are critical
- Suitable for industrial laser processing systems requiring controlled UV beam movement
- Supports scientific laser instrumentation where precise beam steering is required
- Water-cooled design supports thermal management in active laser systems
- Linear polarization configuration supports predictable optical integration
- Designed for applications where diffraction performance, beam quality and system reliability are important
Specifications
| Name | Value |
|---|---|
| Stock Code | 97-03283-01 |
| Model | AODF 4110 UV |
| Spectral Region | UV-Violet |
| Minimum Wavelength (nm) | 343 |
| Maximum Wavelength (nm) | 355 |
| Scan Angle (mrad) | 1.2 |
| No. of Resolvable Spots | 14 |
| Center Frequency (MHz) | 110 |
| RF Bandwidth (MHz) | 20 |
| Active Aperture Height (mm) | 6 |
| Active Aperture Length (mm) | 6 |
| Polarization (relative to base) | Vertical |
| Optical Material | Crystal Quartz |
| Acoustic Velocity (mm/μs) | 5.74 |
| RF Power (W) | 12 |
| Recommended RF Driver | 6000 Series Driver |
(Values for Guidance Only - refer to datasheet where available)
*Specifications subject to change.

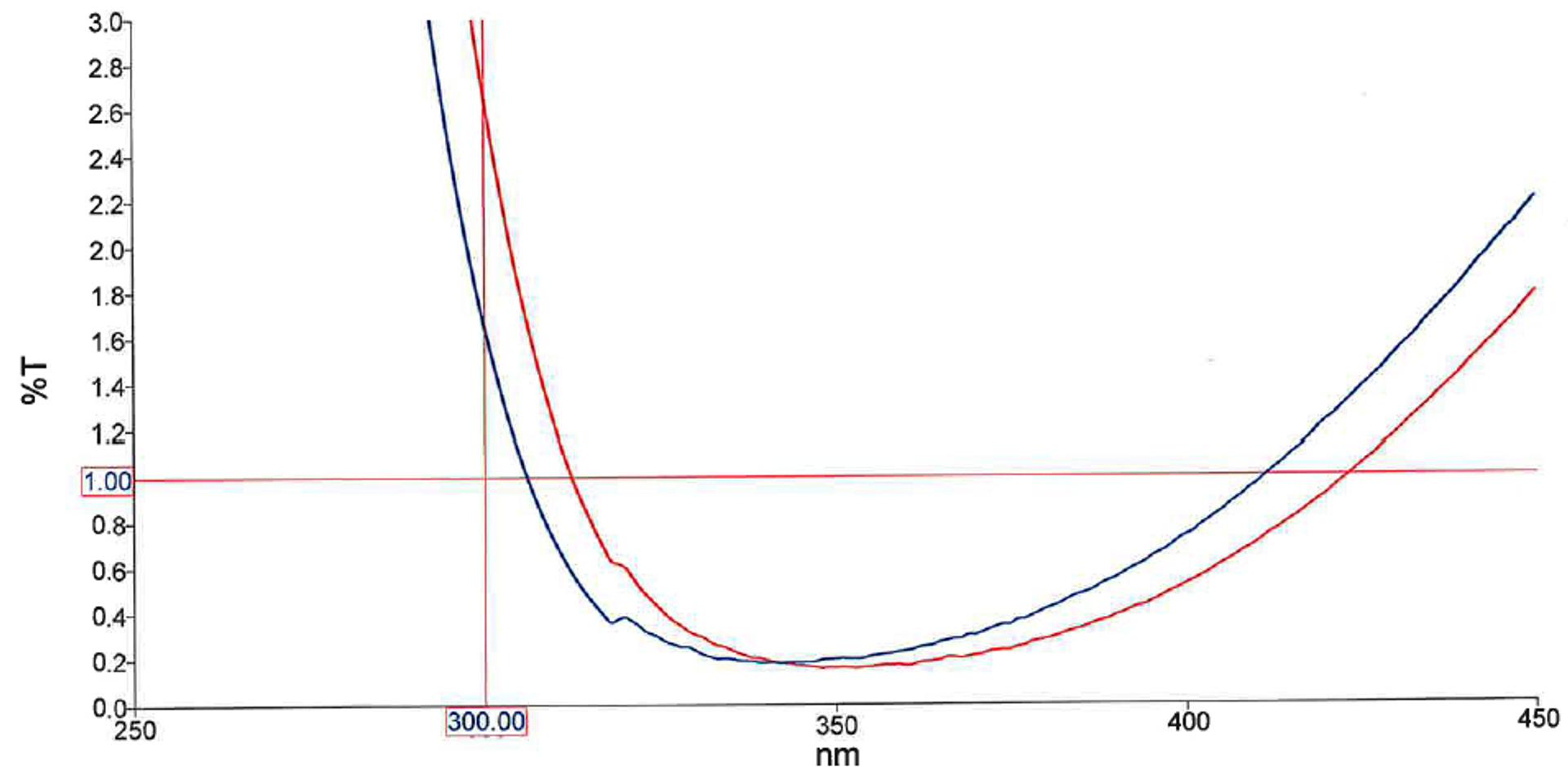

Example AR Coating Curve (Guidance only)
