AODF 4170-UV Quartz Deflector
For use at the wavelengths of 343 and 355 nm, at a centre frequency of 170 MHz with a scan angle up to 4.95 mrad, and an active aperture of up to 7 mm.
Full Product Description- Stock Code:
- 97-03430-02
- Minimum Wavelength (nm):
- 343
- Maximum Wavelength (nm):
- 355
- Scan Angle (mrad):
- 4.9
- Center Frequency (MHz):
- 170
- RF Bandwidth (MHz):
- 80
Product description
At G&H, our UV acousto-optic deflectors (UV AODFs) are state-of-the-art solutions designed for high-speed scanning applications, offering precision, reliability, and unmatched performance. With decades of expertise, we lead the market in advanced designs tailored to demanding UV applications such as micromachining, inspection systems, via drilling, and graphic imaging.
Acousto-optic (AO) beam deflectors induce an angular shift of the diffracted first order proportional to the applied RF frequency carrier signal. The G&H AODF 4170-UV has aperture heights of up to 7 mm Ø are offered while custom devices have demonstrated aperture widths exceeding 60 mm. Beam deflectors offer scan angles up to 5 mrad. These AO devices offer agile, accurate and reproducible, control of the beam position for linear scanning or randomly addressable beam positioning.
Exceptional Diffraction Efficiency
With diffraction efficiencies typically exceeding 85%, the G&H AODF 4170-UV ensures optimal utilization of valuable UV photons. This high efficiency significantly enhances throughput and minimizes waste in critical applications.
Consistent Performance Across Scan Angles
Paired with our 6000 series RF driver, the G&H AODF 4170-UV offers the flattest diffraction efficiency versus frequency response, delivering consistent processing results across the full scan angle. This ensures reliable performance and repeatability in even the most demanding scanning applications.
Highest Optical Quality Crystals
G&H is renowned for producing crystal quartz with exceptional UV transmission. By sourcing or growing the highest-grade UV crystals, we maximize transmission, minimize beam distortion, and ensure unparalleled optical performance.
Advanced Vertical Integration
Our vertically integrated manufacturing process guarantees quality and reliability at every step. From growing and polishing AO crystals to applying high-damage-threshold optical coatings and assembling rugged, reliable packages, G&H delivers unmatched value and precision.
Custom and High-Volume Production Capabilities
We partner closely with commercial customers to deliver customized solutions, backed by flexible high-volume manufacturing capabilities. Whether you need bespoke designs or standard devices, G&H ensures performance and scalability tailored to your needs.
Two-Dimensional Scanning
Achieve 2D scanning by cascading two UV deflectors in series. With our expertise and the reliable performance of our AODF Dual Driver, G&H UV AO deflectors enable seamless operation in advanced UV scanning systems.
Why Choose G&H UV AO Deflectors?
- Unrivalled diffraction efficiency for UV photon optimization
- Consistent results across the full scan angle
- Market-leading UV-grade crystals for superior optical performance
- Comprehensive vertical integration ensuring quality and reliability
- Custom design and high-volume production for tailored solutions
Key features
- Solid state design
- Accurate and reproducable position control
- Fast scan speeds
- Good temperature stability
- Variety of offerings
- Other wavelengths available
- Design expertise
Specifications
| Name | Value |
|---|---|
| Stock Code | 97-03430-02 |
| Model | AODF 4170 UV Quartz |
| Spectral Region | UV-Violet |
| Minimum Wavelength (nm) | 343 |
| Maximum Wavelength (nm) | 355 |
| Scan Angle (mrad) | 4.9 |
| No. of Resolvable Spots | 65 |
| Center Frequency (MHz) | 170 |
| RF Bandwidth (MHz) | 80 |
| Active Aperture Height (mm) | 7 |
| Active Aperture Length (mm) | 7 |
| Optical Material | Crystal Quartz |
| Acoustic Velocity (mm/μs) | 5.74 |
| RF Power (W) | 20 |
| Recommended RF Driver | 6000 Series Driver |
(Values for Guidance Only - refer to datasheet where available)
*Specifications subject to change.
**When RF power is supplied by 6000 Series NGD AO Driver in MUX configuration.

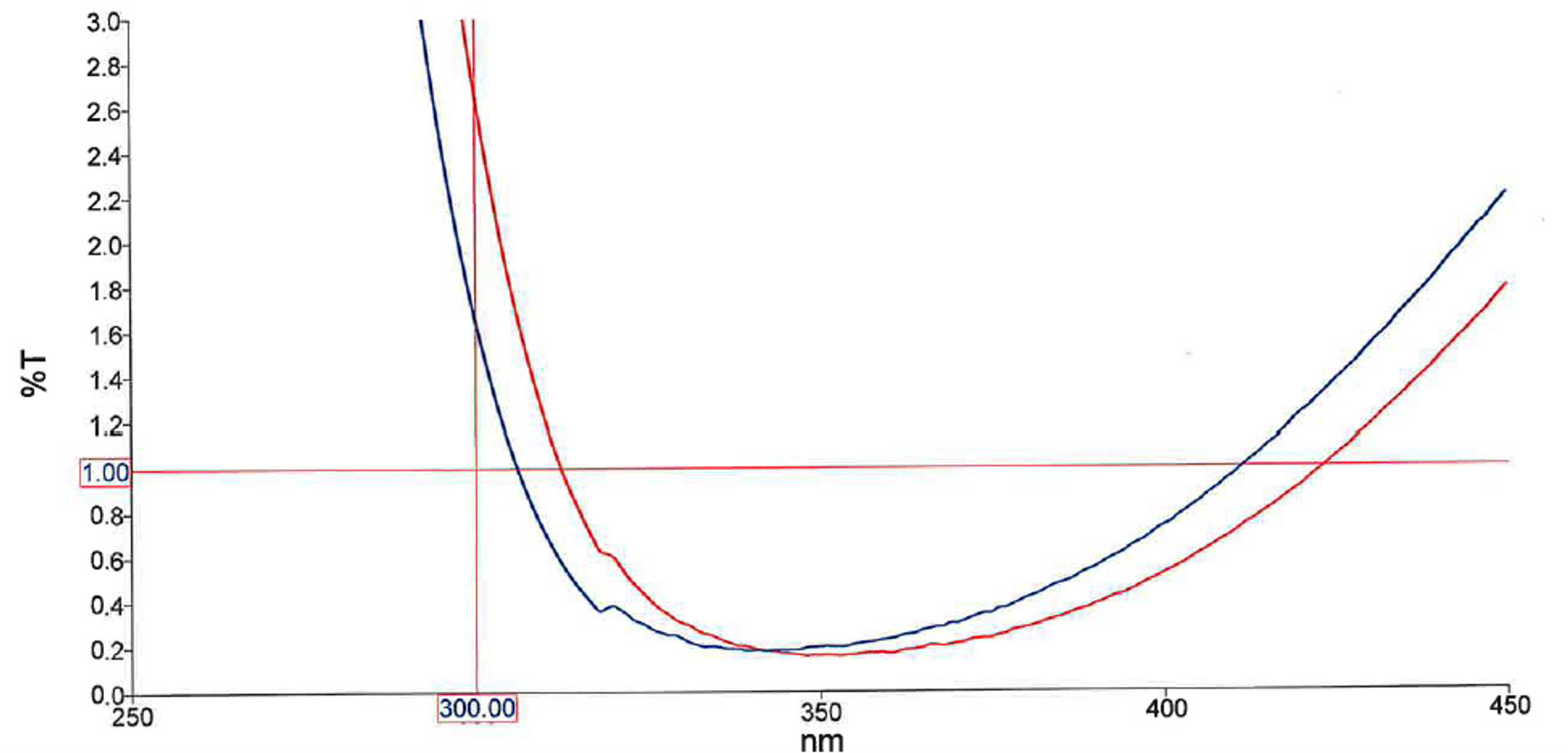

Example AR Coating Curve (Guidance only)
