AODF 4120-3 Deflector
A TeO₂ 413nm visible acousto-optic deflector with 3 mm aperture, 120 MHz centre frequency, 50 MHz RF bandwidth and <0.3 W RF power for laser beam steering and precision optical scanning.
Full Product Description- Stock Code:
- 97-02799-02
- Minimum Wavelength (nm):
- 413
- Maximum Wavelength (nm):
- 413
- Scan Angle (mrad):
- 31.8
- Center Frequency (MHz):
- 120
- RF Bandwidth (MHz):
- 50
Product description
The G&H AODF 4120-3 TeO₂ 413nm Visible Acousto-Optic Deflector is designed for beam control applications requiring reliable optical deflection in the visible spectral region. It uses TeO₂ as the acousto-optic medium and operates in a shear, off-axis acoustic mode.
The AODF 4120-3 is specified with horizontal input polarization and vertical output polarization, supporting defined optical integration within visible laser beam steering and scanning systems. Its RF configuration is designed around a 120 MHz centre frequency, with impedance matching specified across the operating frequency range.
With its compact active aperture, low RF power requirement and defined diffraction performance, the AODF 4120-3 is suitable for specialist visible laser systems, scientific instrumentation and OEM photonics platforms requiring precise acousto-optic beam control.
Key features
- Supports visible laser beam steering in precision optical systems
- Enables optical scanning and beam positioning in visible spectral region photonics platforms
- TeO₂ acousto-optic medium supports efficient visible laser beam deflection
- Suitable for OEM laser systems requiring controlled acousto-optic beam movement
- Compact aperture design supports integration into smaller optical beam paths
- Designed for scientific instrumentation where repeatable visible beam deflection is required
- Supports beam control applications where low RF power operation is beneficial
- Defined input and output polarization supports predictable optical integration
- Suitable for specialist visible laser platforms requiring controlled first-order beam output
- Designed for integration into optical systems where RF matching and beam alignment are important
Specifications
| Name | Value |
|---|---|
| Stock Code | 97-02799-02 |
| Model | AODF 4120-3 |
| Spectral Region | Visible |
| Minimum Wavelength (nm) | 413 |
| Maximum Wavelength (nm) | 413 |
| Scan Angle (mrad) | 31.8 |
| No. of Resolvable Spots | 154 |
| Center Frequency (MHz) | 120 |
| RF Bandwidth (MHz) | 50 |
| Active Aperture Height (mm) | 3 |
| Active Aperture Length (mm) | 3 |
| Polarization (relative to base) | Horizontal In / Vertical Out |
| Optical Material | TeO2 |
| Acoustic Velocity (mm/μs) | 0.65 |
| RF Power (W) | 0.3 |
| Recommended RF Driver | 6000 Series Driver |
(Values for Guidance Only - refer to datasheet where available)

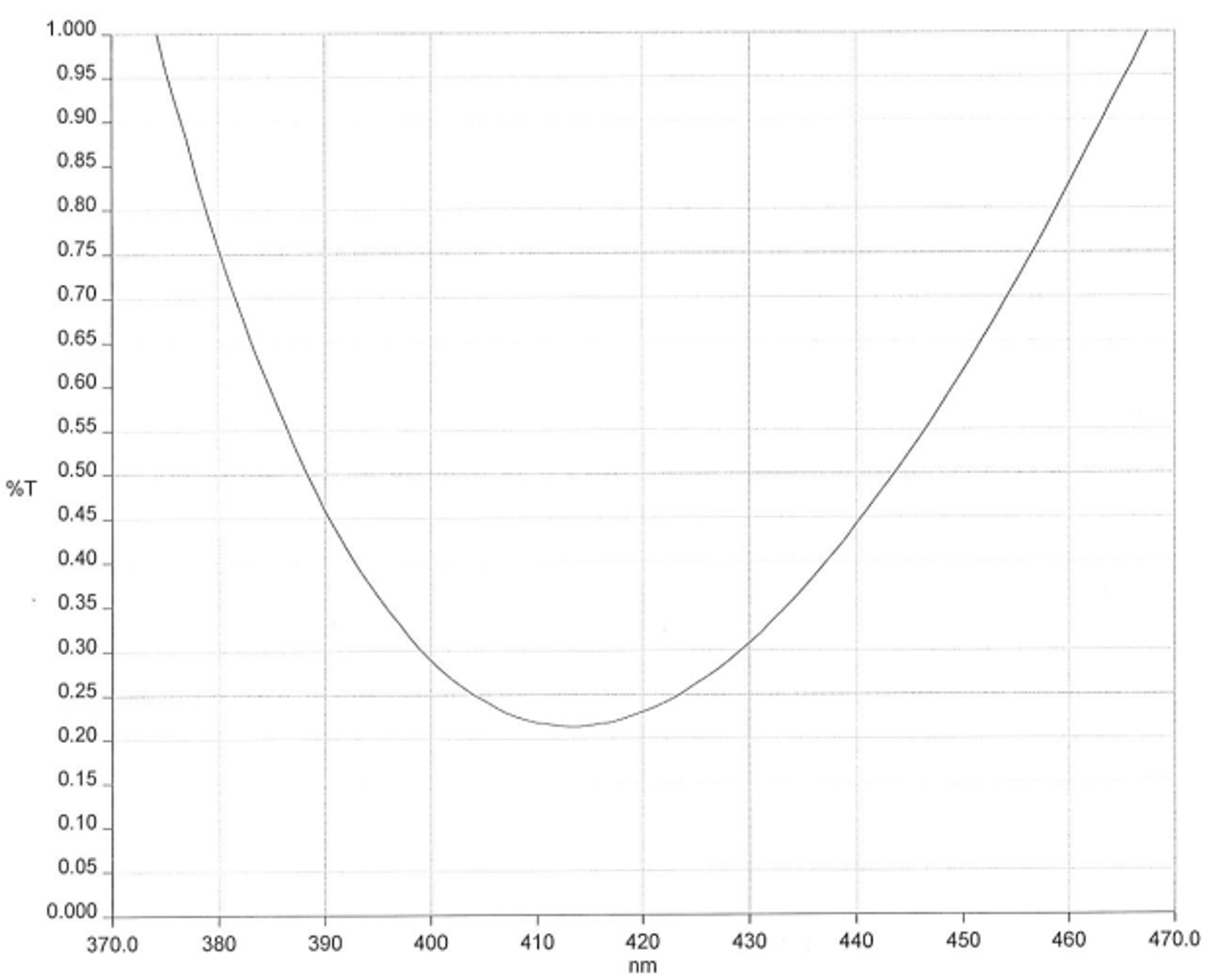

Example AR Coating Curve (Guidance only)
