AODF 4140 Deflector
A crystal quartz acousto-optic deflector designed for visible green laser beam steering across the 515–532nm wavelength range. 140 MHz centre frequency, 55 MHz RF bandwidth and 7 mm active aperture.
Full Product Description- Stock Code:
- 97-03271-03
- Minimum Wavelength (nm):
- 515
- Maximum Wavelength (nm):
- 532
- Scan Angle (mrad):
- 5
- Center Frequency (MHz):
- 140
- RF Bandwidth (MHz):
- 55
Product description
The G&H AODF 4140 Quartz 532nm Visible Acousto-Optic Deflector is designed for beam steering and optical scanning applications in the visible green spectral region. It uses crystal quartz as the acousto-optic medium and operates in a longitudinal acoustic mode.
The AODF 4140 is specified for 515–532nm operation, with both input and output polarization at 90° to the mounting plane. Its 2 element phased array design supports controlled acousto-optic deflection, while the water-cooled construction supports integration into active laser systems where thermal management is required.
With a 7 mm active aperture, nominal diffraction efficiency and defined scan angle at 532nm, the AODF 4140 is suitable for visible green laser systems, optical instrumentation and OEM photonics platforms requiring stable beam control.
Key features
- Supports visible green laser beam steering across the 515–532nm wavelength range
- Enables controlled optical scanning in precision photonics systems
- Crystal quartz AO medium supports reliable visible wavelength operation
- 2 element phased array design supports controlled acousto-optic beam deflection
- Water-cooled construction supports use in active laser systems
- Suitable for OEM laser platforms requiring stable beam positioning
- Defined input and output polarization supports predictable optical integration
- Supports optical instrumentation where repeatable beam movement is required
- Designed for applications where aperture, diffraction efficiency and beam control are important
- Supports specialist photonics systems using 532nm laser sources
Specifications
| Name | Value |
|---|---|
| Stock Code | 97-03271-03 |
| Model | AODF 4140 |
| Spectral Region | Visible |
| Minimum Wavelength (nm) | 515 |
| Maximum Wavelength (nm) | 532 |
| Scan Angle (mrad) | 5 |
| No. of Resolvable Spots | 45 |
| Center Frequency (MHz) | 140 |
| RF Bandwidth (MHz) | 55 |
| Active Aperture Height (mm) | 7 |
| Active Aperture Length (mm) | 7 |
| Polarization (relative to base) | Vertical |
| Optical Material | Crystal Quartz |
| Acoustic Velocity (mm/μs) | 5.74 |
| RF Power (W) | 50 |
| Recommended RF Driver | 6000 Series Driver |
(Values for Guidance Only - refer to datasheet where available)

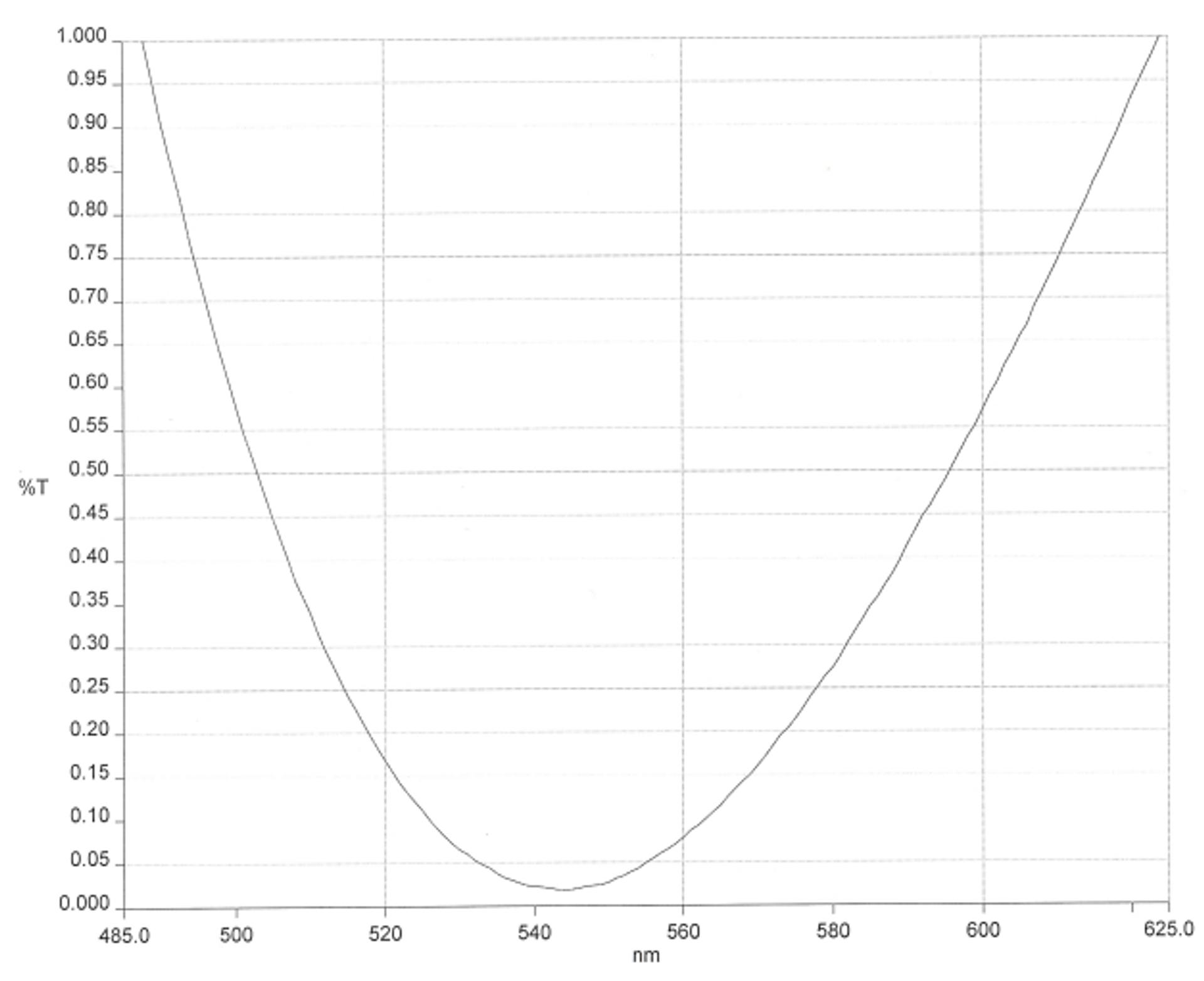

Example AR Coating Curve (Guidance only)
