AOMO 3080-1912 Modulator
The AOMO 3080-1912 is a compact near-to-mid infrared acousto-optic modulator using tellurium dioxide, designed for telecom-wavelength photonics systems where small beam handling, low optical feedback and clean switching are important.
Full Product Description- Stock Code:
- 97-03199-01
- Minimum Wavelength (nm):
- 1320
- Maximum Wavelength (nm):
- 1820
- Center Frequency (MHz):
- 80
- RF Bandwidth (MHz):
- 15
Product description
The AOMO 3080-1912 provides controlled modulation for compact infrared laser systems where precise beam gating, optical switching and intensity control are required. Its tellurium dioxide acousto-optic material supports efficient beam interaction, helping deliver reliable performance in small-beam photonics assemblies.
This modulator is well suited to telecom-wavelength optical systems where compact aperture size, low reflectivity and clean beam separation are important for integration. Random polarisation support, high contrast switching and low optical loss help support stable beam control in optical test platforms, laboratory photonics, instrumentation and specialist infrared systems.
Key features
- Compact near-to-mid infrared acousto-optic modulator for telecom-wavelength laser control
- Uses tellurium dioxide acousto-optic material for efficient beam interaction
- Designed for small beam paths and compact optical layouts
- Supports beam gating, optical switching and intensity modulation
- Low reflectivity helps reduce unwanted optical feedback
- Low optical loss helps preserve available laser power
- High contrast switching supports clean laser on/off control
- Defined beam separation supports practical optical routing and alignment
- Random polarisation support provides flexibility in system integration
- Helps manage optical timing, beam delivery and laser power
- Suitable for optical test platforms, laboratory photonics and instrumentation
- Supports telecom photonics and specialist infrared laser systems
- Ideal for applications requiring compact, repeatable infrared beam control
Specifications
| Name | Value |
|---|---|
| Stock Code | 97-03199-01 |
| Model | AOMO 3080-1912 |
| Spectral Region | Near-Mid IR |
| Minimum Wavelength (nm) | 1320 |
| Maximum Wavelength (nm) | 1820 |
| Separation Angle at Center Wavelength (mrad) | 29.9 |
| Center Frequency (MHz) | 80 |
| RF Bandwidth (MHz) | 15 |
| Rise Time (ns/mm) | 159 |
| Active Aperture Height (mm) | 0.23 |
| Active Aperture Length (mm) | 1 |
| Optical Material | TeO₂ |
| Acoustic Velocity (mm/µs) | 4.2 |
| Recommended RF Driver | 3910 Series |
(Values for Guidance Only - refer to datasheet where available)
Performance Vs Wavelength
| Wavelength | 1550 nm |
|---|---|
| Saturation RF power | 2 W |
| Bragg angle | 14.8 mr |
| Beam separation | 29.6 mr |
Performance vs beam diameter
| Beam Diameter | 180 μm |
|---|---|
| At wavelength | 1550 nm |
| Diffraction efficiency | 80% |
| Rise time | 31 ns |
NOTE: All Specifications above are "Typical Performance" values for guidance only.

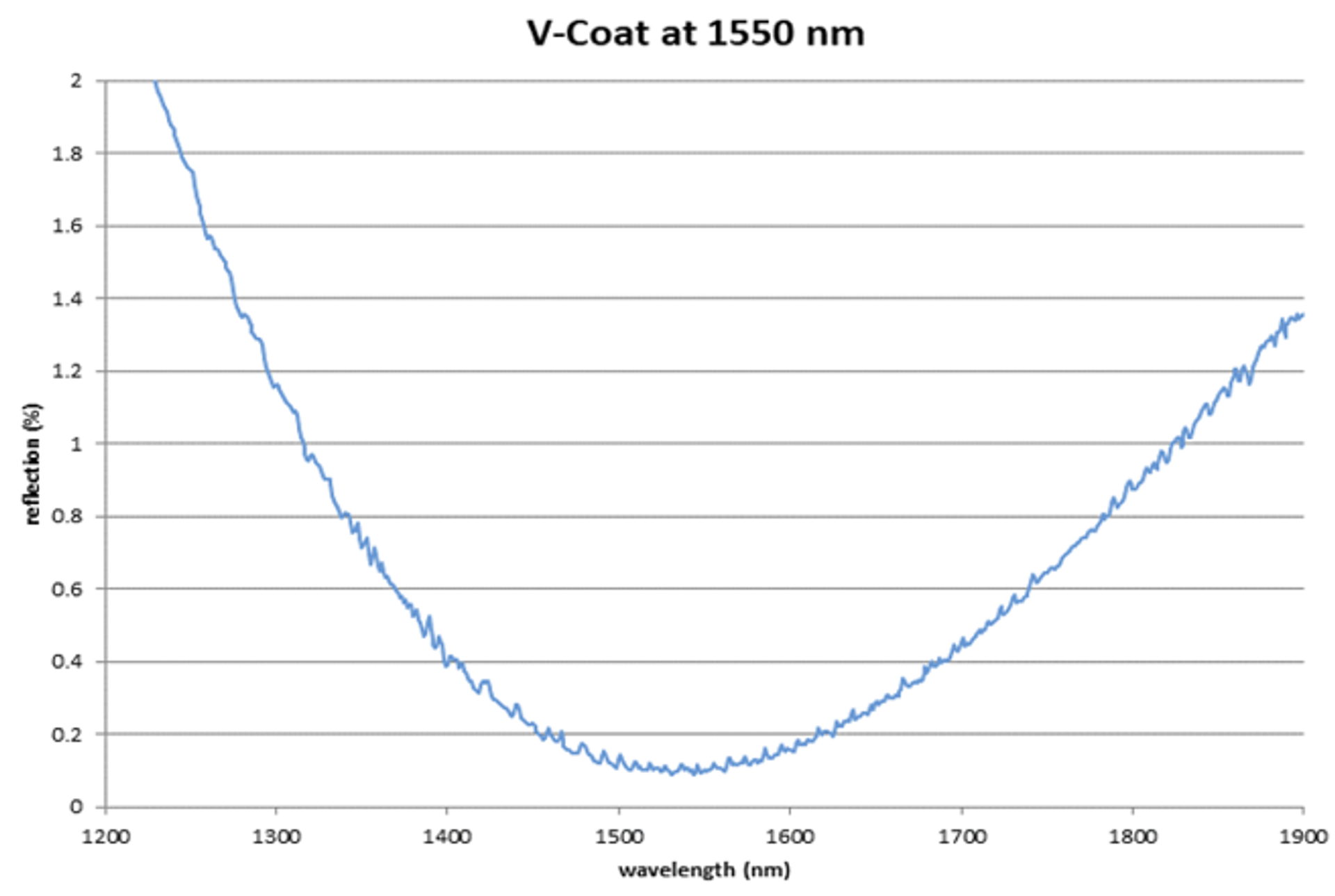

Example AR Coating Curve (Guidance only)
