AOMO 3080-199 Modulator
The AOMO 3080-199 is a near-infrared acousto-optic modulator using tellurium dioxide, designed for precise 1064 nm laser control in systems that require stable beam gating, optical switching and intensity modulation with larger beam handling.
Full Product Description- Stock Code:
- 97-03012-01
- Minimum Wavelength (nm):
- 875
- Maximum Wavelength (nm):
- 1250
- Center Frequency (MHz):
- 80
- RF Bandwidth (MHz):
- 20
Product description
The AOMO 3080-199 provides controlled modulation for 1064 nm near-infrared laser systems where beam stability, optical throughput and reliable switching performance are important. Its tellurium dioxide acousto-optic material supports efficient interaction with NIR laser beams, helping deliver consistent beam control in precision optical systems.
Designed for larger-beam 1064 nm applications, this modulator helps manage beam delivery, optical power and timing in laser processing, optical test platforms, scientific laser systems, laboratory photonics and OEM instrumentation. Its conduction-cooled design, low optical loss and high contrast switching support stable integration where thermal management and clean beam control are key requirements.
Key features
- Near-infrared acousto-optic modulator for precise 1064 nm laser control
- Uses tellurium dioxide acousto-optic material for efficient NIR beam interaction
- Designed for larger near-infrared beam handling
- Supports stable beam gating, optical switching and intensity modulation
- Helps manage optical power, beam delivery and laser timing
- Conduction-cooled design supports thermal management through the mounting interface
- Low optical loss helps preserve available laser power within the system
- High contrast switching helps reduce unwanted optical leakage
- Suitable for laser processing, optical test platforms and scientific laser systems
- Supports laboratory photonics, OEM instrumentation and precision NIR optical platforms
- Ideal for applications requiring stable, repeatable 1064 nm beam control
Specifications
| Name | Value |
|---|---|
| Stock Code | 97-03012-01 |
| Model | AOMO 3080-199 |
| Spectral Region | Near IR |
| Minimum Wavelength (nm) | 875 |
| Maximum Wavelength (nm) | 1250 |
| Separation Angle at Center Wavelength (mrad) | 20.2 |
| Center Frequency (MHz) | 80 |
| RF Bandwidth (MHz) | 20 |
| Rise Time (ns/mm) | 159 |
| Active Aperture Height (mm) | 2.5 |
| Active Aperture Length (mm) | 2 |
| Optical Material | TeO₂ |
| Acoustic Velocity (mm/µs) | 4.2 |
| Recommended RF Driver | 3910 Series |
(Values for Guidance Only - refer to datasheet where available)
Performance Vs Wavelength
Performance vs beam diameter
| Wavelength | 1064 nm |
|---|---|
| Saturation RF power | 2.8 W |
| Bragg angle | 10.1 mr |
| Beam separation | 20.2 mr |
| Beam Diameter | 2000 μm |
|---|---|
| At wavelength | 1064 nm |
| Diffraction efficiency | 85% |
| Rise time | 318 ns |
NOTE: All Specifications above are "Typical Performance" values for guidance only.

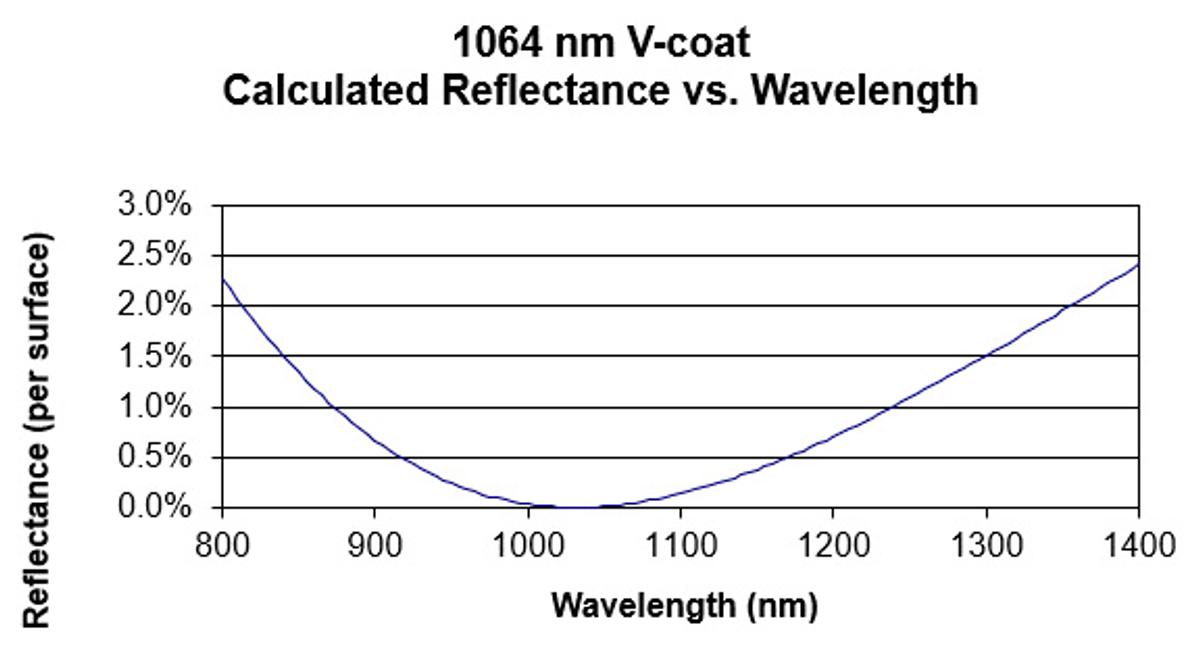

Example AR Coating Curve (Guidance only)
