AOMO 3080-1990 Modulator
The AOMO 3080-1990 is a compact near-infrared acousto-optic modulator using tellurium dioxide, designed for precise laser beam control in optical systems that require reliable switching, modulation and power management.
Full Product Description- Stock Code:
- 97-03466-01
- Minimum Wavelength (nm):
- 750
- Maximum Wavelength (nm):
- 1064
- Center Frequency (MHz):
- 80
- RF Bandwidth (MHz):
- 20
Product description
The AOMO 3080-1990 provides precise control of near-infrared laser beams, making it suitable for applications where fast, repeatable optical switching or intensity modulation is required. Its tellurium dioxide acousto-optic material supports efficient beam interaction, helping deliver stable performance in compact laboratory, industrial and OEM photonics systems.
Designed for use in near-infrared laser systems, this modulator helps control beam delivery, manage optical power and support accurate timing in demanding applications such as imaging, sensing, instrumentation and laser processing.
Key features
- Compact acousto-optic modulator for near-infrared laser control
- Uses tellurium dioxide acousto-optic material for efficient beam interaction
- Supports precise beam switching, gating and intensity modulation
- Designed for reliable integration into OEM and laboratory optical systems
- Helps manage laser power and beam delivery in photonics applications
- Suitable for imaging, sensing, instrumentation and laser processing systems
- Provides stable optical performance for repeatable modulation tasks
- Supports compact optical layouts where space and alignment are important
- Ideal for applications requiring controlled near-infrared beam handling
Specifications
| Name | Value |
|---|---|
| Stock Code | 97-03466-01 |
| Model | AOMO 3080-1990 |
| Spectral Region | Near IR |
| Minimum Wavelength (nm) | 750 |
| Maximum Wavelength (nm) | 1064 |
| Separation Angle at Center Wavelength (mrad) | 17.3 |
| Center Frequency (MHz) | 80 |
| RF Bandwidth (MHz) | 20 |
| Rise Time (ns/mm) | 159 |
| Active Aperture Height (mm) | 1 |
| Active Aperture Length (mm) | 2 |
| Optical Material | TeO₂ |
| Acoustic Velocity (mm/µs) | 4.2 |
| Recommended RF Driver | 3910 Series |
(Values for Guidance Only - refer to datasheet where available)
Performance Vs Wavelength
| Wavelength | 750 nm | 900 nm | 1064 nm |
|---|---|---|---|
| Saturation RF power | 0.7 W | 1 W | 1.3 W |
| Bragg angle | 7.1 mr | 8.6 mr | 10 mr |
| Beam separation | 14.2 mr | 17.2 mr | 20.26 mr |
Performance vs beam diameter
| Beam Diameter | 600 μm | 600 μm | 600 μm |
|---|---|---|---|
| At wavelength | 750 nm | 900 nm | 1064 nm |
| Diffraction efficiency | >85% | >85% | >85% |
| Rise time | 96 ns | 96 ns | 96 ns |
NOTE: All Specifications above are "Typical Performance" values for guidance only.

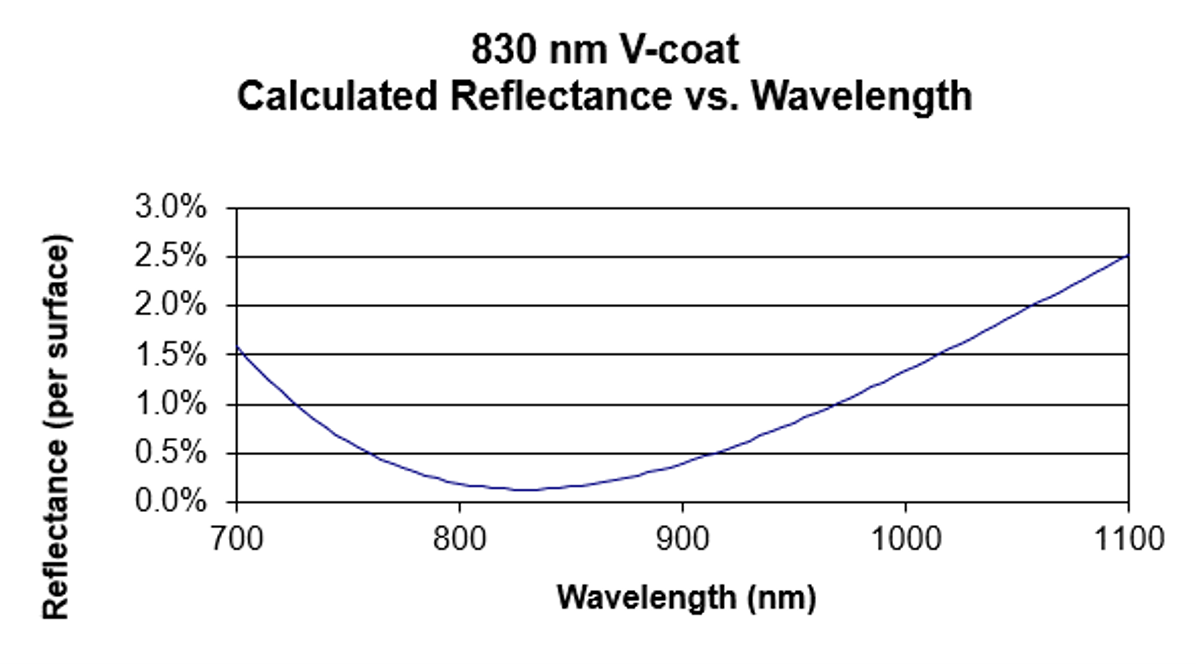

Example AR Coating Curve (Guidance only)
