AOMO 3080-1990 1.064UM Modulator
The AOMO 3080-1990 1.064UM is a near-infrared acousto-optic modulator using tellurium dioxide, designed for precise 1064 nm laser control in systems that require larger beam handling, stable optical switching, beam gating and intensity modulation.
Full Product Description- Stock Code:
- 97-03052-01
- Minimum Wavelength (nm):
- 875
- Maximum Wavelength (nm):
- 1250
- Center Frequency (MHz):
- 80
- RF Bandwidth (MHz):
- 20
Product description
The AOMO 3080-1990 1.064UM provides controlled modulation for 1064 nm near-infrared laser systems where larger beam paths, optical throughput and stable switching performance are important. Its tellurium dioxide acousto-optic material supports efficient interaction with NIR laser beams, helping deliver reliable control in precision optical systems.
Designed for single-wavelength 1.064 µm laser platforms, this modulator helps manage beam delivery, optical power and timing in laser processing, optical test platforms, scientific laser systems, laboratory photonics and OEM instrumentation. Its larger aperture, conduction-cooled mounting, low optical loss and high contrast switching support stable integration where clean beam control and thermal management are key design requirements.
Key features
- Near-infrared acousto-optic modulator for precise 1064 nm laser control
- Uses tellurium dioxide acousto-optic material for efficient NIR beam interaction
- Designed for single-wavelength 1.064 µm laser systems
- Larger active aperture supports broader near-infrared beam paths
- Supports stable beam gating, optical switching and intensity modulation
- Helps manage optical power, beam delivery and laser timing
- Conduction-cooled mounting supports thermal management through the system interface
- Low optical loss helps preserve available laser power
- High contrast switching helps reduce unwanted optical leakage
- Anti-reflection coated optics support efficient 1064 nm beam transmission
- Suitable for laser processing, optical test platforms and scientific laser systems
- Supports laboratory photonics, OEM instrumentation and precision NIR optical platforms
- Ideal for applications requiring stable, repeatable 1064 nm beam control with larger beam handling
Specifications
| Name | Value |
|---|---|
| Stock Code | 97-03052-01 |
| Model | AOMO 3080-1990 1.064UM |
| Spectral Region | Near IR |
| Minimum Wavelength (nm) | 875 |
| Maximum Wavelength (nm) | 1250 |
| Separation Angle at Center Wavelength (mrad) | 20.2 |
| Center Frequency (MHz) | 80 |
| RF Bandwidth (MHz) | 20 |
| Rise Time (ns/mm) | 159 |
| Active Aperture Height (mm) | 4 |
| Active Aperture Length (mm) | 4 |
| Optical Material | TeO₂ |
| Acoustic Velocity (mm/µs) | 4.2 |
| Recommended RF Driver | 3910 Series |
(Values for Guidance Only - refer to datasheet where available)
Performance Vs Wavelength
| Wavelength | 1064 nm |
|---|---|
| Saturation RF power | 3.5 W |
| Bragg angle | 10.1 mr |
| Beam separation | 20.2 mr |
Performance vs beam diameter
| Beam Diameter | 2000 μm |
|---|---|
| At wavelength | 1064 nm |
| Diffraction efficiency | 85% |
| Rise time | 318 ns |
NOTE: All Specifications above are "Typical Performance" values for guidance only.

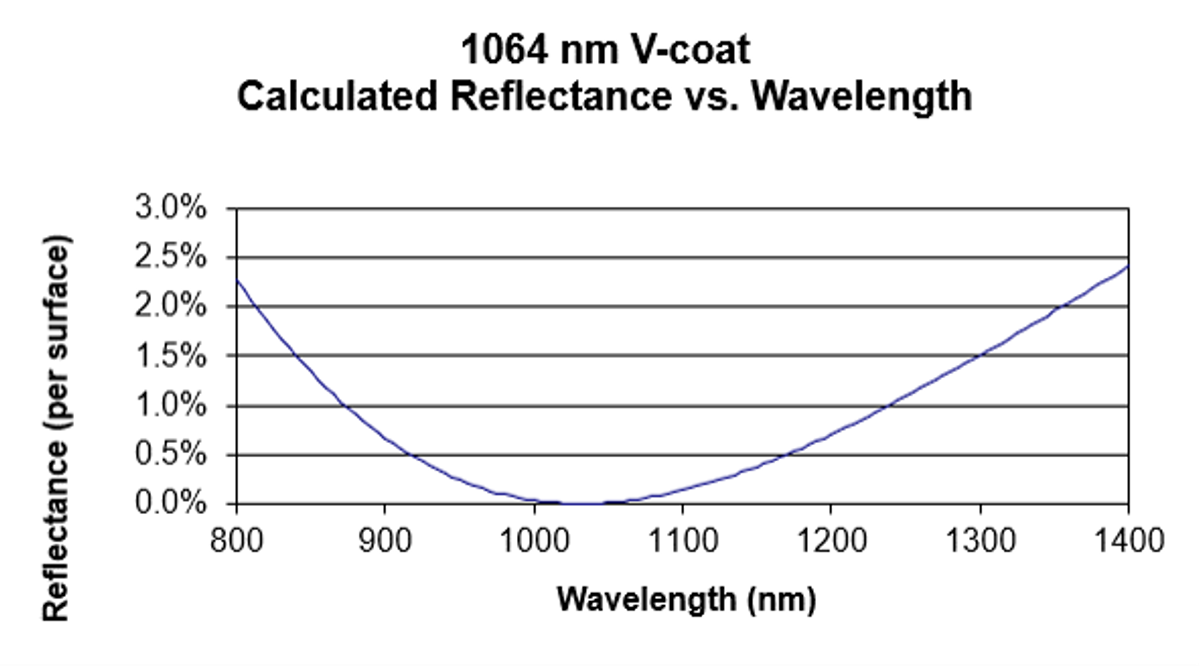

Example AR Coating Curve (Guidance only)
