AOMO 3095-1990 Modulator
The AOMO 3095-1990 is a red-to-extended near-infrared acousto-optic modulator using tellurium dioxide, designed for laser systems where modulation, beam positioning and frequency-tuned diffraction angle control are important.
Full Product Description- Stock Code:
- 97-03442-01
- Minimum Wavelength (nm):
- 680
- Maximum Wavelength (nm):
- 1300
- Center Frequency (MHz):
- 95
- RF Bandwidth (MHz):
- 60
Product description
The AOMO 3095-1990 provides controlled modulation and tunable beam control for red and near-infrared laser systems. Its tellurium dioxide acousto-optic material supports efficient beam interaction, helping deliver stable optical performance across precision photonics and laser instrumentation platforms.
This modulator is well suited to systems where the diffracted beam angle needs to be adjusted as part of the optical design. Defined beam pointing behaviour, chromatic spread guidance and moderate beam handling support integration into optical test platforms, scientific laser systems, laboratory photonics and specialist near-infrared applications where both modulation and beam positioning are required.
Key features
- Red-to-extended near-infrared acousto-optic modulator for precision laser control
- Uses tellurium dioxide acousto-optic material for efficient beam interaction
- Supports beam gating, optical switching and intensity modulation
- Frequency-tuned diffraction angle control supports adjustable beam positioning
- Designed for systems where diffracted beam angle is part of the optical layout
- Defined beam pointing behaviour supports stable optical alignment
- Chromatic spread guidance supports multi-wavelength optical design considerations
- Moderate beam handling supports compact near-infrared optical systems
- Helps manage optical timing, beam delivery and laser power
- Suitable for optical test platforms, scientific laser systems and laboratory photonics
- Supports specialist near-infrared instrumentation and precision photonics assemblies
- Ideal for applications requiring both laser modulation and controlled beam positioning
Specifications
| Name | Value |
|---|---|
| Stock Code | 97-03442-01 |
| Model | AOMO 3095-1990 |
| Spectral Region | Red-Near IR |
| Minimum Wavelength (nm) | 680 |
| Maximum Wavelength (nm) | 1300 |
| Separation Angle at Center Wavelength (mrad) | 22.4 |
| Center Frequency (MHz) | 95 |
| RF Bandwidth (MHz) | 60 |
| Rise Time (ns/mm) | 159 |
| Active Aperture Height (mm) | 1.3 |
| Active Aperture Length (mm) | 1.3 |
| Optical Material | TeO₂ |
| Acoustic Velocity (mm/µs) | 4.2 |
| Recommended RF Driver | 3910 Series |
(Values for Guidance Only - refer to datasheet where available)
Performance vs wavelength
| Wavelength | 680 nm | 1064 nm | 1300 nm |
|---|---|---|---|
| Operational RF power | 0.86 W | 2.2 W | 2.2 W |
| Bragg angle | 10.13 mr | 10.13 mr | 10.13 mr |
| Beam separation | 20.26 mr | 20.26 mr | 20.26 mr |
Performance vs beam diameter
| Beam diameter | 800 μm | 800 μm | 800 μm |
|---|---|---|---|
| Wavelength | 680 nm | 1064 nm | 1300 nm |
| Diffraction efficiency | 90% | 90% | 80% |
| Rise time | 128 ns | 128 ns | 128 ns |
NOTE: All Specifications above are "Typical Performance" values for guidance only.

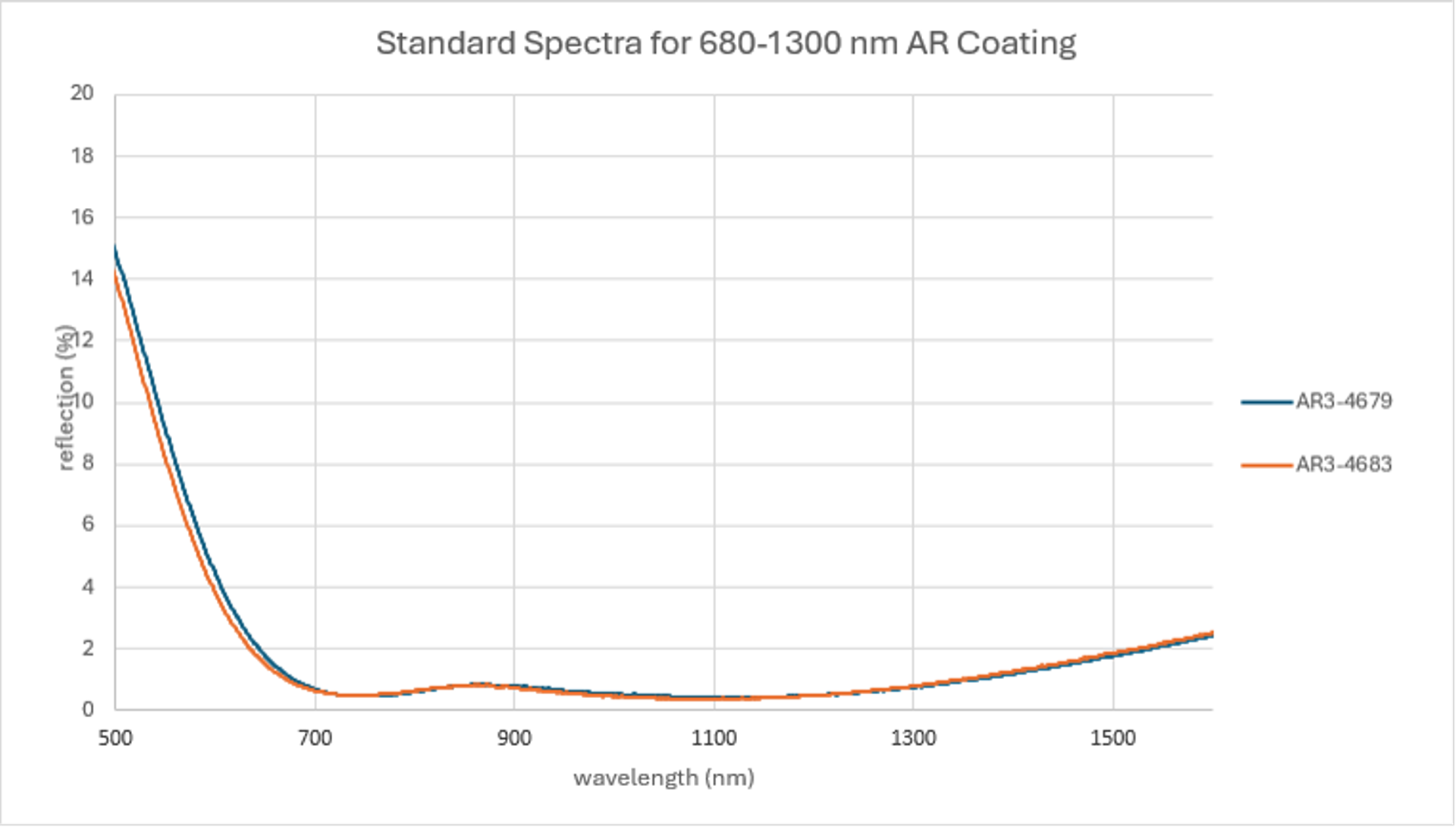

Example AR Coating Curve (Guidance only)
