AOMO 3110-191 Modulator
The AOMO 3110-191 is a near-infrared acousto-optic modulator using tellurium dioxide, designed for precision laser systems where low reflectivity, clean switching and controlled undiffracted beam performance are important.
Full Product Description- Stock Code:
- 97-02248-51
- Minimum Wavelength (nm):
- 875
- Maximum Wavelength (nm):
- 1250
- Center Frequency (MHz):
- 110
- RF Bandwidth (MHz):
- 10
Product description
The AOMO 3110-191 provides controlled modulation for near-infrared laser systems where predictable beam behaviour and stable optical performance are required. Its tellurium dioxide acousto-optic material supports efficient beam interaction, helping deliver reliable modulation in precision laser and photonics platforms.
This modulator is well suited to systems where the undiffracted beam remains an important part of the optical design. Its rectangular aperture supports controlled beam handling, while low reflectivity, high contrast switching and special testing provisions help support clean beam control in optical test platforms, scientific laser systems, laboratory photonics and OEM instrumentation.
Key features
- Near-infrared acousto-optic modulator for precision laser control
- Uses tellurium dioxide acousto-optic material for efficient beam interaction
- Rectangular aperture supports controlled beam handling in NIR optical systems
- Designed for applications where undiffracted beam performance is important
- Special testing provisions support predictable zero-order beam behaviour
- Low reflectivity helps reduce unwanted optical feedback
- High contrast switching supports clean laser on/off control
- Supports stable beam gating, optical switching and intensity modulation
- Helps manage optical power, beam delivery and laser timing
- Suitable for optical test platforms, scientific laser systems and laboratory photonics
- Supports OEM instrumentation and specialist near-infrared laser platforms
- Ideal for systems requiring clean switching and repeatable NIR beam control
Specifications
| Name | Value |
|---|---|
| Stock Code | 97-02248-51 |
| Model | AOMO 3110-191 |
| Spectral Region | Near IR |
| Minimum Wavelength (nm) | 875 |
| Maximum Wavelength (nm) | 1250 |
| Separation Angle at Center Wavelength (mrad) | 27.8 |
| Center Frequency (MHz) | 110 |
| RF Bandwidth (MHz) | 10 |
| Rise Time (ns/mm) | 159 |
| Active Aperture Height (mm) | 1.75 |
| Active Aperture Length (mm) | 2.5 |
| Optical Material | TeO₂ |
| Acoustic Velocity (mm/µs) | 4.2 |
| Recommended RF Driver | 3910 Series |
(Values for Guidance Only - refer to datasheet where available)
Specifications
Performance vs wavelength
| Wavelength | 1060 nm |
|---|---|
| Saturation RF power | 2.5 W |
| Bragg angle | 13.9 mr |
| Beam separation | 27.8 mr |
Performance vs beam diameter
| Beam diameter | 1100 μm |
|---|---|
| Wavelength | 1060 nm |
| Diffraction efficiency | 85% |
| Rise time | 200 ns |
| Modulation bandwidth | 3 |
NOTE: All Specifications above are "Typical Performance" values for guidance only.

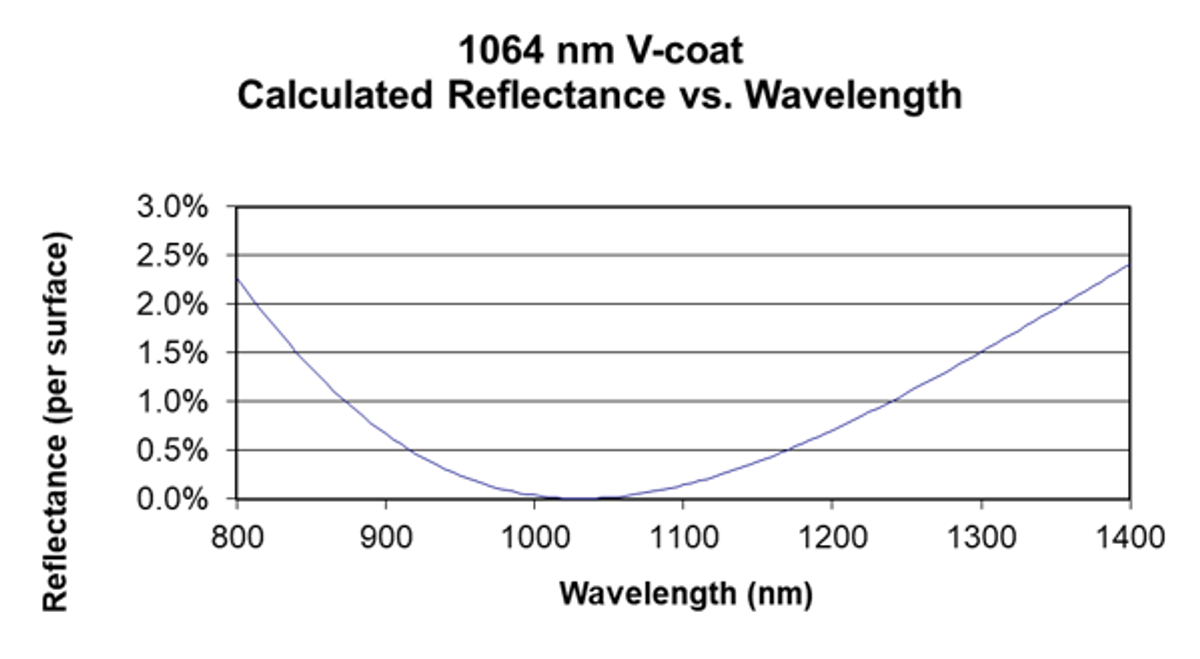

Example AR Coating Curve (Guidance only)
