AOMO 3110-1997 Modulator
The AOMO 3110-1997 is a large-aperture green acousto-optic modulator using crystalline quartz, designed for precise laser control in optical systems that require stable switching, beam gating and intensity modulation with larger beam handling.
Full Product Description- Stock Code:
- 97-03290-01
- Minimum Wavelength (nm):
- 490
- Maximum Wavelength (nm):
- 620
- Center Frequency (MHz):
- 110
- RF Bandwidth (MHz):
- 15
Product description
The AOMO 3110-1997 provides controlled modulation for green laser systems where larger beam diameter, optical stability and low-loss performance are important. Its crystalline quartz acousto-optic material supports reliable green laser modulation, while the larger square aperture helps accommodate broader beam paths in precision optical systems.
Designed for demanding green laser platforms, this modulator helps manage beam delivery, optical power and timing in scientific laser systems, optical test equipment, analytical instrumentation, laboratory photonics and OEM laser platforms. Its water-channel construction, low optical loss and high contrast switching make it well suited to applications where thermal management, beam clearance and clean optical switching are key requirements.
Key features
- Large-aperture acousto-optic modulator for green laser control
- Uses crystalline quartz acousto-optic material for stable green beam interaction
- Designed for larger green laser beam handling and beam-clearance requirements
- Square aperture supports balanced beam paths in precision optical systems
- Supports stable beam gating, optical switching and intensity modulation
- Helps manage optical power, beam delivery and laser timing
- Water-channel construction supports thermal management in demanding laser platforms
- Low optical loss helps preserve available green laser power
- High contrast switching helps reduce unwanted optical leakage
- Anti-reflection coated optics support efficient green beam transmission
- Suitable for scientific laser systems, optical test equipment and analytical instrumentation
- Supports laboratory photonics, OEM laser platforms and precision green optical systems
- Ideal for applications where aperture size, thermal control and stable 532 nm modulation are important
Specifications
| Name | Value |
|---|---|
| Stock Code | 97-03290-01 |
| Model | AOMO 3110-1997 |
| Spectral Region | Red-Green |
| Minimum Wavelength (nm) | 490 |
| Maximum Wavelength (nm) | 620 |
| Separation Angle at Center Wavelength (mrad) | 10.6 |
| Center Frequency (MHz) | 110 |
| RF Bandwidth (MHz) | 15 |
| Rise Time (ns/mm) | 116 |
| Active Aperture Height (mm) | 4 |
| Active Aperture Length (mm) | 4 |
| Optical Material | Crystal Quartz |
| Acoustic Velocity (mm/µs) | 5.74 |
| Recommended RF Driver | QC Series |
(Values for Guidance Only - refer to datasheet where available)
Performance vs wavelength
| Wavelength | 532 nm |
|---|---|
| Operational RF power | <15 W |
| Bragg angle | 5.1 mr |
| Beam separation | 10.2 mr |
Performance vs beam diameter
| Beam diameter | 2500 μm |
|---|---|
| Wavelength | 532 nm |
| Diffraction efficiency | >85% |
| Rise time | 291 ns |
NOTE: All Specifications above are "Typical Performance" values for guidance only.

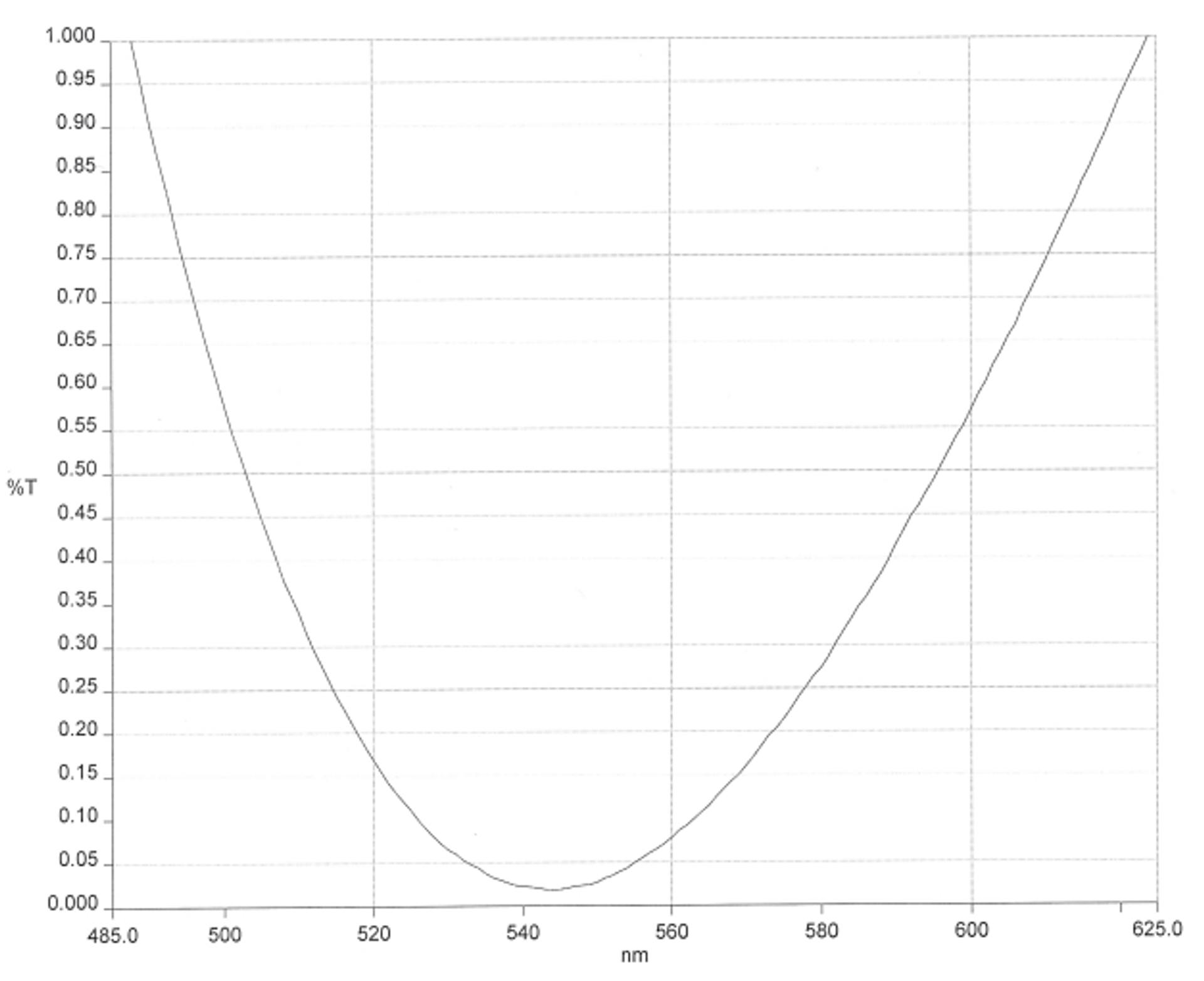

Example AR Coating Curve (Guidance only)
