AOMO 3110-1998 Modulator
The AOMO 3110-1998 is a green acousto-optic modulator using crystalline quartz, designed for precise control of larger laser beams in optical systems that require stable switching, modulation and beam management.
Full Product Description- Stock Code:
- 97-03290-02
- Minimum Wavelength (nm):
- 490
- Maximum Wavelength (nm):
- 620
- Center Frequency (MHz):
- 110
- RF Bandwidth (MHz):
- 15
Product description
The AOMO 3110-1998 provides reliable control of green laser beams, making it suitable for applications where stable optical switching, beam gating or intensity modulation is required. Its crystalline quartz acousto-optic material supports low-loss beam interaction, helping maintain optical throughput in larger-beam photonics systems.
Designed for green laser applications, this modulator helps control beam delivery, manage optical power and support accurate timing in systems such as imaging, microscopy, analytical instrumentation, optical test platforms, laboratory photonics and scientific laser systems.
Key features
- Green acousto-optic modulator for precise laser beam control
- Uses crystalline quartz acousto-optic material for stable, low-loss beam interaction
- Designed for larger green laser beam handling
- Supports controlled beam switching, gating and intensity modulation
- Helps manage optical power, beam delivery and laser timing
- Suitable for imaging, microscopy and analytical instrumentation
- Supports optical test platforms, laboratory photonics and scientific laser systems
- Designed for reliable integration into precision optical systems
- Ideal for applications where aperture size, stability and beam control are important
Specifications
| Name | Value |
|---|---|
| Stock Code | 97-03290-02 |
| Model | AOMO 3110-1998 |
| Spectral Region | Red-Green |
| Minimum Wavelength (nm) | 490 |
| Maximum Wavelength (nm) | 620 |
| Separation Angle at Center Wavelength (mrad) | 10.6 |
| Center Frequency (MHz) | 110 |
| RF Bandwidth (MHz) | 15 |
| Rise Time (ns/mm) | 116 |
| Active Aperture Height (mm) | 3 |
| Active Aperture Length (mm) | 3 |
| Optical Material | Crystal Quartz |
| Acoustic Velocity (mm/µs) | 5.74 |
| Recommended RF Driver | QC Series |
(Values for Guidance Only - refer to datasheet where available)
Performance vs wavelength
| Wavelength | 532 nm |
|---|---|
| Operational RF power | <12 W |
| Bragg angle | 5.1 mr |
| Beam separation | 10.2 mr |
Performance vs beam diameter
| Beam diameter | 1600 μm |
|---|---|
| Wavelength | 532 nm |
| Diffraction efficiency | >85% |
| Rise time | 186 ns |
NOTE: All Specifications above are "Typical Performance" values for guidance only.

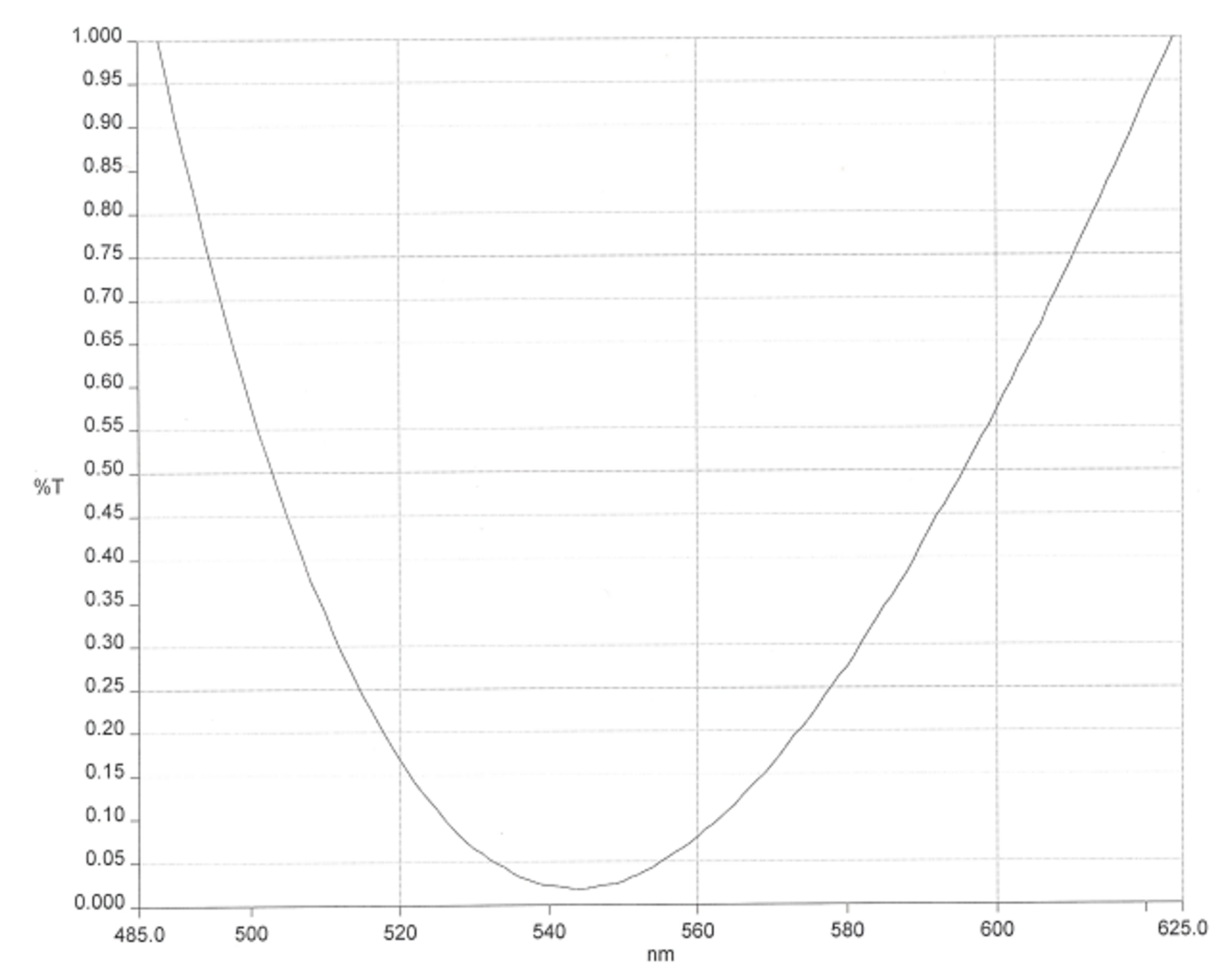

Example AR Coating Curve (Guidance only)
