AOMO 3150 Modulator
The AOMO 3150 is a visible acousto-optic modulator using tellurium dioxide, designed for precise laser modulation across blue, green and red wavelengths in systems that require controlled switching, beam gating and intensity management.
Full Product Description- Stock Code:
- 97-03465-01
- Minimum Wavelength (nm):
- 400
- Maximum Wavelength (nm):
- 700
- Center Frequency (MHz):
- 150
- RF Bandwidth (MHz):
- 15
Product description
The AOMO 3150 provides controlled modulation for visible laser systems where stable beam switching and reliable intensity control are required. Its tellurium dioxide acousto-optic material supports efficient interaction with visible laser beams, while its square aperture helps provide balanced beam handling in compact optical layouts.
Designed for precision visible laser applications, this modulator helps manage beam delivery, optical power and timing in scientific research, analytical instrumentation, microscopy, imaging, optical test and measurement and specialist photonics platforms. Its low optical loss and high contrast switching make it well suited to systems where clean beam control and signal stability are important.
Key features
- Visible acousto-optic modulator for blue, green and red laser systems
- Uses tellurium dioxide acousto-optic material for efficient visible beam interaction
- Square aperture supports balanced beam handling in compact optical systems
- Designed for controlled beam switching, gating and intensity modulation
- Helps manage optical power, beam delivery and laser timing
- Low optical loss supports efficient visible beam transmission
- High contrast switching helps reduce unwanted optical leakage
- Suitable for microscopy, imaging and analytical instrumentation
- Supports optical test and measurement, scientific research and specialist photonics platforms
- Ideal for precision visible laser systems requiring stable modulation and clean beam control
Specifications
| Name | Value |
|---|---|
| Stock Code | 97-03465-01 |
| Model | AOMO 3150 |
| Spectral Region | Vis-Near IR |
| Minimum Wavelength (nm) | 400 |
| Maximum Wavelength (nm) | 700 |
| Separation Angle at Center Wavelength (mrad) | 19.6 |
| Center Frequency (MHz) | 150 |
| RF Bandwidth (MHz) | 15 |
| Rise Time (ns/mm) | 159 |
| Active Aperture Height (mm) | 1.2 |
| Active Aperture Length (mm) | 1.2 |
| Optical Material | TeO₂ |
| Acoustic Velocity (mm/µs) | 4.2 |
| Recommended RF Driver | 3910 Series |
(Values for Guidance Only - refer to datasheet where available)
Performance vs wavelength
| Wavelength | 633 nm |
|---|---|
| Saturation RF power | 0.5 W |
| Bragg angle | 11.3 mr |
| Beam separation | 22.6 mr |
Performance vs beam diameter
| Beam diameter | 700 μm |
|---|---|
| Wavelength | 633 nm |
| Diffraction efficiency | 75% |
| Rise Time | 73 ns |
| Modulation Bandwidth | 4.5 |
NOTE: All Specifications above are "Typical Performance" values for guidance only.

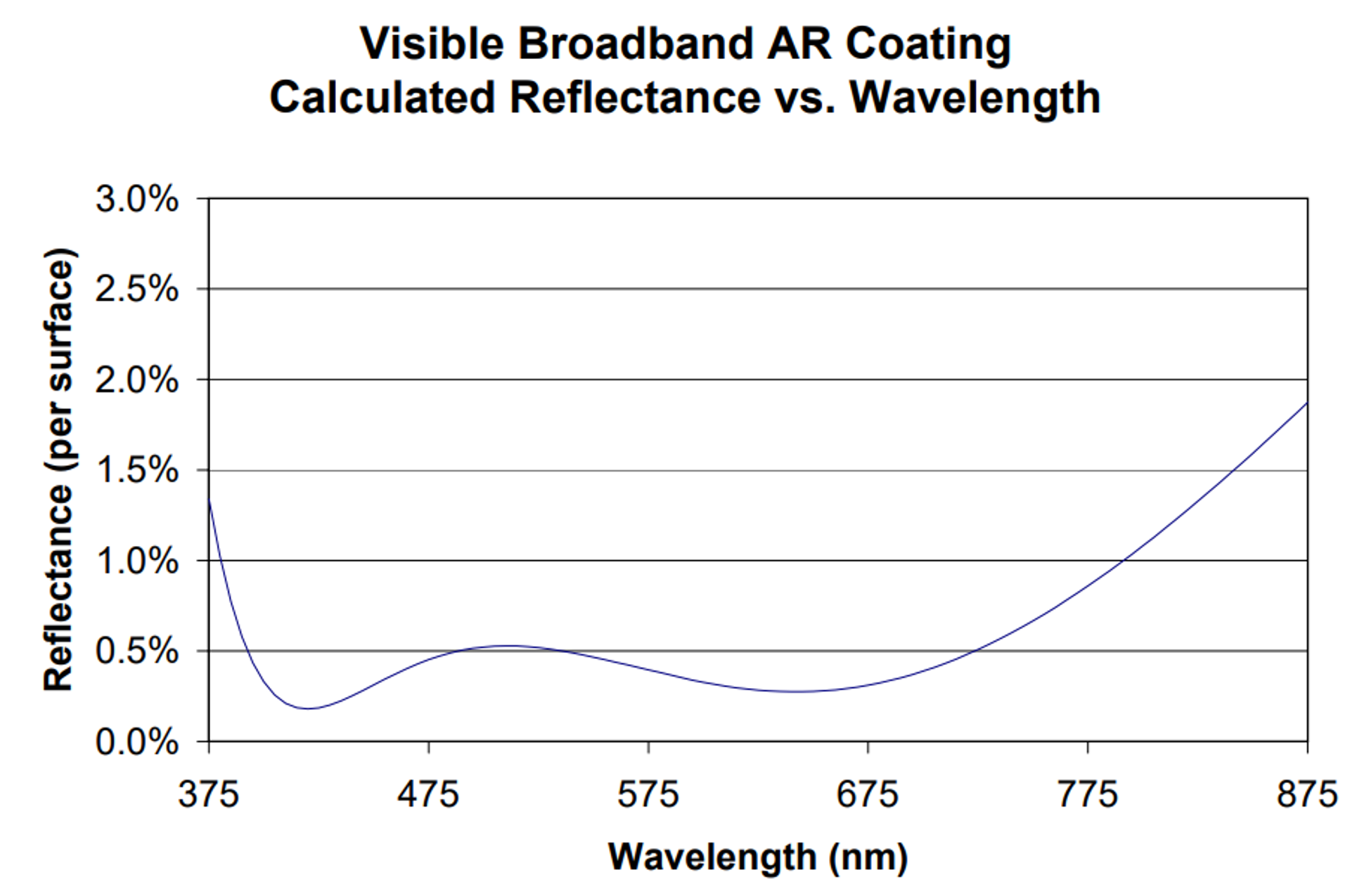

Example AR Coating Curve (Guidance only)
