AOMO 80Mz GE 2.8um Modulator
The AOMO 80Mz GE 2.8um is a compact Germanium acousto-optic modulator designed for Mid-IR laser systems where low insertion loss, clean optical switching and conduction-cooled integration are important.
Full Product Description- Stock Code:
- 97-03497-01
- Minimum Wavelength (nm):
- 2800
- Maximum Wavelength (nm):
- 2800
- Center Frequency (MHz):
- 80
- RF Bandwidth (MHz):
- 4
Product description
The AOMO 80Mz GE 2.8um provides controlled modulation for Mid-IR laser systems where efficient beam transmission, stable switching and compact system integration are required. Its Germanium AO medium supports infrared beam interaction, making it suitable for specialist laser platforms operating beyond visible and near-infrared wavelengths.
This modulator is well suited to compact Mid-IR optical layouts where low insertion loss, high contrast switching and practical beam separation are important for system design. Conduction cooling through the base supports a simpler thermal integration approach than water-cooled variants, while the SMA RF connection supports compact electrical integration in optical test platforms, sensing systems, laboratory photonics and OEM instrumentation.
Key features
- Compact Germanium acousto-optic modulator for Mid-IR laser control
- Designed for specialist infrared laser systems beyond visible and near-infrared operation
- Germanium AO medium supports efficient Mid-IR beam interaction
- Low insertion loss helps preserve available laser power
- High contrast switching supports clean laser on/off control
- Anti-reflection coating helps reduce unwanted surface reflections
- Defined beam separation supports practical optical routing and alignment
- Compact active aperture supports smaller Mid-IR beam paths
- Horizontal polarisation supports predictable optical system integration
- SMA RF connection supports compact electrical integration
- Conduction cooling through the base supports simplified thermal management
- Physical optical path information supports optical layout planning
- Suitable for Mid-IR sensing, optical test platforms and laboratory photonics
- Supports OEM instrumentation and specialist infrared laser systems
- Ideal for applications requiring compact, repeatable Mid-IR beam control
Specifications
| Name | Value |
|---|---|
| Stock Code | 97-03497-01 |
| Model | AOMO 80Mz GE 2.8um |
| Spectral Region | Mid IR |
| Minimum Wavelength (nm) | 2800 |
| Maximum Wavelength (nm) | 2800 |
| Separation Angle at Center Wavelength (mrad) | 40.7 |
| Center Frequency (MHz) | 80 |
| RF Bandwidth (MHz) | 4 |
| Rise Time (ns/mm) | 120 |
| Active Aperture Height (mm) | 3 |
| Active Aperture Length (mm) | 6 |
| Optical Material | Germanium |
| Acoustic Velocity (mm/µs) | 5.5 |
| Recommended RF Driver | 3910 Series |
(Values for Guidance Only - refer to datasheet where available)
Performance Vs Wavelength
| Wavelength | 2800 nm |
|---|---|
| Saturation RF power | <5 W |
| Bragg angle | 20.4 mr |
| Beam separation | 40.8 mr |
Performance vs beam diameter
| Beam Diameter | 2000 μm |
|---|---|
| At wavelength | 2800 nm |
| Diffraction efficiency | 90% |
| Rise time | <250 ns |
NOTE: All Specifications above are "Typical Performance" values for guidance only.

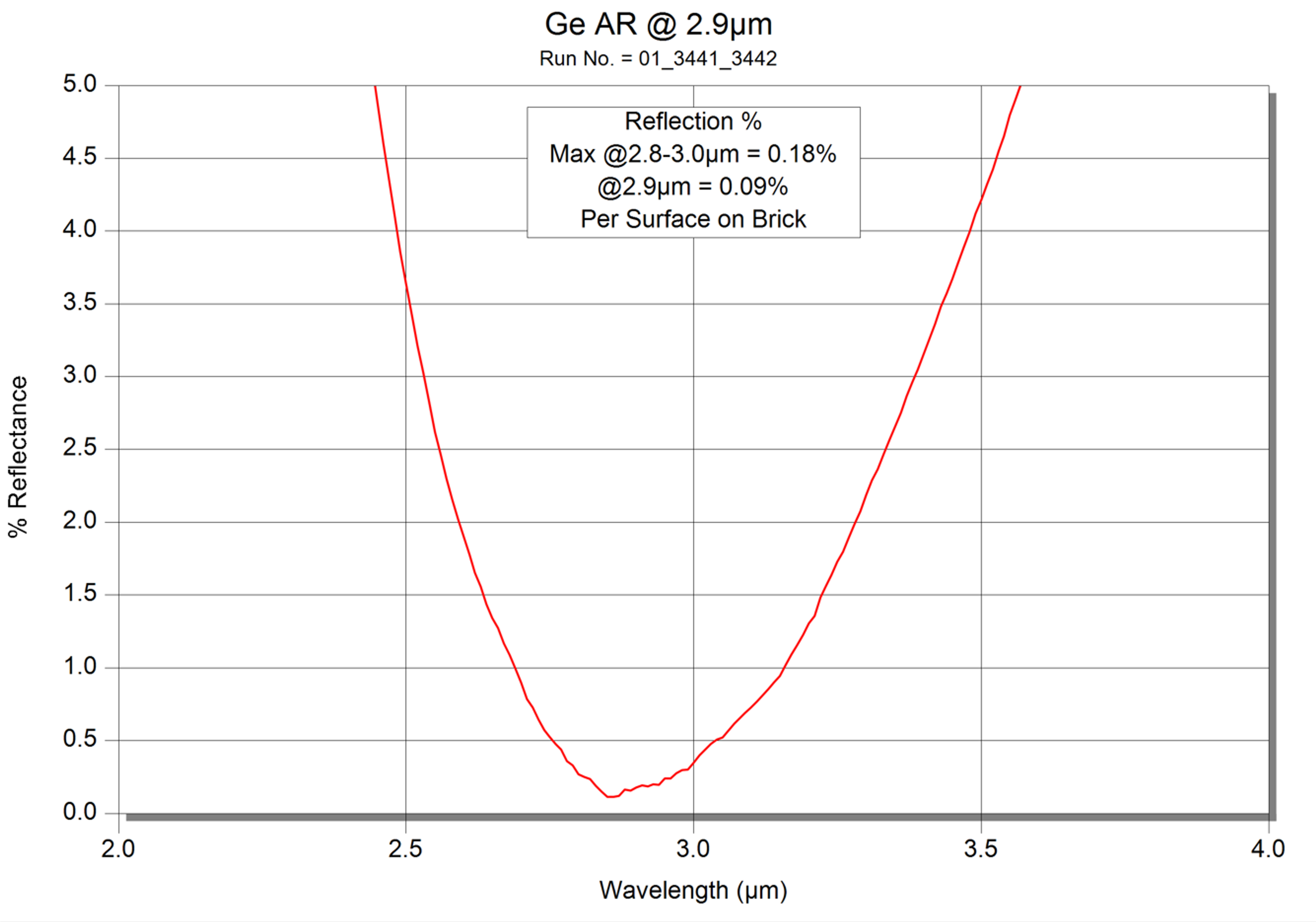

Example AR Coating Curve (Guidance only)
