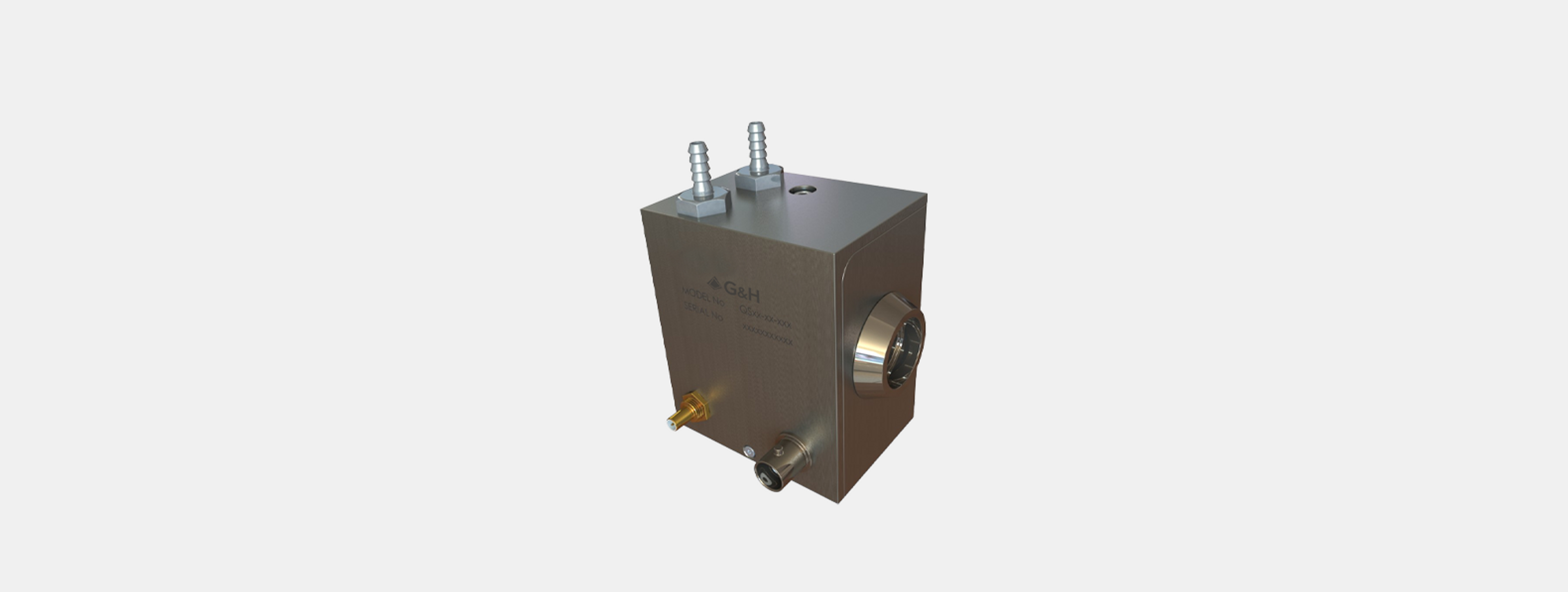

AO QS I-QS027-4C4G-B5-AT1 Q-Switch
Water-cooled fused silica AO Q-switch designed for high-power lamp or diode pumped Nd lasers operating at 1064 nm. With RF frequency options from 27.12 MHz, active aperture 4 mm.
Full Product Description- Stock Code:
- 200307-0091/01
- Minimum Wavelength (nm) :
- 1064
- Maximum Wavelength (nm):
- 1064
- Center Frequency (MHz):
- 27.12
Product description
The ‘Industry Standard’ Acousto-Optic Q-Switch is designed to provide reliable pulse control in high-power Nd laser systems. Its fused silica interaction material, precision optical finishing and in-house anti-reflection coatings support high transmission, low optical loss and excellent damage resistance.
Compressional acoustic mode options are suited to linear polarisation, while shear mode options support random polarisation requirements. G&H scientists and engineers are available to help specify the most suitable Q-switch and RF driver combination for each application.
Key features
- Water-cooled acousto-optic Q-switch for high-power Nd lasers
- Fused silica interaction material for high damage threshold performance
- Low insertion loss and high optical transmission
- In-house anti-reflection coatings for efficient optical performance
- Configurable RF frequency and active aperture options
- Compressional and shear acoustic mode options available
- Suitable for vertical polarisation requirements, depending on configuration
- RF power handling options for demanding laser systems
- Custom mechanical designs and alternative wavelengths available on request
- Supported by G&H acousto-optic engineering and RF driver expertise
Specifications
| Name | Value |
|---|---|
| Stock Code | 200307-0091/01 |
| Model | AO QS I-QS027-4C4G-B5-AT1 |
| Spectral Region | Near IR |
| Minimum Wavelength (nm) | 1064 |
| Maximum Wavelength (nm) | 1064 |
| Center Frequency (MHz) | 27.12 |
| Active Aperture Height (mm) | 4 |
| Active Aperture Length (mm) | 4 |
| Polarization (relative to base) | Vertical |
| Optical Material | Fused Silica |
| Cooling | Water Cooled |
| RF Power (W) | 50 |
| Recommended RF Driver | MQH Series |
(Values for Guidance Only - refer to datasheet where available)
