AODF 4140 Quartz Deflector
A crystal quartz visible green acousto-optic deflector designed for 532nm beam steering, using a 2 element phased array, apodized configuration for controlled optical deflection.
Full Product Description- Stock Code:
- 97-03404-02
- Minimum Wavelength (nm):
- 532
- Maximum Wavelength (nm):
- 532
- Scan Angle (mrad):
- 7.9
- Center Frequency (MHz):
- 147.5
- RF Bandwidth (MHz):
- 85
Product description
The G&H AODF 4140 Quartz 532nm Apodized Visible Acousto-Optic Deflector is designed for beam steering and optical scanning applications at 532nm. It uses crystal quartz as the acousto-optic medium and operates in a longitudinal acoustic mode.
The device features a 2 element phased array, apodized configuration, supporting controlled acousto-optic deflection in visible green laser systems. Both input and output polarization are specified at 90° to the mounting plane, supporting predictable optical integration.
With a 4 x 10 mm active aperture, 85 MHz RF bandwidth and water-cooled construction with Te-Cu water channels, the AODF 4140 is suitable for OEM laser systems, optical instrumentation and specialist photonics platforms requiring stable visible wavelength beam control.
Key features
- Supports 532nm visible green laser beam steering in precision optical systems
- Apodized phased array design supports controlled acousto-optic deflection
- Crystal quartz AO medium supports reliable visible wavelength operation
- Water-cooled construction supports use in active laser systems
- Larger rectangular active aperture supports integration with defined optical beam paths
- Defined input and output polarization supports predictable optical alignment
- Suitable for OEM laser platforms requiring stable green beam positioning
- Supports optical instrumentation where repeatable beam scanning is required
- Designed for applications where diffraction efficiency and beam control are important
- Supports specialist photonics systems requiring controlled 532nm optical deflection
Specifications
| Name | Value |
|---|---|
| Stock Code | 97-03404-02 |
| Model | AODF 4140 Quartz |
| Spectral Region | Visible |
| Minimum Wavelength (nm) | 532 |
| Maximum Wavelength (nm) | 532 |
| Scan Angle (mrad) | 7.9 |
| No. of Resolvable Spots | 99 |
| Center Frequency (MHz) | 147.5 |
| RF Bandwidth (MHz) | 85 |
| Active Aperture Height (mm) | 4 |
| Active Aperture Length (mm) | 10 |
| Polarization (relative to base) | Vertical |
| Optical Material | Crystal Quartz |
| Acoustic Velocity (mm/μs) | 5.74 |
| RF Power (W) | 30 |
| Recommended RF Driver | 6000 Series Driver |
(Values for Guidance Only - refer to datasheet where available)

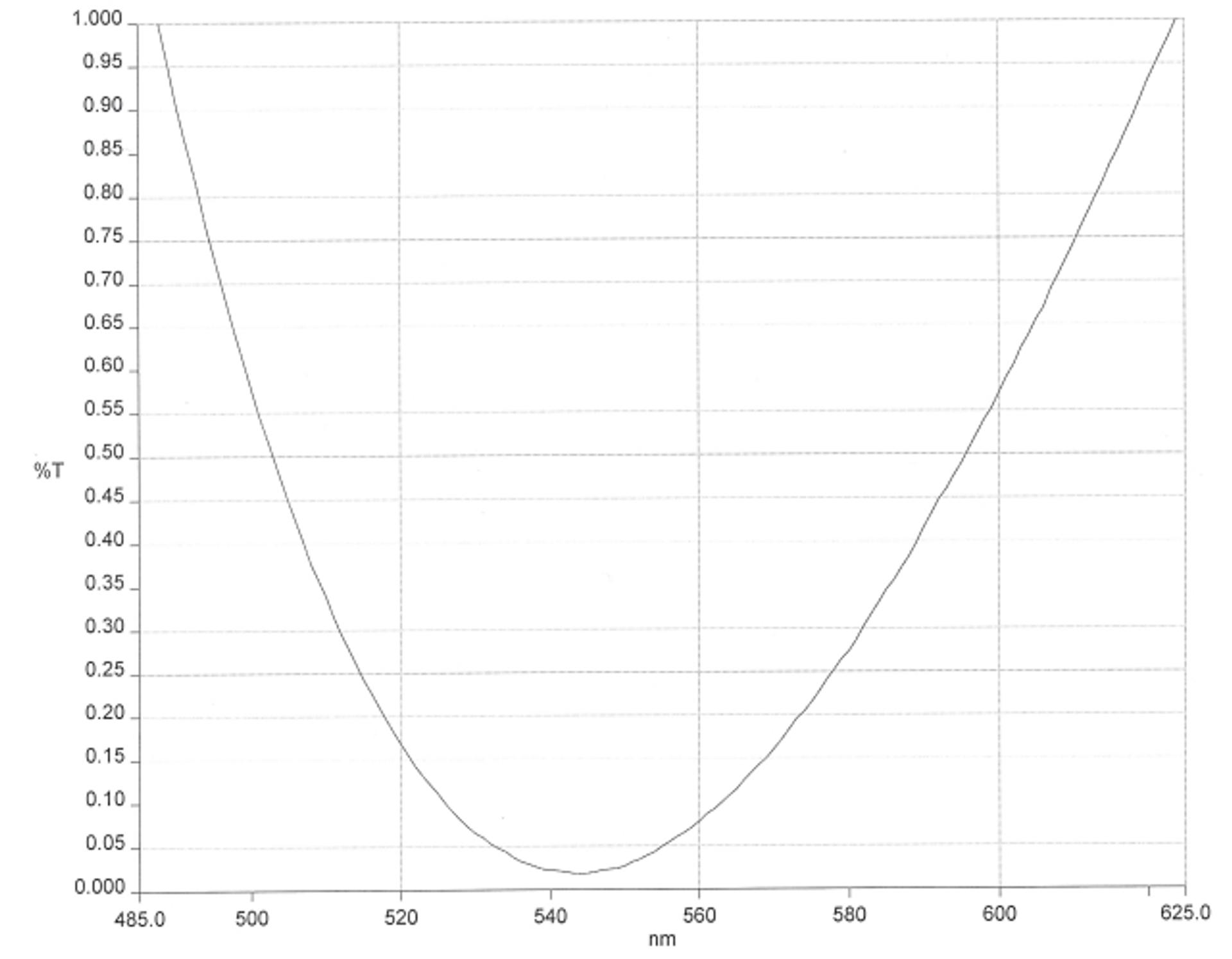

Example AR Coating Curve (Guidance only)
