AOMO 3175-1999 Modulator
The AOMO 3175-1999 is a compact UV/Violet acousto-optic modulator using Crystalline Quartz, designed for small-beam laser systems where low optical loss, clean switching and stable short-wavelength beam control are important.
Full Product Description- Stock Code:
- 97-03386-02
- Minimum Wavelength (nm):
- 310
- Maximum Wavelength (nm):
- 410
- Center Frequency (MHz):
- 175
- RF Bandwidth (MHz):
- 50
Product description
The AOMO 3175-1999 provides controlled modulation for UV and violet laser systems where compact beam handling, fast optical response and repeatable switching performance are required. Its Crystalline Quartz AO medium supports robust short-wavelength beam interaction, making it well suited to demanding laser and photonics applications.
This modulator is designed for systems where precise beam gating, optical switching and intensity control are required in a compact optical layout. Low insertion loss, low surface reflectivity, high contrast performance and a small square aperture support clean beam control in UV laser processing, microscopy, fluorescence excitation, analytical instrumentation, optical test platforms and scientific laser systems.
Key features
- Compact UV/Violet acousto-optic modulator for small-beam laser control
- Uses Crystalline Quartz AO medium for robust short-wavelength beam interaction
- Small square active aperture supports compact optical layouts
- Supports fast beam gating, optical switching and intensity modulation
- Low insertion loss helps preserve available laser power
- Low surface reflectivity helps reduce unwanted optical feedback
- High contrast ratio supports clean laser on/off control
- Anti-reflection coating supports efficient short-wavelength beam transmission
- Polarisation orientation supports predictable optical integration
- SMA connector supports practical RF integration
- RoHS-compliant construction supports use in regulated product platforms
- Solvent-cleaned and vacuum-sealed final bagging support controlled handling requirements
- BOM revision control supports product change management
- Suitable for UV laser processing, microscopy and fluorescence excitation
- Supports analytical instrumentation, optical test platforms and scientific laser systems
- Ideal for applications requiring compact, repeatable UV/Violet beam control
Specifications
| Name | Value |
|---|---|
| Stock Code | 97-03386-02 |
| Model | AOMO 3175-1999 |
| Spectral Region | UV-Violet |
| Minimum Wavelength (nm) | 310 |
| Maximum Wavelength (nm) | 410 |
| Separation Angle at Center Wavelength (mrad) | 11 |
| Center Frequency (MHz) | 175 |
| RF Bandwidth (MHz) | 50 |
| Rise Time (ns/mm) | 116 |
| Active Aperture Height (mm) | 1.5 |
| Active Aperture Length (mm) | 1.5 |
| Optical Material | Crystal Quartz |
| Acoustic Velocity (mm/µs) | 5.74 |
| Recommended RF Driver | 3910 Series |
(Values for Guidance Only - refer to datasheet where available)
Performance Vs wavelength
| Wavelength | 355 nm |
|---|---|
| Operational RF power nominal | <2.5 W |
| Bragg angle | 5.4 mr |
| Beam separation | 10.8 mr |
Performance Vs beam diameter
| Beam diameter | 500 μm | 1000 μm |
|---|---|---|
| At wavelength | 355nm | 355 nm |
| Diffraction efficiency | >85 % | >90 % |
| Rise time | 59 ns | 117 ns |
NOTE: All Specifications above are "Typical Performance" values for guidance only.

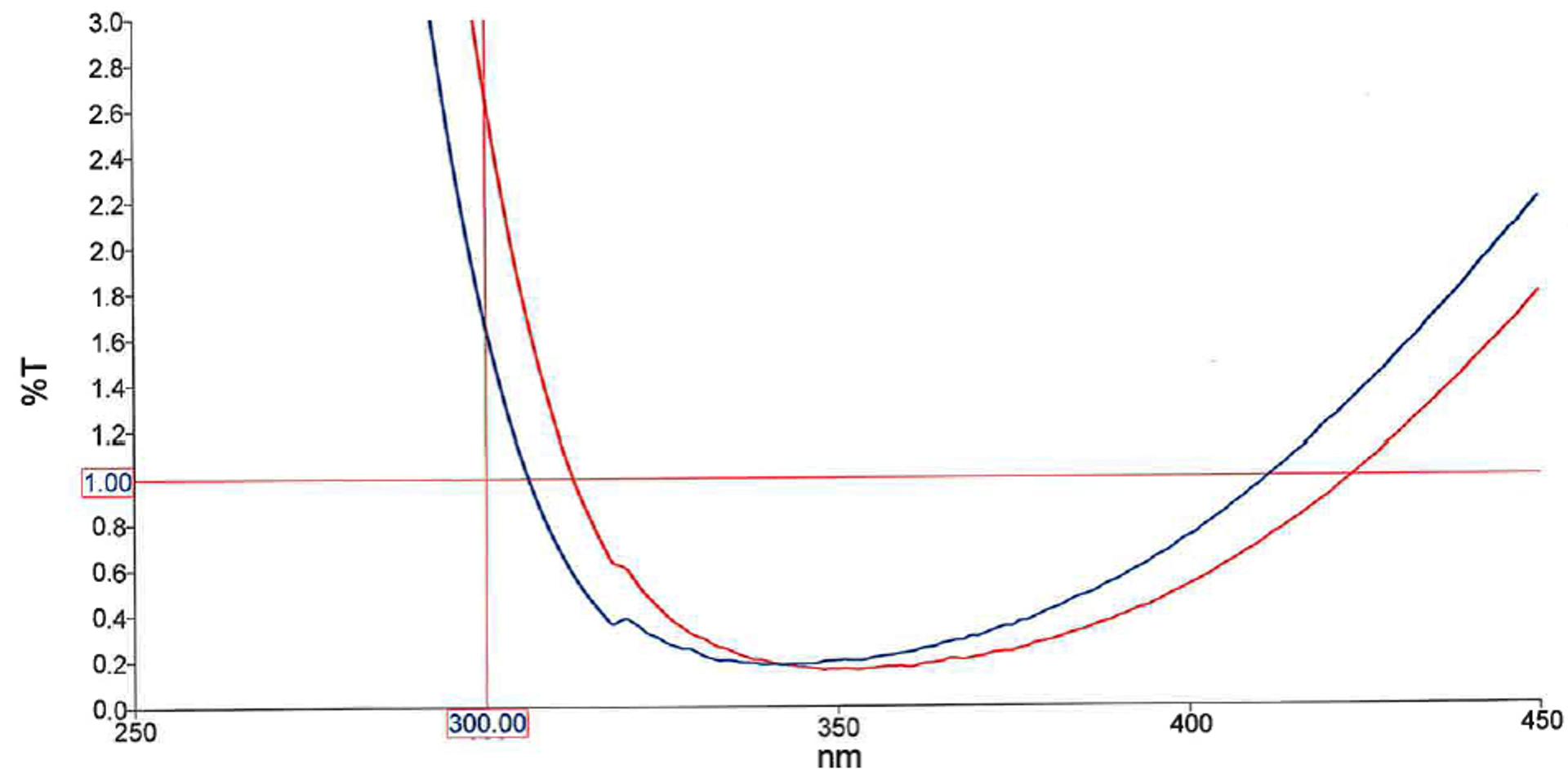

Example AR Coating Curve (for guidance only)
