AOMO 3200-1210 Modulator
The AOMO 3200-1210 is a compact UV/Violet acousto-optic modulator using crystalline quartz, designed for fast laser beam control in systems that require precise UV switching, beam gating, pulse picking and intensity modulation.
Full Product Description- Stock Code:
- 97-02377-01
- Minimum Wavelength (nm):
- 310
- Maximum Wavelength (nm):
- 410
- Center Frequency (MHz):
- 200
- RF Bandwidth (MHz):
- 100
Product description
The AOMO 3200-1210 provides fast, controlled modulation for UV laser systems where small beam handling, clean switching and repeatable intensity control are important. Its crystalline quartz acousto-optic material provides a robust platform for UV modulation, while the compact aperture supports high-speed response in space-conscious optical layouts.
Designed for precision UV and violet laser applications, this modulator helps manage beam delivery, optical timing and laser power in micromachining, semiconductor processing, spectroscopy, analytical instrumentation, scientific research and laboratory photonics. Its wide modulation bandwidth, UV anti-reflection coated optics and high contrast switching support reliable performance in demanding UV laser systems.
Key features
- Compact UV/Violet acousto-optic modulator for fast laser control
- Uses crystalline quartz acousto-optic material for robust UV beam interaction
- Designed for small-beam optical layouts and high-speed modulation
- Supports fast beam switching, gating, pulse picking and intensity modulation
- Helps manage optical timing, beam delivery and laser power in precision UV systems
- Wide modulation bandwidth supports responsive laser intensity control
- High contrast switching helps reduce unwanted optical leakage
- UV anti-reflection coated optics support efficient beam transmission
- Suitable for micromachining, semiconductor processing and UV laser processing
- Supports spectroscopy, analytical instrumentation and scientific research platforms
- Ideal for applications requiring rapid, repeatable UV beam control
Specifications
| Name | Value |
|---|---|
| Stock Code | 97-02377-01 |
| Model | AOMO 3200-1210 |
| Spectral Region | UV-Violet |
| Minimum Wavelength (nm) | 310 |
| Maximum Wavelength (nm) | 410 |
| Separation Angle at Center Wavelength (mrad) | 12.5 |
| Center Frequency (MHz) | 200 |
| RF Bandwidth (MHz) | 100 |
| Rise Time (ns/mm) | 116 |
| Active Aperture Height (mm) | 0.25 |
| Active Aperture Length (mm) | 0.5 |
| Optical Material | Crystal Quartz |
| Acoustic Velocity (mm/µs) | 5.74 |
| Recommended RF Driver | 3910 Series |
(Values for Guidance Only - refer to datasheet where available)
Performance Vs wavelength
| Wavelength | 325 nm | 365 nm |
|---|---|---|
| Operational RF power nominal | 2.5 W | 2.5 W |
| Bragg angle | 5.7 mr | 6.4 mr |
| Beam separation | 11.4 mr | 12.8 mr |
Performance Vs beam diameter
| Beam diameter | 70 μm | 70 μm |
|---|---|---|
| At wavelength | 325nm | 365 nm |
| Diffraction efficiency | 80 % | 80 % |
| Rise time | 10 ns | 10 ns |
NOTE: All Specifications above are "Typical Performance" values for guidance only.

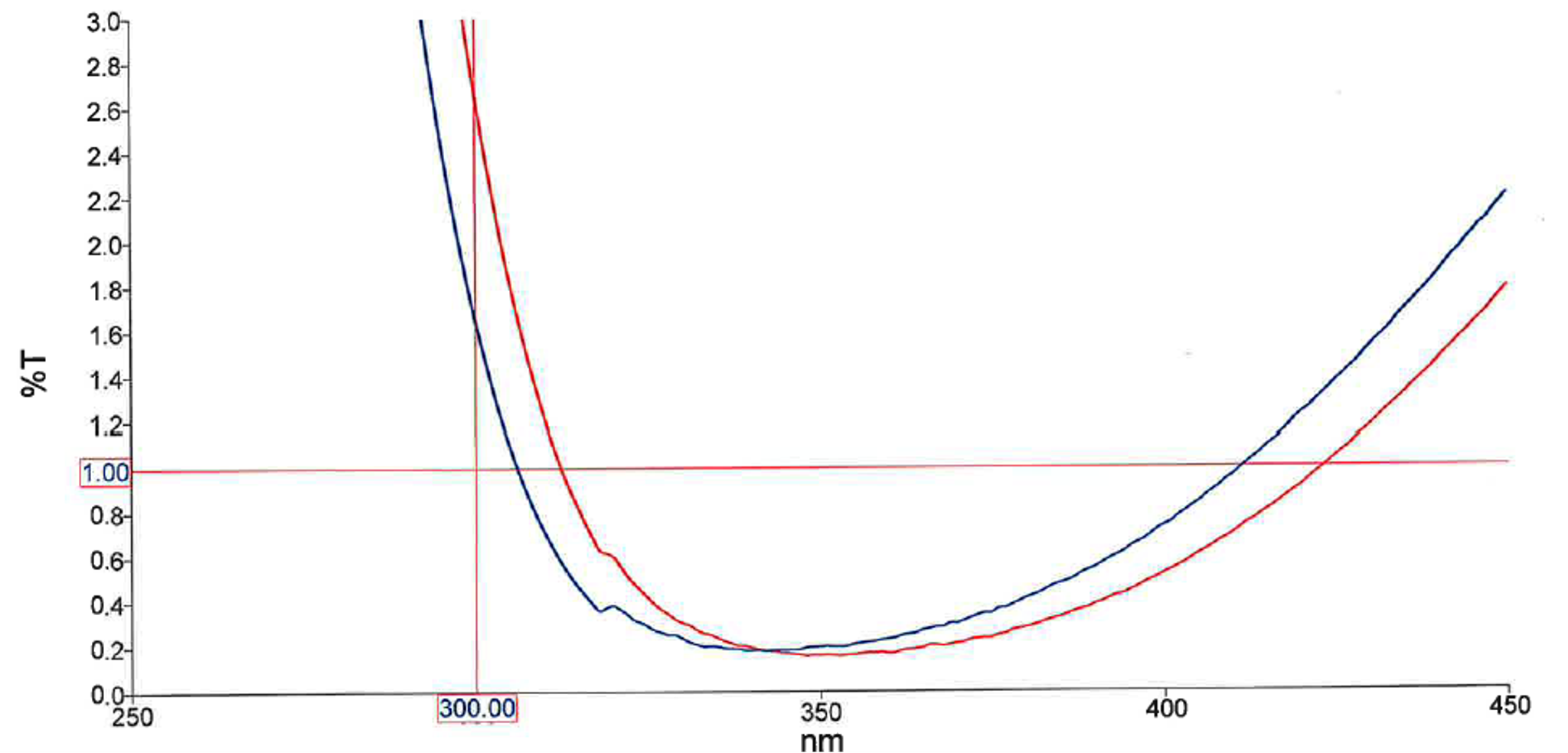

Example AR Coating Curve (for guidance only)
