Lidar Systems

Lidar systems determine the distance of objects by targeting it with a laser and measuring the time for the reflected light to return to the receiver.

©️ Private

Lidar systems are reliant on very sensitive optical devices which need to be integrated together to create sophisticated imaging and sensing for a wide range of applications.

Distributed acoustic sensing

Lidar systems are divided into two categories: sensing within a fiber (distributed acoustic sensing) and atmospheric sensing. Distributed acoustic sensing (DAS) uses the fiber itself as the sensing element and provides information about the strain, vibration, temperature, and functionality of a fiber, as well as detecting pressure or other disturbances in the surrounding environment.

DAS systems are used for a wide range of applications, including but not limited to perimeter detection, oil wells, seismic sensing, monitoring traffic, and optical time-domain reflectometry (OTDR).

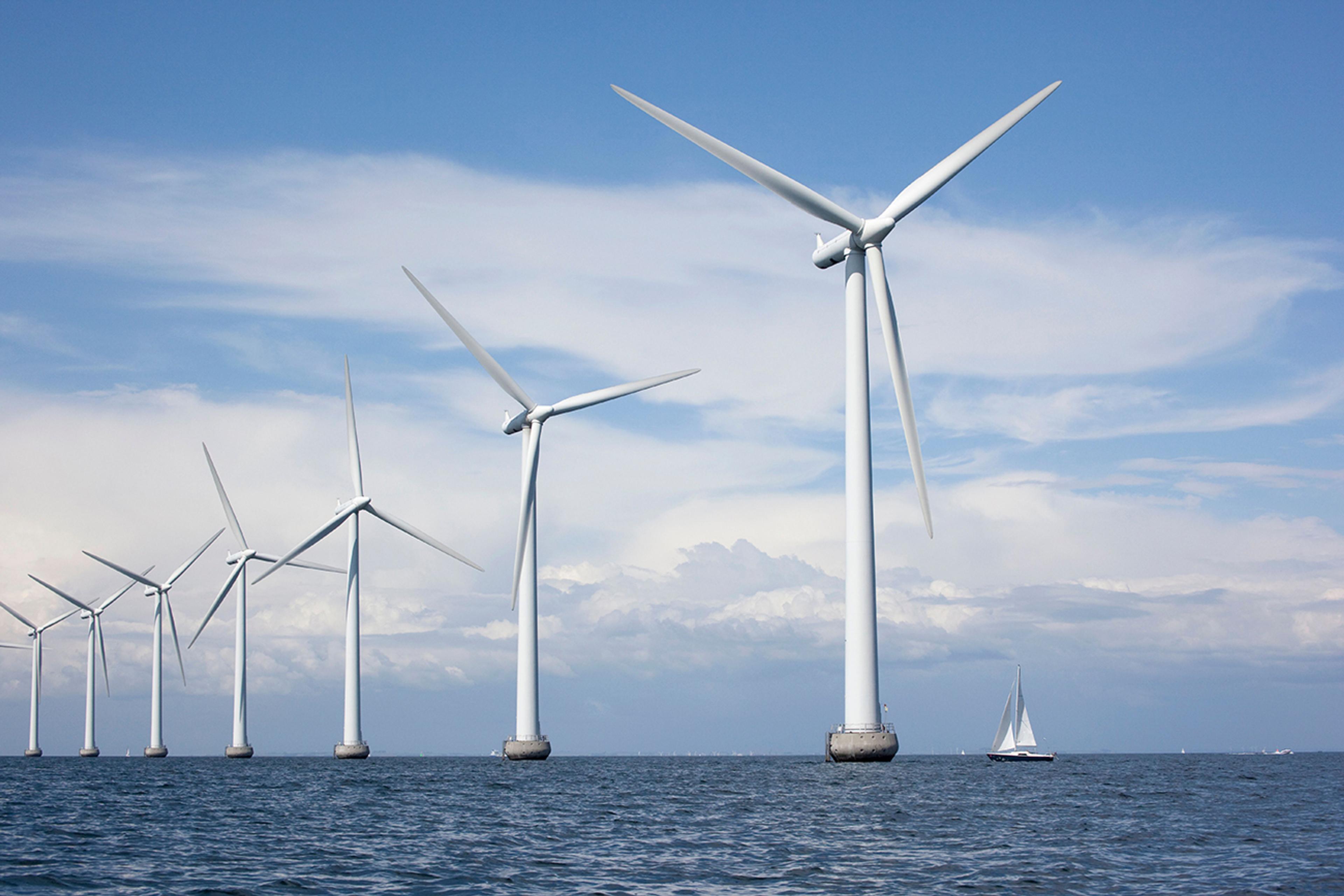

Offshore wind turbineOffshore wind turbine©️ Private

Atmospheric sensing

Atmospheric sensing sends light signals through the air and returns information about the reflected surface as well as the environment between the lidar system and the object. These optical sensing systems give information about the topography, position, and speed (due to the doppler shift).

Atmosphere sensing can be used for wind mapping for optimizing power generation from turbines, surveying planet surfaces, high precision manufacturing, preservation and restoration, environmental monitoring, measuring the wake of aircraft in airports, and space applications.

How we work in lidar and sensing

We design and manufacture LIDAR systems, subsystems, and modules for customers at all technology readiness levels (TRL). Flexible to all your lidar requirements and with a broad portfolio of components, we can provide single components, multiple components, a complete system, or multiple systems.

We pair our optical, mechanical, and electronic design capabilities with IP security and control, using our components or 3rd party components, to deliver at any point in the supply chain.

The more we are involved with the design and procurement, the more we are able to streamline the process and leverage our complete vertical integration, resulting in cost-effective and time-critical delivery of lidar components and systems. This also lightens the load of finding high-quality components for the entire system and allows us to help you make your design applicable for high-volume manufacturing of lidar systems.

With decades of experience working with customers in many sectors and for a broad variety of applications, we are an ideal partner for design for manufacturing, and customization of components, and have advanced, modern productions facilities in the UK and USA.

A summary of our involvement with lidar development is listed in the tables below:

How we work in lidar and sensing

Product design and design for manufacture
IP security and control
Complete ownership of Bill of Materials and procurement
G&H components or 3rd party components
System test
Supply chain
One stop shop
Manufacturing Partner
Decades of experience of working with customers in many sectors and for a broad variety of applications.
Experts in the design and manufacture of OEM photonic subsystems
Advanced, modern productions facilities in the UK and USA
Design for manufacture
Customization of components
IP control and security
Full ownership of bill of materials
Fiber handling and fiber routing
Soldering and electronic assembly
System test

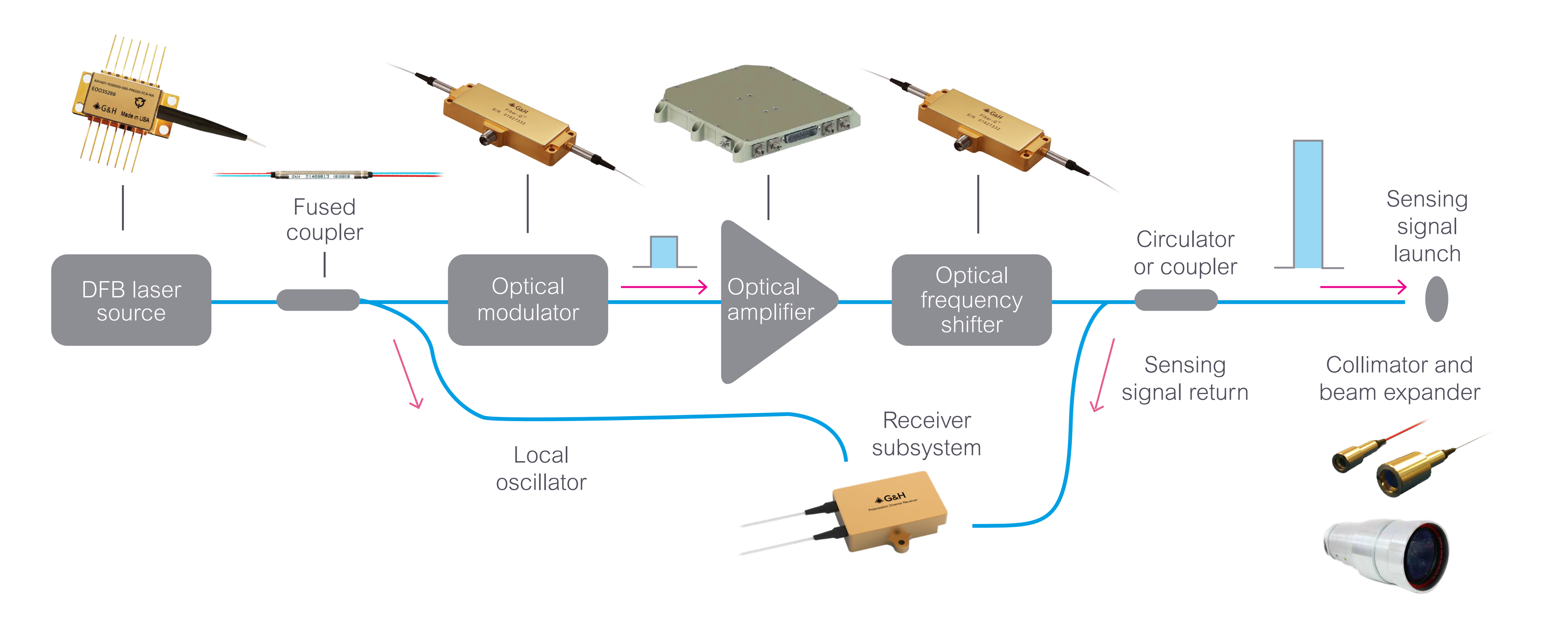

  • Diagram showing the components making up an lidar or sensing system.

    ©️ Private

©️ Private

Our lidar product and technology development

We manufacture complete LIDAR systems from the source to the sensor, and all elements in between:

  • Narrow linewidth DFB source
  • Fused Fiber Optic Coupler / WDM
  • Fiber-coupled pump lasers
  • Tapered fiber bundle
  • Optical modulators and frequency shifters
  • Receiver subsystems
  • Pulsed optical amplifiers
  • Fiber collimators

Contact us today to tell us more about your lidar and sensing challenges.
