AODF 4110 532NM Deflector
A crystal quartz visible green acousto-optic deflector designed for 532nm beam steering and controlled optical deflection in precision laser systems, with 6 mm aperture, 110 MHz centre frequency, 10 MHz RF bandwidth.
Full Product Description- Stock Code:
- 97-03292-01
- Minimum Wavelength (nm):
- 532
- Maximum Wavelength (nm):
- 532
- Scan Angle (mrad):
- 0.9
- Center Frequency (MHz):
- 110
- RF Bandwidth (MHz):
- 10
Product description
The G&H AODF 4110 Quartz 532nm Visible Acousto-Optic Deflector is designed for beam steering and optical deflection applications at 532nm. It uses crystal quartz as the acousto-optic medium and operates in a longitudinal acoustic mode.
The device is specified with input and output polarization at 90° to the mounting plane, supporting predictable optical integration in visible green laser systems. Its RF configuration is centred at 110 MHz with a 10 MHz RF bandwidth, supporting controlled beam deflection for applications requiring defined optical performance.
The AODF 4110 is water cooled and uses Metalast plated aluminium water channels. With a 6 mm diameter active aperture, low insertion loss and specified scan angle at 532nm, it is suitable for optical instrumentation, visible laser beam control and specialist photonics applications.
Key features
- Supports 532nm visible green laser beam steering in precision optical systems
- Crystal quartz AO medium supports reliable visible wavelength operation
- Water-cooled construction supports use in active laser systems
- Defined 6 mm aperture supports integration with controlled beam paths
- Input and output polarization alignment supports predictable optical integration
- Low insertion loss supports efficient optical system performance
- Suitable for OEM laser platforms requiring stable green beam positioning
- Supports optical instrumentation where repeatable beam deflection is required
- Designed for applications where diffraction efficiency and beam control are important
- Supports specialist photonics systems using 532nm laser sources
Specifications
| Name | Value |
|---|---|
| Stock Code | 97-03292-01 |
| Model | AODF 4110 532NM |
| Spectral Region | Visible |
| Minimum Wavelength (nm) | 532 |
| Maximum Wavelength (nm) | 532 |
| Scan Angle (mrad) | 0.9 |
| No. of Resolvable Spots | 7 |
| Center Frequency (MHz) | 110 |
| RF Bandwidth (MHz) | 10 |
| Active Aperture Height (mm) | 6 |
| Active Aperture Length (mm) | 6 |
| Polarization (relative to base) | Vertical |
| Optical Material | Crystal Quartz |
| Acoustic Velocity (mm/μs) | 5.74 |
| RF Power (W) | 25 |
| Recommended RF Driver | 6000 Series Driver |
(Values for Guidance Only - refer to datasheet where available)

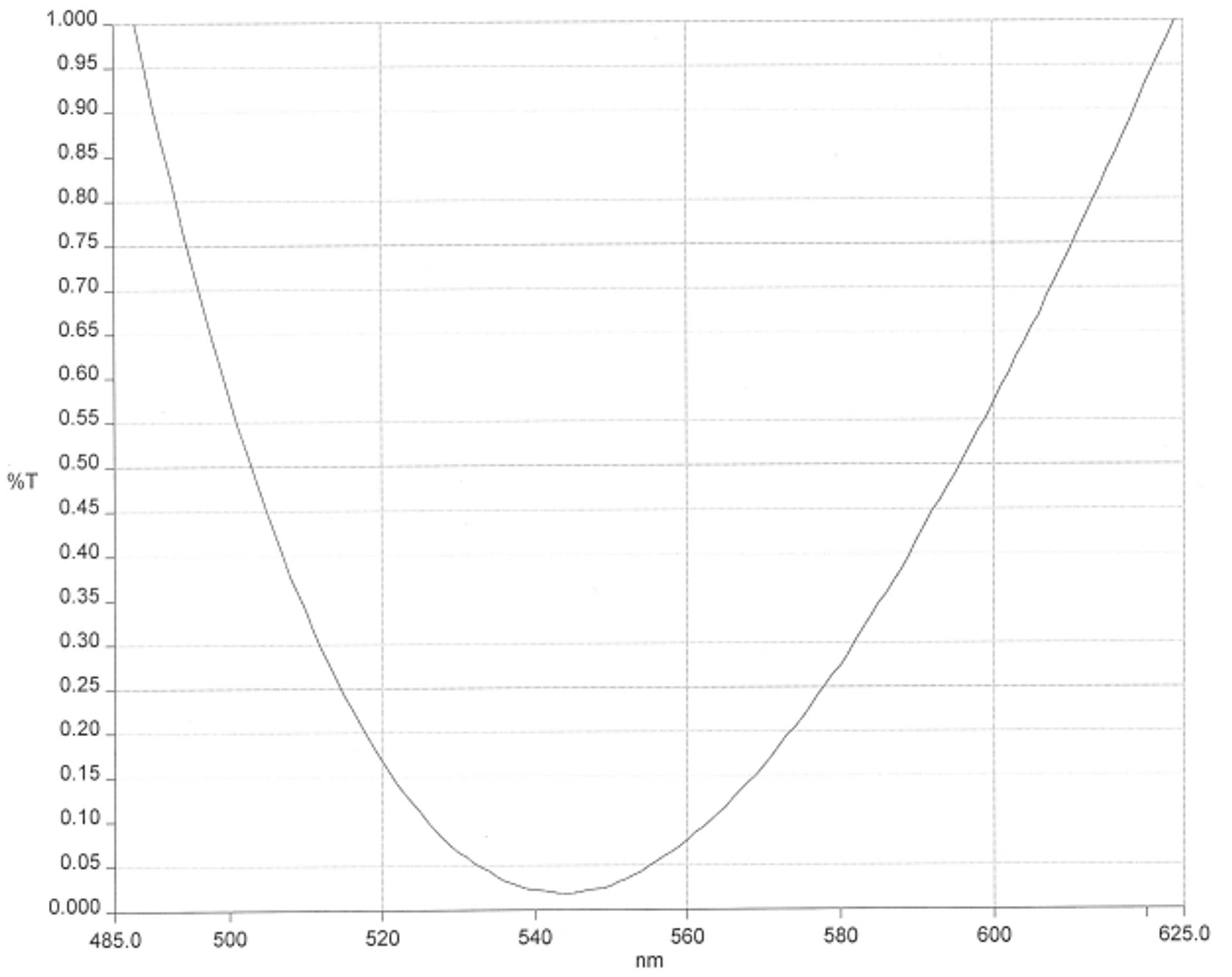

Example AR Coating Curve (Guidance only)
