AODF 4170 532NM Deflector
A crystalline quartz 532nm acousto-optic deflector designed for green laser beam control, with water-cooled operation and high contrast performance for precision optical systems.
Full Product Description- Stock Code:
- 97-03455-01
- Minimum Wavelength (nm):
- 532
- Maximum Wavelength (nm):
- 532
- Scan Angle (mrad):
- 1.9
- Center Frequency (MHz):
- 170
- RF Bandwidth (MHz):
- 20
Product description
The G&H AODF 4170 532NM Deflector is designed for 532nm beam control applications requiring reliable acousto-optic performance and predictable optical integration. It uses crystalline quartz as the acousto-optic medium and is specified for operation at 532nm.
The device provides a 6 x 6 mm active aperture and is designed for use with polarization at 90° to the mounting plane. Its RF configuration is centred at 170 MHz, with a 20 MHz RF bandwidth specified at -10 dB return loss.
The AODF 4170 532NM Deflector is water cooled and includes anti-reflection coating to MIL-C-48497, with low reflectivity per surface. With high contrast ratio, specified diffraction efficiency and defined beam separation, it is suitable for green laser beam control, optical switching and precision photonics applications.
Key features
- Supports 532nm green laser beam control in precision optical systems
- Crystalline quartz AO medium supports stable visible wavelength operation
- High contrast ratio supports applications requiring strong optical on/off performance
- Defined active aperture supports predictable integration with green laser beam paths
- Specified diffraction efficiency supports efficient acousto-optic beam control
- Anti-reflection coated optical surfaces support reduced surface reflection
- Water-cooled construction supports use in active laser systems
- Defined beam separation supports controlled optical path design
- Suitable for OEM photonics platforms requiring reliable 532nm beam control
- Designed for optical systems where polarization, beam diameter and RF performance are important
Specifications
| Name | Value |
|---|---|
| Stock Code | 97-03455-01 |
| Model | AODF 4170 532NM |
| Spectral Region | Visible |
| Minimum Wavelength (nm) | 532 |
| Maximum Wavelength (nm) | 532 |
| Scan Angle (mrad) | 1.9 |
| No. of Resolvable Spots | 14 |
| Center Frequency (MHz) | 170 |
| RF Bandwidth (MHz) | 20 |
| Active Aperture Height (mm) | 6 |
| Active Aperture Length (mm) | 6 |
| Polarization (relative to base) | Vertical |
| Optical Material | Crystal Quartz |
| Acoustic Velocity (mm/μs) | 5.74 |
| RF Power (W) | 25 |
| Recommended RF Driver | 6000 Series Driver |
(Values for Guidance Only - refer to datasheet where available)

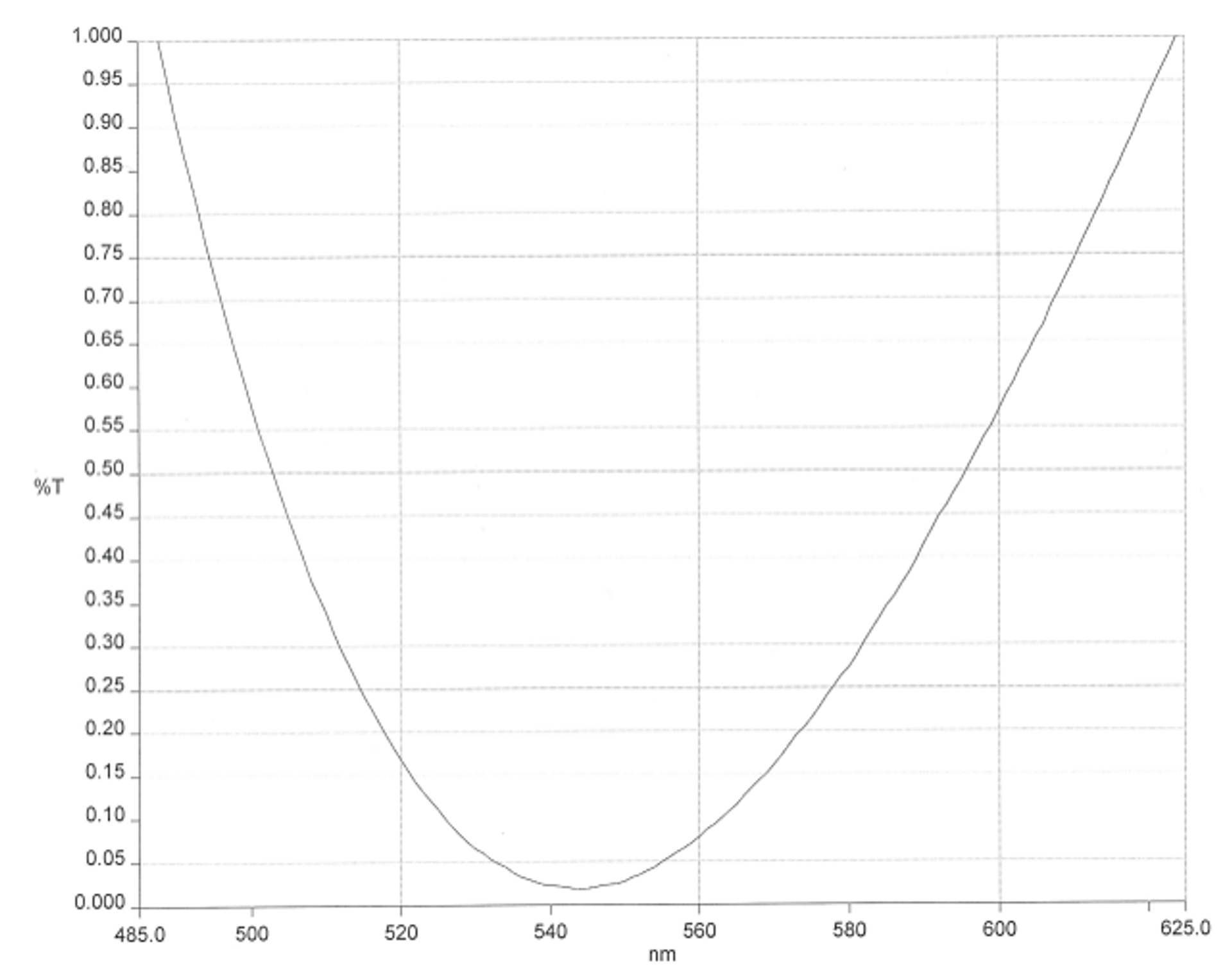

Example AR Coating Curve (Guidance only)
