2 µm 2+1x1 MM Power Combiner PM signal feedthrough

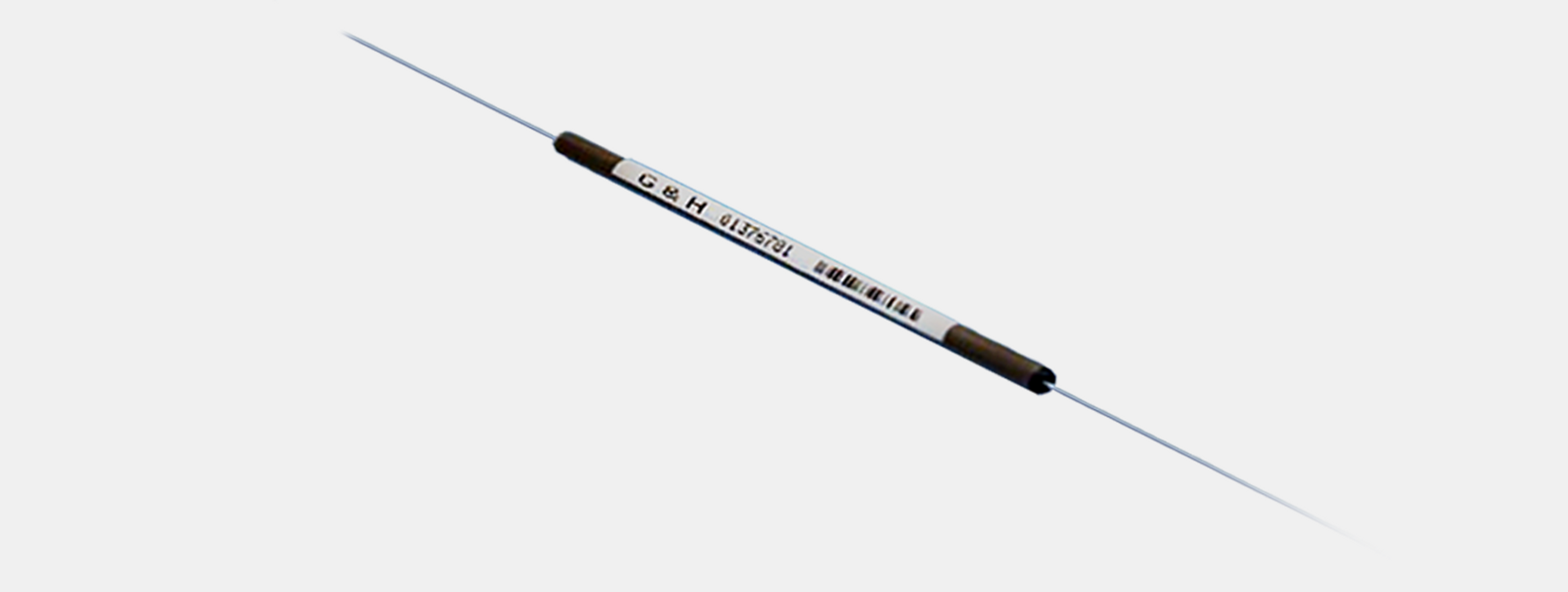

A side-coupled multimode combiner for 2 µm, available in 1+1x1 and 2+1x1 configurations with a PM signal feed-through fiber and a PM dual clad output fiber.Full Product Description
- Pump input wavelength:
- 750 – 850 nm
- Signal input wavelength:
- 1900 – 2100 nm
Need a product customized?
We can customize our products to fit your requirements.Find out more
A side-coupled multimode combiner for 2 µm, available in 1+1x1 and 2+1x1 configurations with a PM signal feed-through fiber and a PM dual clad output fiber. G&H proprietary manufacturing techniques allow the precise fusion of multimode pump fibers to a PM (polarization maintaining) signal feed-through fiber and a PM dual clad output fiber providing high coupling efficiency over a wide pump wavelength range.
G&H power combiners can be fabricated from a range of industry standard multimode fibers allowing ease of splicing to commercially available laser diodes. Custom options cover large mode area (LMA), large diameter (LDF) and Active signal feed-through fibers and are available on request.
- High Coupling Efficiency
- High power handling
|Pump input fiber NA||0.15 or 0.22|
|Pump input wavelength||750 – 850 nm|
|Signal input wavelength||1900 – 2100 nm|
|Pump (MM) transmission efficiency||≥90% (Typ: >95%) ¹|
|Signal PER (polarization extinction ratio)||≥17 dB|
|Return loss||≥40 dB|
|Operating temperature||-5° C – +75° C|
|Storage temperature||-40° C – +85° C|
|Feedthrough option||10/130 µm 0.15/0.45 NA||PM1950+10/130 µm|
|Signal transmission efficiency ²||≥93% (typ. >97%)||≥90%|
All specifications are for operation at room temperature.
¹ MM transmission efficiencies based on typical system mode fill conditions and 0.5 m pigtails. Reported at 790 nm as standard.
² Signal (feed-through) transmission efficiency reported at center wavelength
Guidance on how to create an order code is available in Downloads below.
