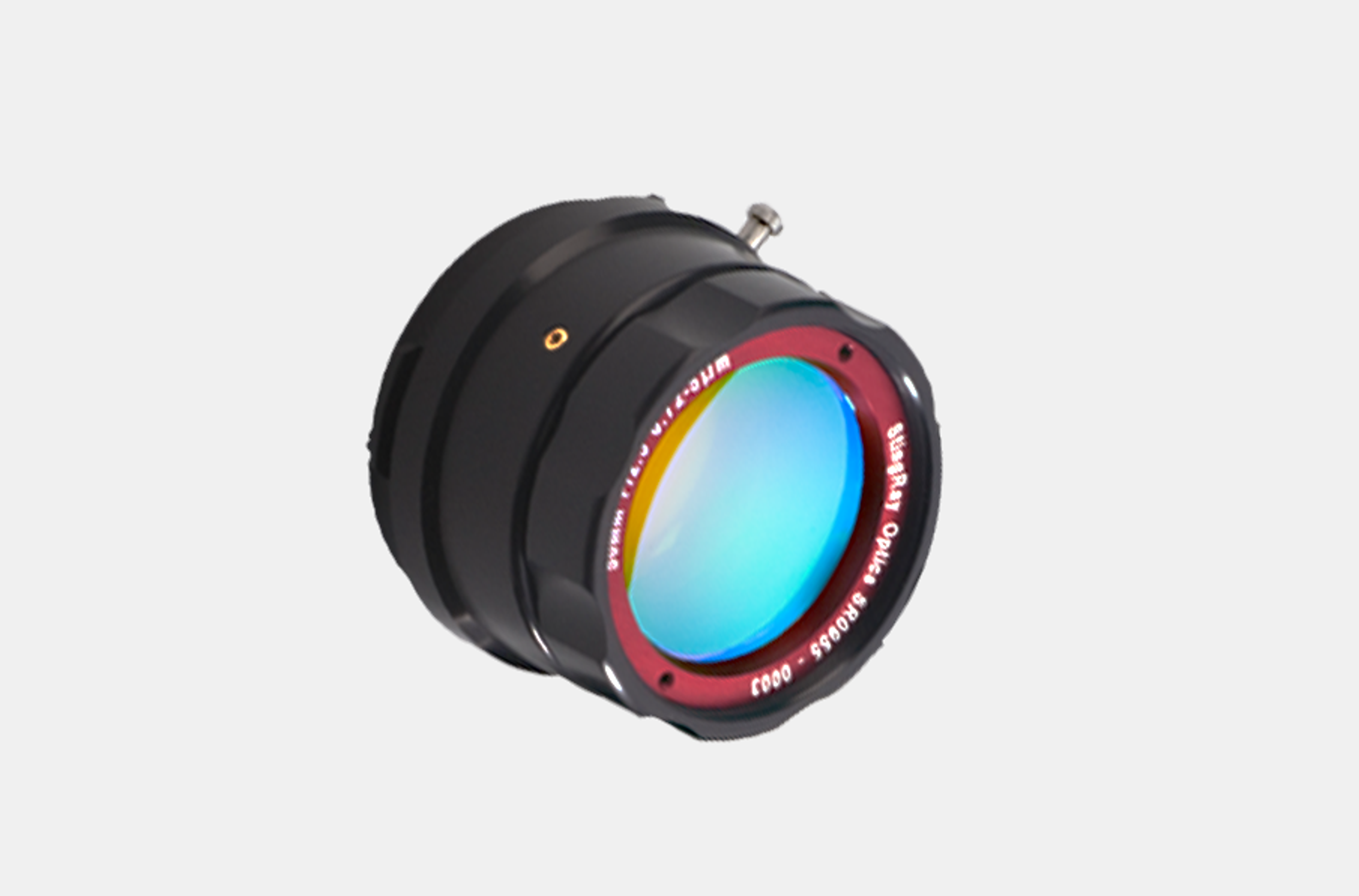

Superband broadband lens assemblies
The Superband Series™ supports a wide wavelength range for maximum detector flexibility for wavelengths from 0.72–5 µm.
Full Product Description- Wavelength:
- 0.72–5 µm
- f/#:
- f/2.3, f/2.5
- Focal length:
- 25 mm, 50 mm, 100 mm
- Image Diameter:
- 12.5 mm, 16 mm
Product description
Supporting wavelengths from 0.72–5 µm, Superband broadband lens assemblies offer a 19.3 mm cold shield height and are designed for use with up to 12.5 mm or 16 mm (diagonal) format FPA's. Superband lenses include a manual focus with lock and the IR industry's standard bayonet mount.
These lenses are specifically optimized for balanced performance over the MWIR/LWIR region simultaneously while achieving compatibility with the widest array of commercially available cameras from both domestic and international manufacturers.
Key features
- Broadband optimized
- Active athermalization
Specifications
| Name | Value |
|---|---|
| Wavelength | 0.72–5 µm |
| f/# | f/2.3, f/2.5 |
| Focal length | 25 mm, 50 mm, 100 mm |
| Image Diameter | 12.5 mm, 16 mm |
