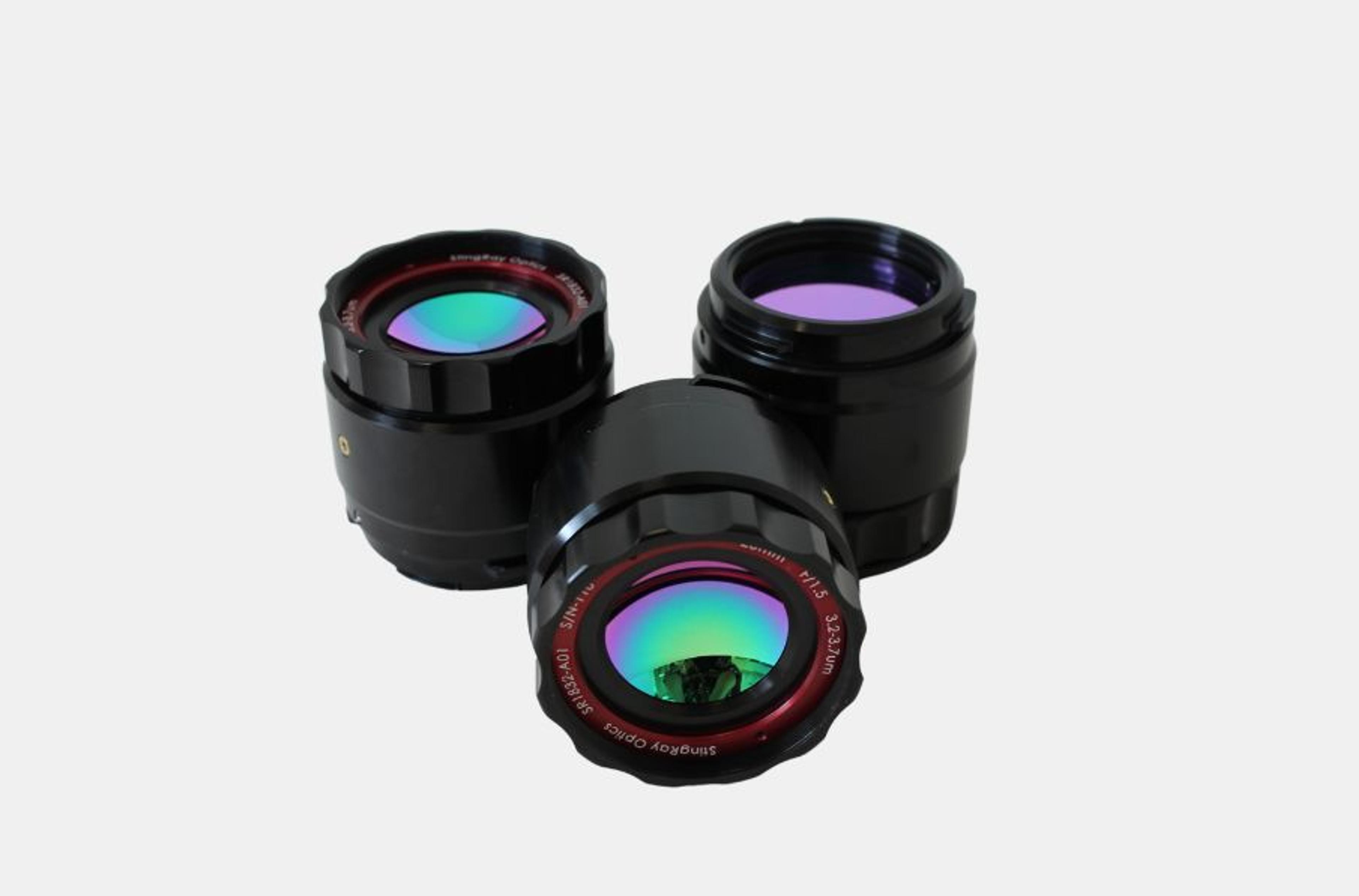

VAPIR MWIR Lens Assemblies
The VAPIR Series™ is specifically optimized for gas imaging cameras and cores to offer the highest sensitivity (F/1.5) of any commercially available MWIR lens offerings.
Full Product Description- Wavelength:
- 3.2–3.7 µm
- Spectral region:
- MWIR
- f/#:
- f/1.5
- Focal length:
- 25 mm, 50 mm, 100 mm
- Image Diameter:
- 12.3 mm, 20 mm
Product description
A lightweight, passively athermalized, fixed focus series ideal for unmanned platforms is also available.
The VAPIR Series™ is corrected and optimized specifically for the narrowband where gas emissions are observable and available in manual and motorized configurations.
Key features
- Optimized for narrowband
- Manual and motorized configurations
Specifications
| Name | Value |
|---|---|
| Wavelength | 3.2–3.7 µm |
| Spectral region | MWIR |
| f/# | f/1.5 |
| Focal length | 25 mm, 50 mm, 100 mm |
| Image Diameter | 12.3 mm, 20 mm |
(Values for Guidance Only - refer to datasheet where available)
