Choosing the Right Modulator for High-Power CO₂ Laser Applications: G&H Delivers Solutions for Every Need

Technical

In the rapidly advancing field of microelectronics manufacturing, the demand for higher throughput and precision in via drilling has never been greater. This translates into a market demand for more sophisticated manufacturing tools, like high-precision Acousto-Optic Modulators (AOMs) and Electro-Optic Modulators (EOMs). The choice between these two categories depends entirely on the application requirements and on the performance attributes that are most critical to you and your system. G&H is a leading provider of both AOM and EOM solutions, ensuring that customers can select the best technology for their high-power CO₂ laser applications, whether that be brute force cutting and drilling with EOMs or high-speed, precision drilling with AOMs.

Understanding Via Drilling

Via drilling is a critical process in printed circuit board (PCB) manufacturing, where small holes, known as vias, are created to establish electrical connections between different layers of the board. These vias enable complex, multi-layer designs essential for modern electronics, including smartphones, 5G infrastructures, and high-performance computing. Traditional mechanical drilling methods struggle to produce the increasingly smaller vias required for miniaturized devices, making laser-based drilling the preferred solution. High-power CO₂ lasers offer the precision and speed necessary to meet industry demands, but selecting the right modulator for your laser system is crucial for optimizing performance and efficiency.

I-M0XX-XC11B76-P5-GH105 product imageI-M0XX-XC11B76-P5-GH105 product image©️ G&H

What is an Acousto-Optic Modulator (AOM)?

An acousto-optic modulator (AOM) is a device that uses sound waves to diffract and control the intensity, frequency, or direction of a laser beam. It consists of a piezoelectric transducer bonded to an optical material, such as germanium, that generates acoustic waves when excited by a radio frequency (RF) signal. These waves create a periodic variation in the refractive index of the material, forming a diffraction grating that modulates the passing laser beam.

Key characteristics of AOMs include:

  • Fast modulation speeds, often reaching tens of MHz;
  • Efficient beam diffraction, allowing precise control over the laser;
  • Lower voltage operation, fostering better reliability and resilience to back reflections;
  • Flexibility in beam shaping, enabling modulation in intensity, frequency, and beam direction;
  • Tenfold higher extinction ratios, due to the distinct separation between the diffracted (on) and undiffracted (off) beams, ensuring minimal unwanted laser leakage.

AOMs are widely used in high-speed applications such as via drilling, laser scanning, and frequency shifting due to their ability to modulate lasers at extremely high repetition rates.

Pegasus pockels cellsPegasus pockels cells©️ G&H

What is an Electro-Optic Modulator (EOM)?

An electro-optic modulator (EOM) is a device that modulates the phase, intensity, or polarization of a laser beam by applying an electric field across an electro-optic crystal. The electric field alters the refractive index of the crystal through the Pockels effect, allowing precise control of the laser’s characteristics.

Key characteristics of EOMs include:

  • Fast rise times, enabling rapid on/off switching, ideal for high-speed data transmission applications;
  • Ability to handle high optical power, making them well-suited for applications that require brute force laser drilling and cutting;
  • Can have larger apertures, to accommodate larger laser beams;
  • Generally more expensive, due to use of inherently more expensive crystal material and more complex drive circuitry.

EOMs are commonly used in applications that require q-switching such as research laser systems, military lasers, and medical uses. Their ability to modulate large aperture beams makes them ideal for applications where maximizing the photon throughput is crucial.

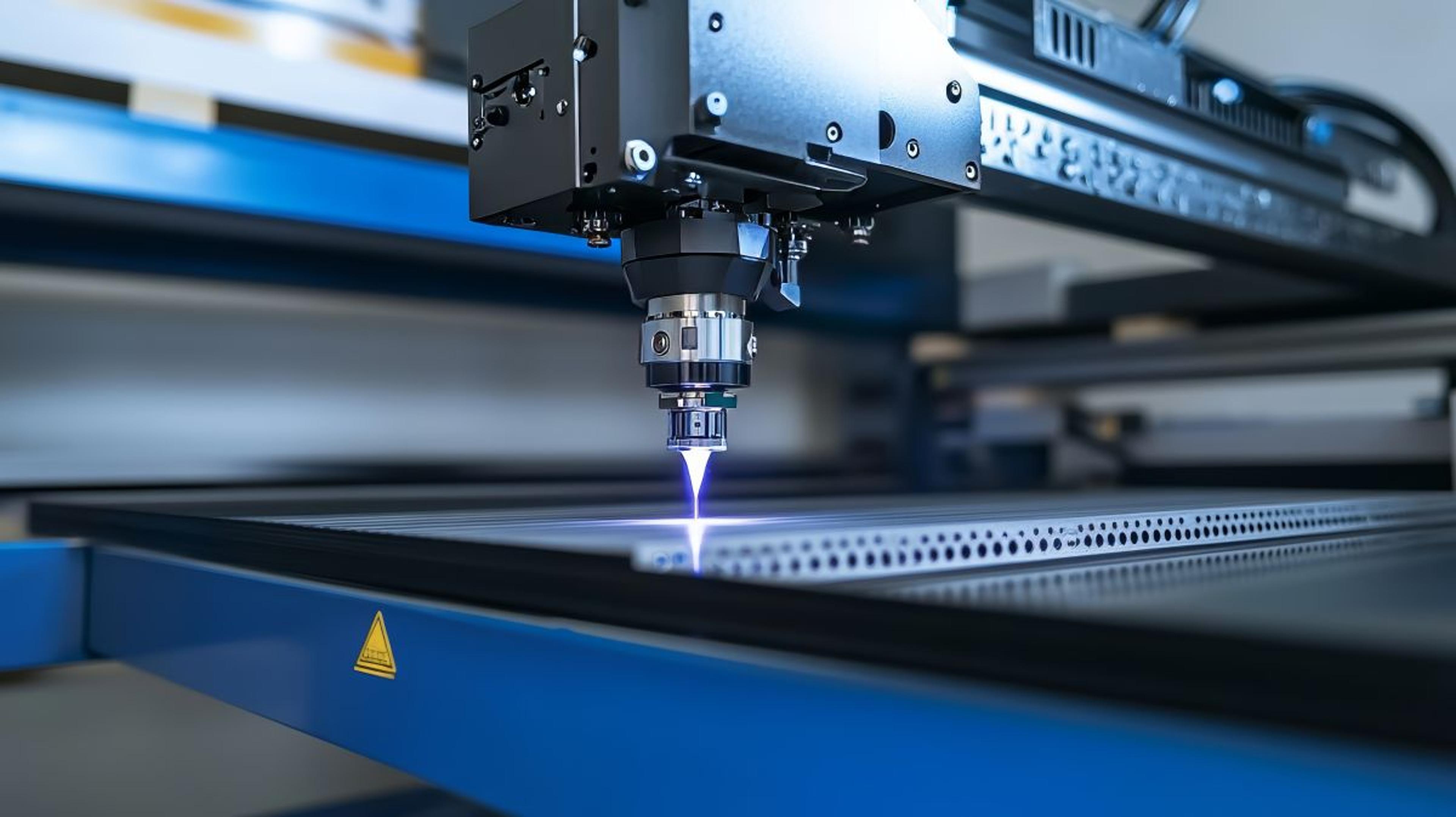

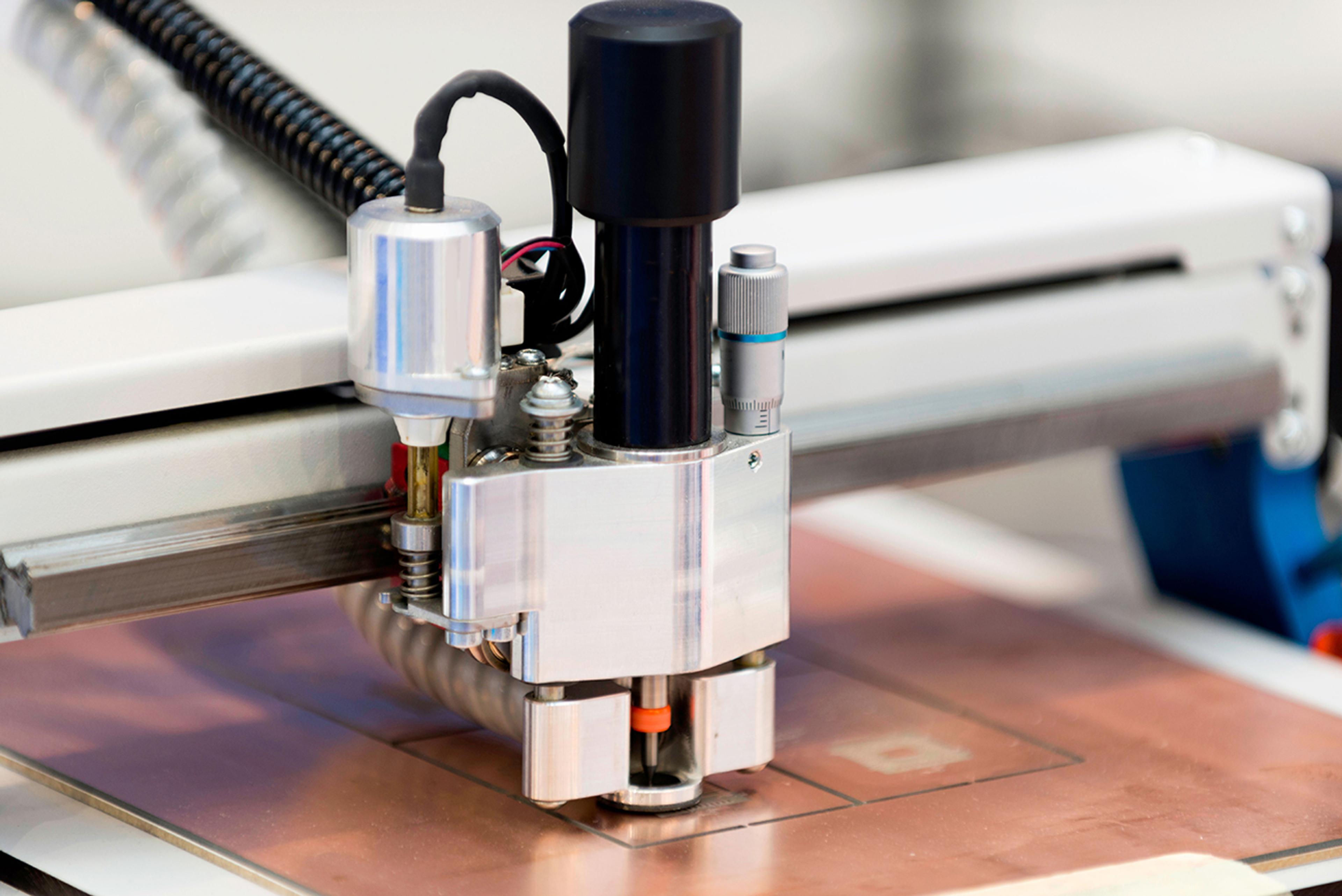

Laser system PCB processing©️ Private

Selecting the Right Modulator: Acousto-Optic vs. Electro-Optic

Both AOMs and EOMs have their own specific advantages. The suitability of either application depends on specific system requirements. While EOMs provide fast rise times and support large apertures with less heating concerns, AOMs excel in sustainable speed, modulation flexibility, and cost-effectiveness.

Key Differences Between AOMs and EOMs in High-Power CO₂ Laser Applications

Extinction Ratio and Contrast Control

  • AOMs offer superior extinction ratios because they spatially separate the diffracted first-order beam from the zero-order beam, ensuring minimal unwanted laser leakage.
  • EOMs rely on polarization changes rather than spatial beam separation, which can result in residual laser power passing through the system. At lower power levels, this minor leakage may not be significant to your system design, but at high power levels, it can introduce unwanted energy into the operation.

Modulation Speed and Repetition Rate

  • AOMs operate at megahertz repetition rates, making them ideal for precision applications, like high-speed via drilling.
  • While EOMs have faster rise times, they typically operate at kilohertz modulation speeds, making them less suitable for applications requiring rapid on/off cycling.

Beam Splitting and Efficiency Considerations

  • Splitting a beam into multiple beams reduces the required power per beam, making a strong case for AOMs, which excel in multi-beam configurations.
  • G&H’s AOM and EOM solutions both provide superior transmission and efficiency compared to market alternatives, ensuring optimized performance regardless of the chosen technology.

Thermal Management and Engineering Considerations

  • Proper cooling design can mitigate thermal challenges in both AOMs and EOMs.
  • AOM designs must take acoustic impedance matching and thermal expansion of materials into account to prevent mechanical stress. Also, the alignment of the optical and acoustic paths represents a crucial step to obtaining effective, precise results.
  • EOMs require careful engineering to avoid optical absorption and thermal runaway, particularly when pulsed at high duty cycles. Additionally, excessive pulsing can cause “ringing” effects in EOMs, a phenomenon where the optical signal shows unwanted oscillations after a rapid change in applied voltage. This can be particularly problematic at high modulation frequencies and can degrade signal quality.

Power Handling and Aperture Size

  • G&H offers large aperture AOM devices designed for higher power handling without exceeding damage thresholds. EOMs can handle high-power laser beams due to increased bulk material thermal stability and robust cooling configurations.
  • A larger beam requires increased RF power to maintain efficiency. Increasing aperture size from 10mm to 20mm doubles the RF energy requirements, affecting cost and thermal management. The larger the beam, the slower the rise time. AOMs are the suitable choice for relatively large beam diameters due to their bulk crystal design known for its thickness and cross-sectional area. This quality allows the interaction between light and sound waves to take place over a wider space within the crystal.
  • While EOMs avoid RF power penalties, they introduce their own challenges, such as increased halfway voltage requirements as aperture size grows.
©️ Private

G&H Provides the Right Solution for Your Application

G&H delivers both AOM and EOM technologies, ensuring customers receive the optimal solution tailored to their specific needs. If maximum power is required for brute force cutting and drilling, an EOM may be the best choice. However, if precision, high-speed modulation and cost-effectiveness are priorities, AOMs offer significant advantages.

Our AOMs are used in the most high-performance via drilling tools in the world, providing unmatched reliability and precision. With a strong portfolio for both EOM and AOM solutions, G&H ensures that customers receive the best-performing technology for their high-power CO₂ laser applications.

Contact G&H today to discuss your application needs and discover the best modulator for your system.
