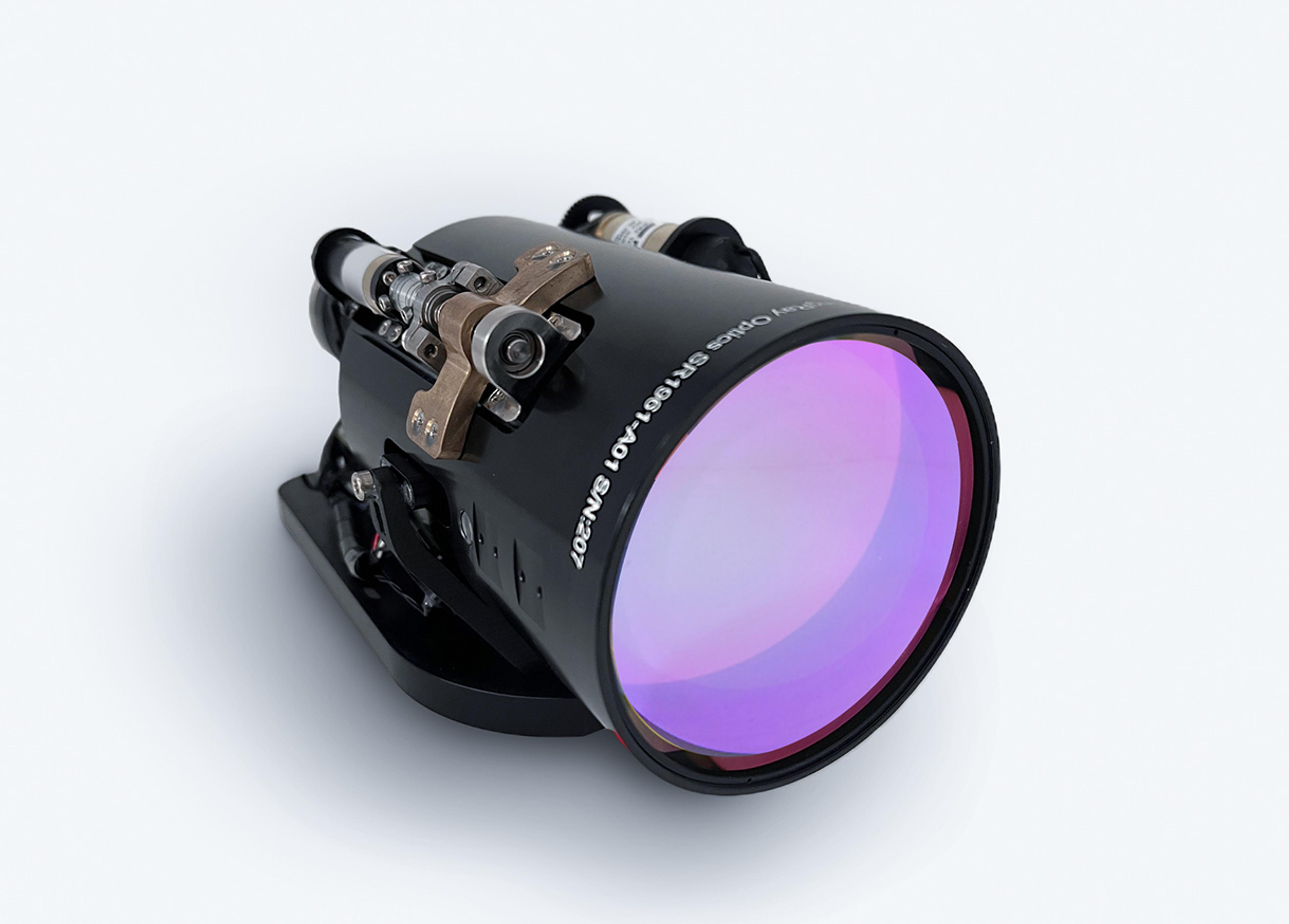

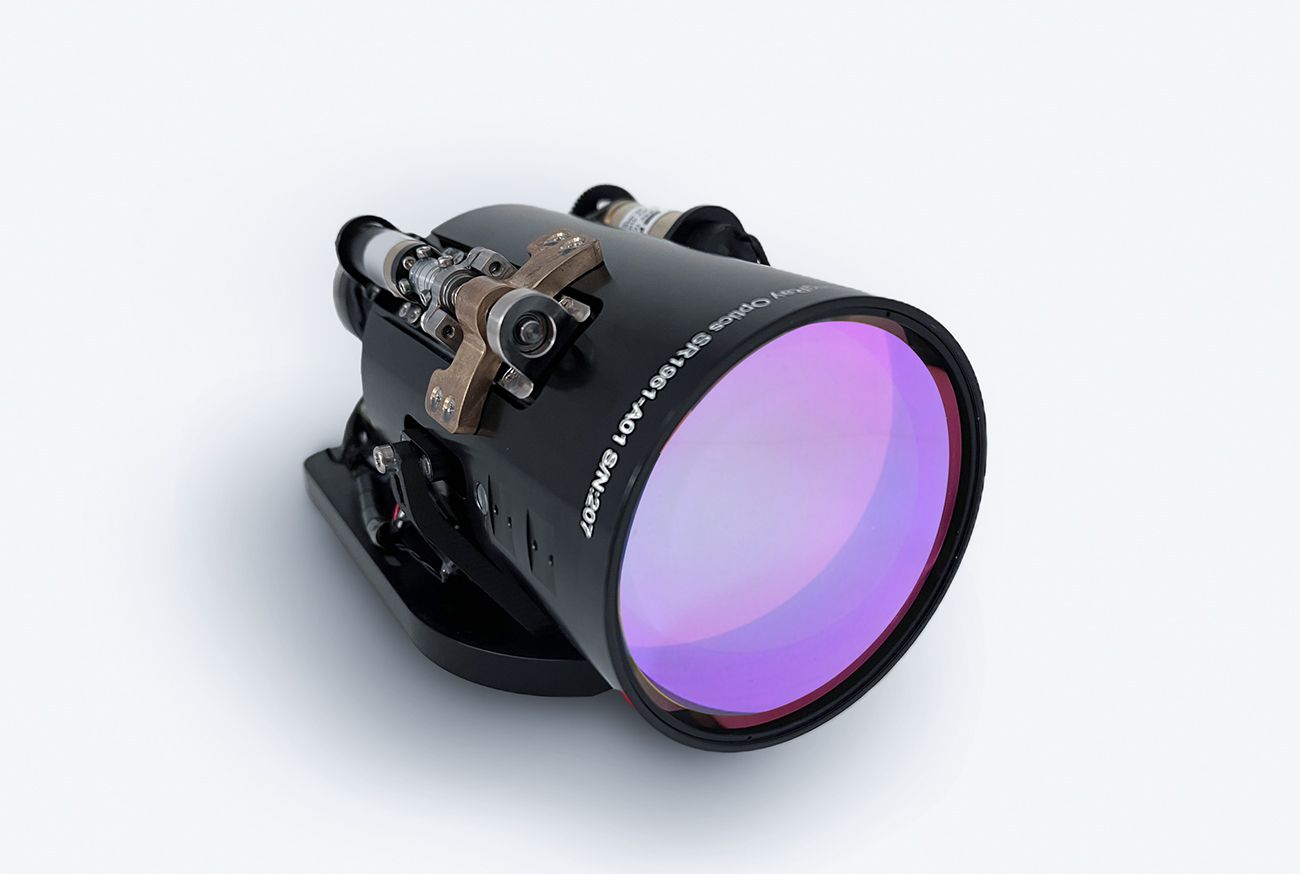

  • G&H | StingRay SR4153-A01 - 40-400mm FireAnt

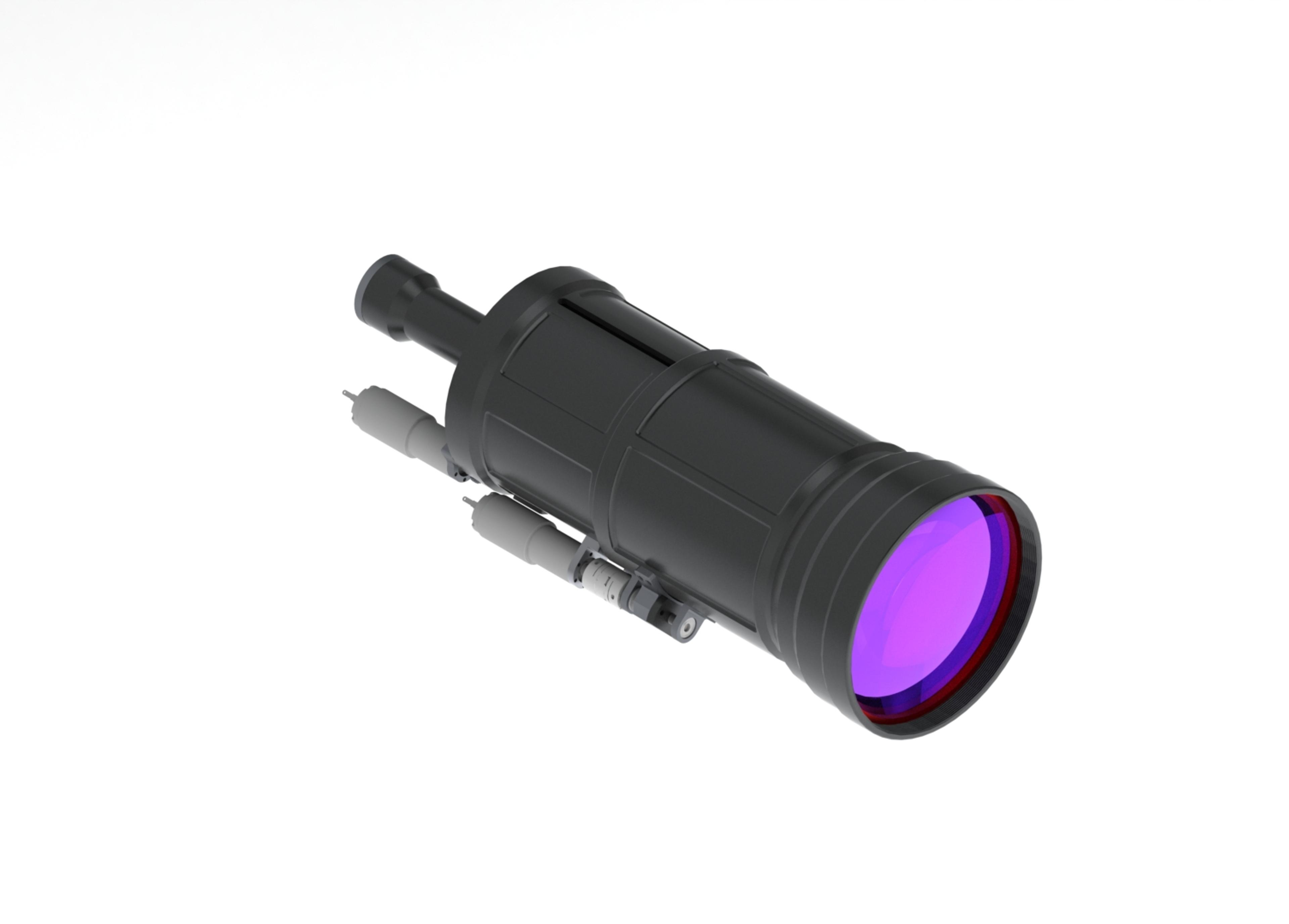

  • G&H | Stingray FireAnt SR5037
1 of 2

FireAnt SWIR Lens Assemblies

The FireAnt Series™ is a shortwave infrared continuous zoom solution leveraging SWIR-specific materials and anti-reflective coatings to assure the highest in-band performance possible, both in terms of transmission and resolution.

Full Product Description
Wavelength:
0.9–1.7 µm
f/#:
5.6 (constant through zoom)
Focal length:
40–400 mm, 80-800 mm
Image Diameter:
16.4 mm diagonal
NFOV:
1.83° FOV (1280, 10 µm pixel), 1.37° FOV (640, 15 µm pixel)
WFOV:
18.18° FOV (1280, 10 µm pixel), 13.7° FOV (640, 15 µm pixel)
Request a quote

Need a product customized?

We can customize our products to fit your requirements.

Find out more

Product description

G&H's FireAnt series is designed with a constant aperture through the zoom range to avoid the loss of critical photons. This approach also means no vignette image as you zoom to narrower field positions, an issue present in many of the off-the-shelf visible-recoat "SWIR" approximations.

Purpose-built for performance in tactical situations, each lens in the series is ruggedized for the harshest applications. Supporting wavelengths from 0.9–1.7 µm, FireAnt lenses are achromatically corrected and are compatible with a wide array of commercially available InGaAs cameras.

Our FireAnt series has a continuous zoom focal length range of 40–400 mm and 80-800 mm, a maximum aperture of f/5.6 (constant through zoom), and an image diameter of 16.4 mm diagonal. It is designed with a constant aperture through the zoom range to avoid the loss of critical photons. This approach also means no vignetted image as you zoom to narrower field positions, an issue present in many of the off-the-shelf visible-recoat SWIR approximations.

All lenses ship standard with our StingWare™ Controller featuring:

  • Metric zoom and focus mechanisms offering positioning precision and repeatability
  • Temperature adjusted focal length and object distance
    queries
  • Active athermalization functionalities

The controller utilizes integrated hardware on the lens cells to minimize system hysteresis to accurately and repeatedly report back exact focal length and object distances. This means never losing steps and no drift over temperature.

Key features

  • Constant F/# through zoom
  • Ruggedized for tactical application
  • Supports up to 16.4 mm HD image formats
  • StingWare™ Controller included on all lenses
  • Metric zoom and focus mechanisms
  • Athermal compensation
  • Fully configurable controller interface
  • Multiple communication protocols
  • Adaptable for power supplies from 12-24 V

Specifications

NameValue
Wavelength0.9–1.7 µm
f/#5.6 (constant through zoom)
Focal length40–400 mm, 80-800 mm
Image Diameter16.4 mm diagonal
NFOV1.83° FOV (1280, 10 µm pixel), 1.37° FOV (640, 15 µm pixel)
WFOV18.18° FOV (1280, 10 µm pixel), 13.7° FOV (640, 15 µm pixel)
Operating temperature-30°–80°C
AR coatingHigh-durability per MIL-PRF-13830
