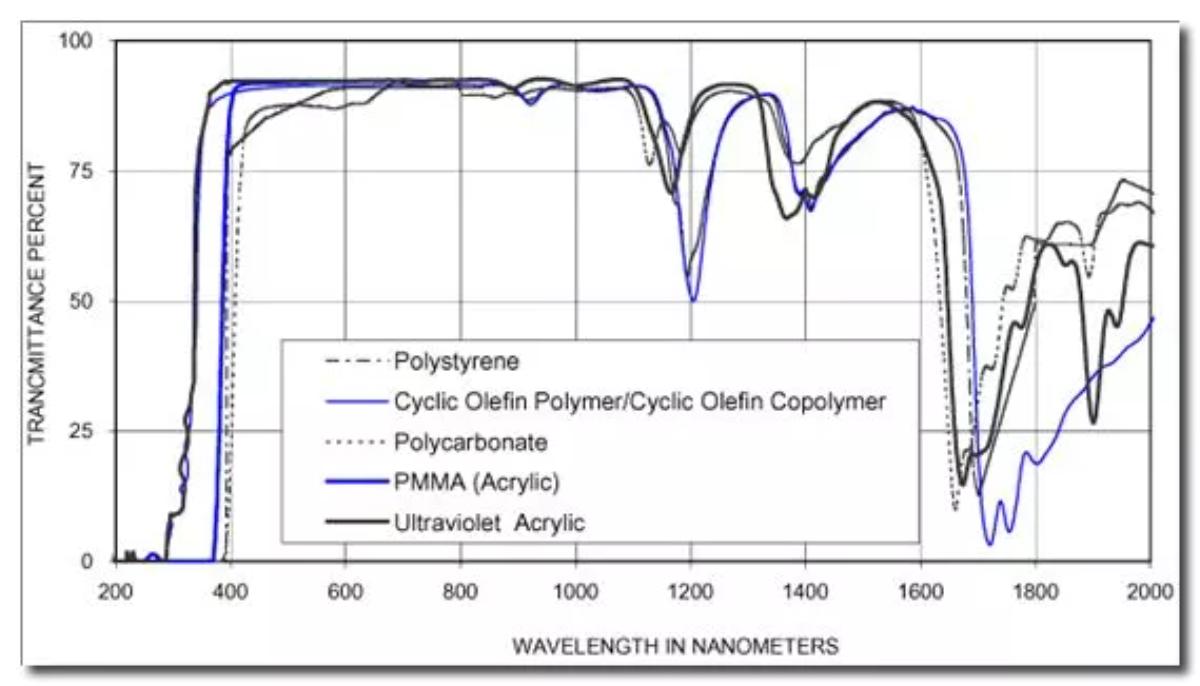

Polymer Optic Transmission Curve - A line graph titled "Polymer Optic Transmission Curve" showing transmittance percent versus wavelength in nanometers (200–2000 nm). The y-axis represents transmittance percent (0% to 100%) and the x-axis represents wavelength in nanometers.  Five different materials are represented by distinct lines:  Polystyrene – shown as a dashed black line.  Cyclic Olefin Polymer/Cyclic Olefin Copolymer – shown as a solid black line.  Polycarbonate – shown as a dotted black line.  PMMA (Acrylic) – shown as a thick blue line.  Ultraviolet Acrylic – shown as a thin solid blue line.  Key observations:  PMMA and UV Acrylic have high transmittance from ~300 nm to ~1400 nm.  COP materials show broad high transmittance with some dips around 1300–1500 nm and again near 1700 nm.  Polycarbonate and Polystyrene exhibit lower transmittance beyond ~1100 nm.  UV Acrylic drops sharply in transmission past 1600 nm.Polymer Optic Transmission Curve©️ Polymer Optic Transmission Curve

Transmission curves for polymer optics

Technical

Transmission is an important parameter of an optic affecting its performance. For polymer optics, transmission is typically limited by Fresnel reflection, scatter, and material absorption.

Fresnel reflection is a function of index of refraction and can be reduced by applying an anti-reflection coating. Scatter is caused by surface roughness, surface imperfections, and material imperfections, and can be reduced by optimizing the manufacturing process.

Absorption is mostly a property of the material. Thermoplastic resins used for injection molding transmit quite well in the visible and near-infrared spectrum, but have very limited transmission in the ultra-violet, mid-wave infrared, and long-wave infrared ranges. The chart below shows typical transmission curves for commonly used thermoplastic materials.

Material transmission can be altered by mixing and blending a base polymer with additives to achieve a specific spectral response. These additives can block this material transmission in certain ranges or modify its color.

Transmission was measured on 1-3 mm thick uncoated witness samples using a PerkinElmer Model 950 UV/VIS spectrophotometer.
