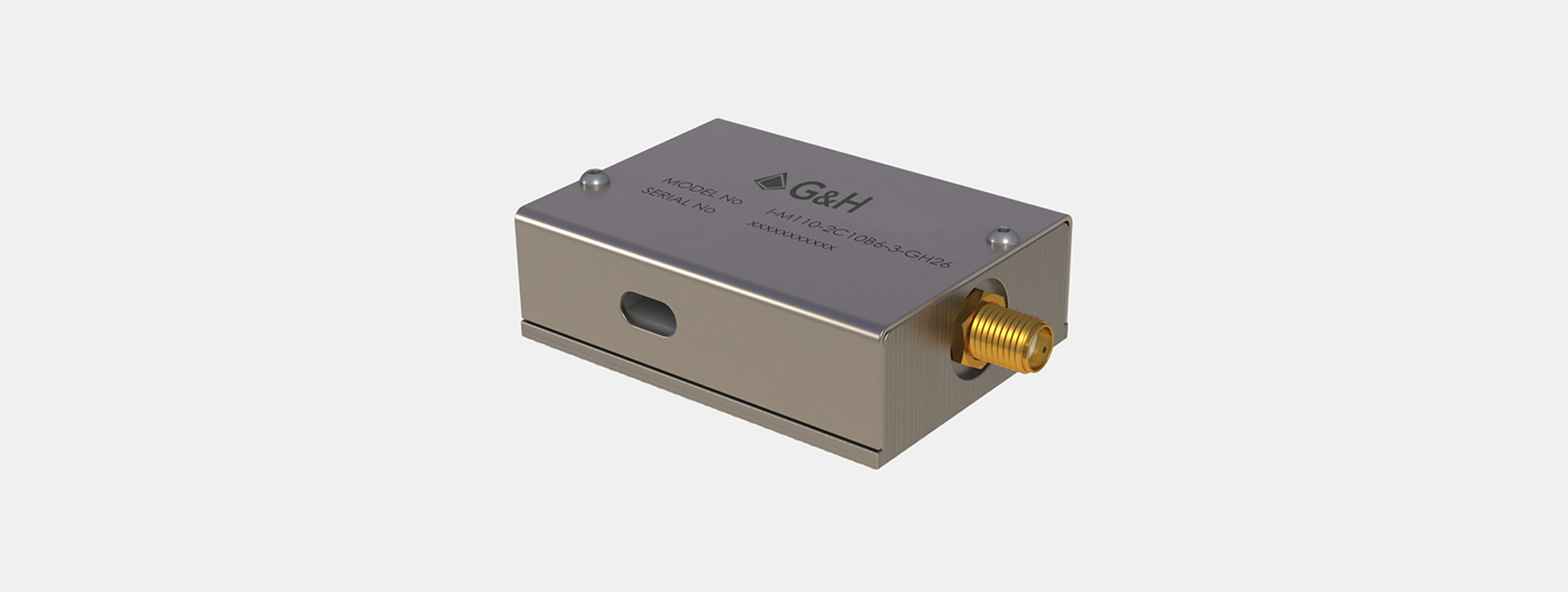

I-M110-2C10B6-3-GH26 product image

I-M110-2C10B6-3-GH26

For use in the 400–540 nm wavelength range, at an operating frequency of 110 MHz with a rise time of 113 ns/mm, and an active aperture up to 2 mm.

Full Product Description
Wavelength:
400–540 nm
Operating frequency:
110 MHz
Active aperture:
2.0 mm
Rise/Fall Time:
113 ns/mm
Request a quote

Need a product customized?

We can customize our products to fit your requirements.

Find out more

Product description

Combining optimum grade crystalline quartz, high-quality optical finishing, high-grade anti-reflection coatings, with novel acoustic management and optomechanical design techniques, this modulator achieves exceptional thermal management while maintaining superior beam quality and high optical throughput.

Key features

  • High optical power handling
  • Low insertion loss
  • Excellent pointing stability
  • Superior beam quality
  • High diffraction efficiency

Specifications

NameValue
Wavelength400–540 nm
Operating frequency110 MHz
Active aperture2.0 mm
Rise/Fall Time113 ns/mm
Optical materialCrystalline Quartz
Optical polarizationLinear, vertical to base
AR coating reflectivity< 0.5% per surface
Damage threshold> 500 MW/cm² (pulsed)
Transmission> 99.0% (single pass)
RF frequency110 MHz
VSWR< 1.2:1
Acoustic modeCompressional
Separation angle10.2 mrad at 532nm
Diffraction efficiency> 85%
RF power< 5W

Order code

Guidance on how to create an order code is available in Downloads below.
