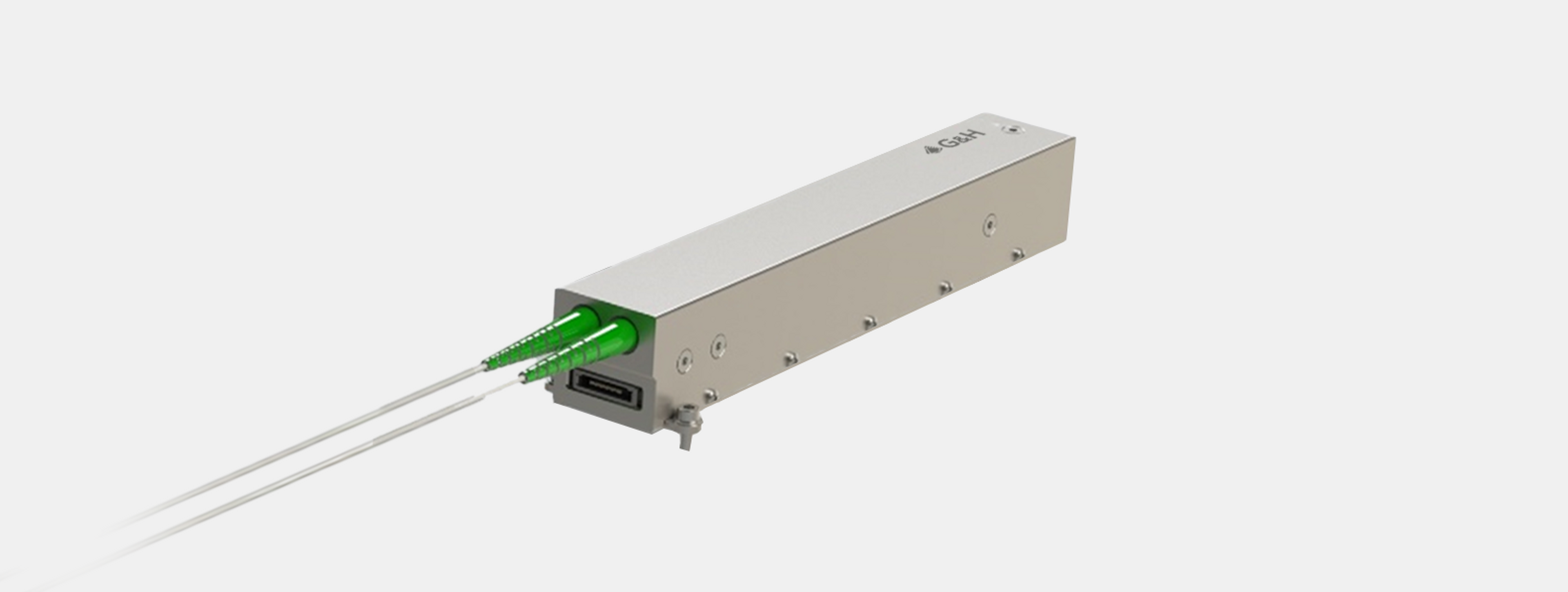

Variable Optical Delay Line

Our variable optical delay line operates at wavelengths 850, 1060, or 1310 nm and provides fast and accurate optical path length control in a compact housing.

Full Product Description
Wavelength:
850, 1060 and 1310 nm
Optical input power:
<100 mW
Optical delay range:
533 ps - 1066 ps
Travel speed:
50 mm/s
Travel resolution:
5 µm
Request a quote

Need a product customized?

We can customize our products to fit your requirements.

Find out more

Product description

Based on a customizable chassis that can be adapted to incorporate additional optical components, the unit is designed to be easily incorporated into any modular optical coherence tomography (OCT) or similar interferometric system architecture.

Optical interface is through a single or dual fiber pigtails which can be specified to length and terminated with all commonly used optical connectors. Internal optical sensors can be used as reference location and travel limit switches.

Our variable optical delay line provides fast and accurate optical path length change in a compact housing. Based on a point-and-return architecture with a customizable chassis that can be adapted to incorporate additional optical components, the unit is designed to be easily incorporated into any modular optical coherence tomography (OCT) system architecture. The optical interface is through a single fixed fiber pigtail which can be specified to any length and terminated with all commonly-used optical connectors.

This unit is designed to be easily incorporated into any modular optical coherence tomography (OCT) or similar interferometric system architecture.

Key features

  • Low insertion loss
  • Compact Design

Specifications

NameValue
Wavelength850, 1060 and 1310 nm
Optical input power<100 mW
Mechanical travel range80 mm
Optical delay range533 ps - 1066 ps
Travel speed50 mm/s
Travel resolution5 µm
Optical delay resolution0.03 ps
Optical IL≤1.6 dB
IL over travel range≤0.5 dB
WDL≤0.6 dB
Temperature dependent IL≤0.6 dB
Return loss>55 dB
Operating temperature+15°C to +55°C
Dimensions177 x 30 x 30 mm

Order code

Guidance on how to create an order code is available in Downloads below.
